Front Brake Pipes (RHD, 4 Wheel Anti-Lock Braking System) ((V) FROMBA000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Front Brake Pipes (RHD, 4 Wheel Anti-Lock Braking System) ((V) FROMBA000001)

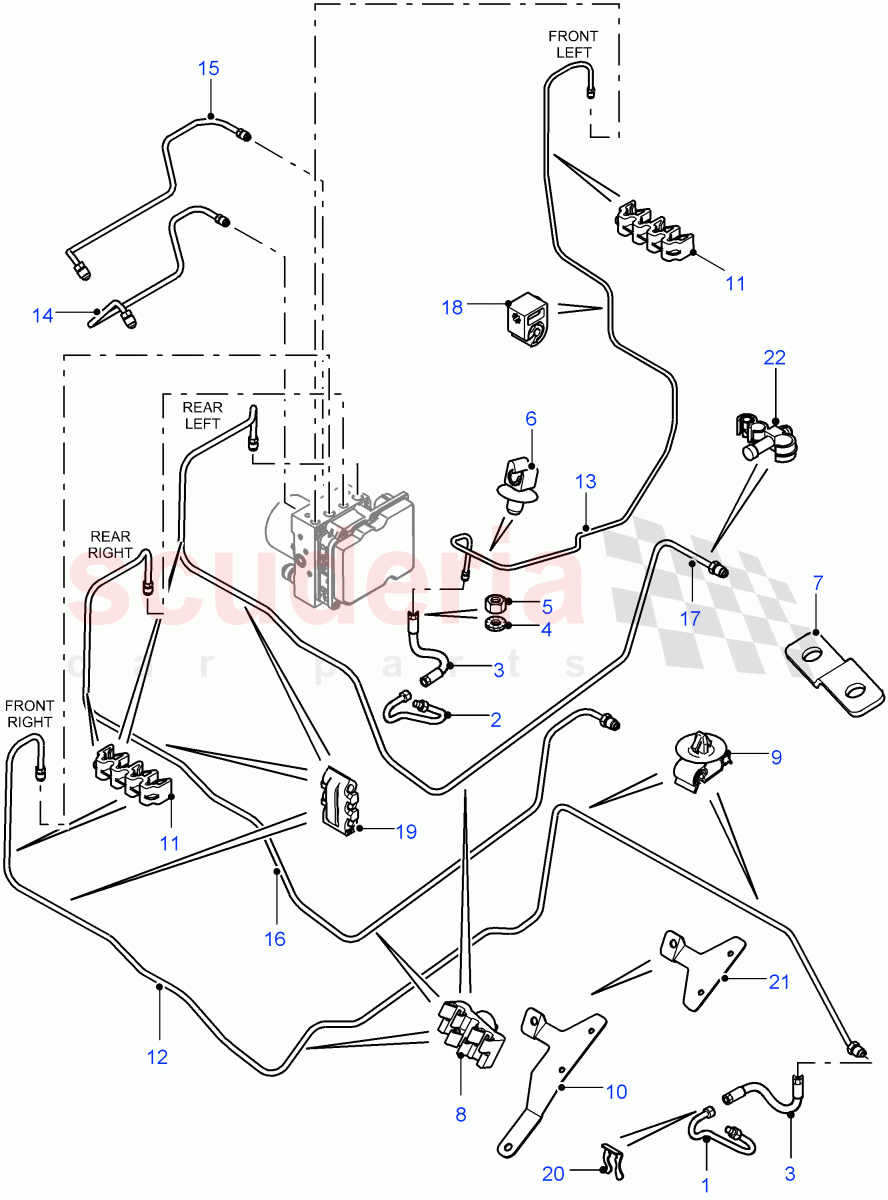

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGB501800	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501790	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SHB500230	HOSE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WF110001L	WASHER - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CRC1487	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NTC9543L	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGI100020	BRACKET - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013761	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100970	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023471	BRACKET - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500040	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021916	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021879	TUBE - BRAKE	Enquire	To Order
	LR033123	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021885	PIPE - BRAKE	Enquire	To Order
	LR028379	PIPE - BRAKE	Enquire	To Order
	LR055943	PIPE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021886	PIPE - BRAKE	Enquire	To Order
	LR033122	PIPE - BRAKE	Enquire	To Order
	LR055941	PIPE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021884	PIPE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021883	PIPE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100570	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100990	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500090	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033082	BRACKET - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055955	CLIP - BRAKE PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	SGB501800	TUBE - BRAKE	SGB501800 TUBE - BRAKE RH, jump hose to caliper	-	1	Enquire
2	SGB501790	TUBE	SGB501790 TUBE LH, jump hose to caliper	-	1	Enquire
3	SHB500230	HOSE - BRAKE	SHB500230 HOSE - BRAKE	-	2	Enquire
4	WF110001L	WASHER - LOCKING	WF110001L WASHER - LOCKING 10mm ID	-	4	Enquire
5	CRC1487	NUT - HEX.	CRC1487 NUT - HEX.	-	4	Enquire
6	NTC9543L	CLIP - BRAKE PIPE	NTC9543L CLIP - BRAKE PIPE	-	3	Enquire
7	SGI100020	BRACKET - BRAKE PIPE	SGI100020 BRACKET - BRAKE PIPE	-	1	Enquire
8	LR013761	CLIP - SPECIAL	LR013761 CLIP - SPECIAL	-	1	Enquire
9	SGK100970	CLIP	SGK100970 CLIP	-	3	Enquire
10	LR023471	BRACKET - BRAKE PIPE	LR023471 BRACKET - BRAKE PIPE To: BA999999	-	1	Enquire
11	SYC500040	CLIP	SYC500040 CLIP 4 Holes	-	2	Enquire
12	LR021916	TUBE - BRAKE	LR021916 TUBE - BRAKE RH, Modulator To Brake Hose	-	1	Enquire
13	LR021879	TUBE - BRAKE	LR021879 TUBE - BRAKE LH, Modulator To Brake Hose / To: BA666665	-	1	Enquire
13	LR033123	TUBE - BRAKE	LR033123 TUBE - BRAKE LH, Modulator To Brake Hose / From: BA666666	-	1	Enquire
14	LR021885	PIPE - BRAKE	LR021885 PIPE - BRAKE Modulator To Brake Master Cylinder, PRIMARY / To: BA821910	-	1	Enquire
14	LR028379	PIPE - BRAKE	LR028379 PIPE - BRAKE Modulator To Brake Master Cylinder, PRIMARY / From: BA821911 / To: EA999999	-	1	Enquire
14	LR055943	PIPE - BRAKE	LR055943 PIPE - BRAKE Modulator To Brake Master Cylinder, PRIMARY / From: FA000001	-	1	Enquire
15	LR021886	PIPE - BRAKE	LR021886 PIPE - BRAKE Modulator To Brake Master Cylinder, SECONDARY / To: BA666665	-	1	Enquire
15	LR033122	PIPE - BRAKE	LR033122 PIPE - BRAKE Modulator To Brake Master Cylinder, SECONDARY / From: BA666666 / To: EA999999	-	1	Enquire
15	LR055941	PIPE - BRAKE	LR055941 PIPE - BRAKE Modulator To Brake Master Cylinder, SECONDARY / From: FA000001	-	1	Enquire
16	LR021884	PIPE - BRAKE	LR021884 PIPE - BRAKE Less Brake Limiting Valve / RH, Modulator To Rear Brake Pipe	-	1	Enquire
17	LR021883	PIPE - BRAKE	LR021883 PIPE - BRAKE Less Brake Limiting Valve / LH, Modulator To Rear Brake Pipe	-	1	Enquire
18	SGK100570	CLIP	SGK100570 CLIP	-	1	Enquire
19	SGK100990	CLIP	SGK100990 CLIP	-	1	Enquire
20	SYC500090	CLIP	SYC500090 CLIP	-	2	Enquire
21	LR033082	BRACKET - BRAKE PIPE	LR033082 BRACKET - BRAKE PIPE From: CA000001	-	1	Enquire
22	LR055955	CLIP - BRAKE PIPE	LR055955 CLIP - BRAKE PIPE 130" Wheelbase, With Engine Traction Control Brake / From: FA000001	-	1	Enquire
