ABS Modulator (4 Wheel Anti-Lock Braking System, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - ABS Modulator (4 Wheel Anti-Lock Braking System, 110" Wheelbase) ((V) FROM7A000001)

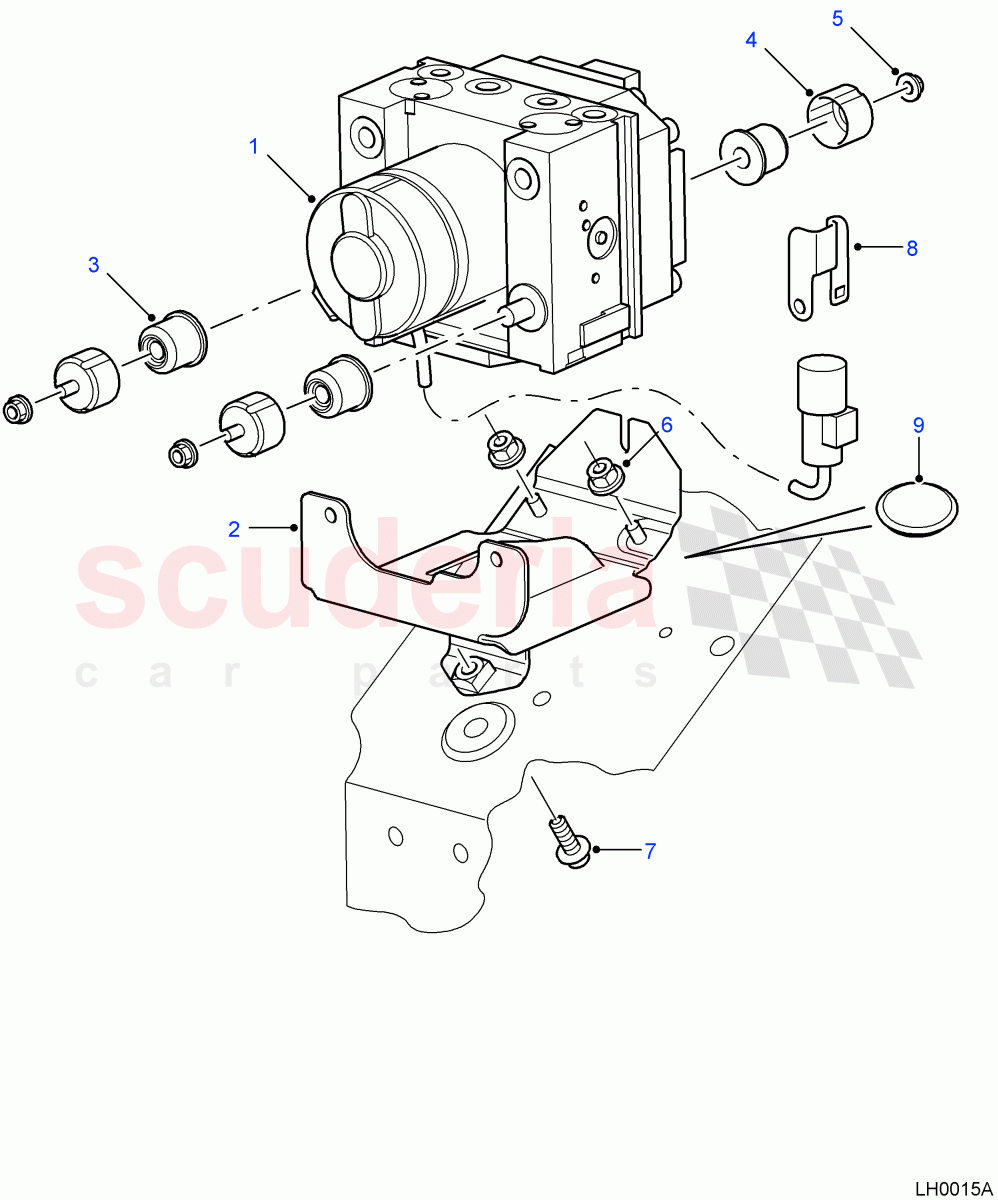

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SRB500390	VALVE - MODULATOR	Enquire	To Order
	SRB500550	VALVE - MODULATOR	Enquire	To Order
	LR008226	VALVE - MODULATOR	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SRU101970	BRACKET	Enquire	To Order
	SRU101920	BRACKET	Enquire	To Order
	LR020607	BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ANR5265	BRACKET AND BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SWM500010	WASHER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106047L	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108167PL	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SRU102200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BNP3996	SEAL - COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	SRB500390	VALVE - MODULATOR	SRB500390 VALVE - MODULATOR New, New Part-Please Check For Reman Version / To: 8A756000	-	1	Enquire
1	SRB500550	VALVE - MODULATOR	SRB500550 VALVE - MODULATOR New, New Part-Please Check For Reman Version / From: 8A756001 / To: AA999999	-	1	Enquire
1	LR008226	VALVE - MODULATOR	LR008226 VALVE - MODULATOR Exchange Part (Re-Manufactured) / To: 8A756000	-	1	Enquire
1	LR011784	VALVE - MODULATOR	LR011784 VALVE - MODULATOR Exchange Part (Re-Manufactured) / From: 8A756001 / To: AA999999	-	1	Enquire
1	LR020606	VALVE - MODULATOR	LR020606 VALVE - MODULATOR With Engine Traction Control Brake / BOSCH / From: BA000001 / To: BA999999	-	1	Enquire
1	LR031338	VALVE - MODULATOR	LR031338 VALVE - MODULATOR With Engine Traction Control Brake / BOSCH / From: CA000001 / To: EA999999	-	1	Enquire
1	LR055940	VALVE - MODULATOR	LR055940 VALVE - MODULATOR With Engine Traction Control Brake / BOSCH / From: FA000001	-	1	Enquire
2	SRU101970	BRACKET	SRU101970 BRACKET LHD / To: AA999999	-	1	Enquire
2	SRU101920	BRACKET	SRU101920 BRACKET RHD / To: AA999999	-	1	Enquire
2	LR020607	BRACKET	LR020607 BRACKET RHD / From: BA000001	-	1	Enquire
2	LR020608	BRACKET	LR020608 BRACKET LHD / From: BA000001	-	1	Enquire
3	ANR5265	BRACKET AND BUSH	ANR5265 BRACKET AND BUSH	-	3	Enquire
4	SWM500010	WASHER - CUP	SWM500010 WASHER - CUP	-	3	Enquire
5	FN106047L	NUT - FLANGED	FN106047L NUT - FLANGED M6	-	3	Enquire
6	FN108046	NUT - HEX.	FN108046 NUT - HEX. Flanged Head, M8	-	2	Enquire
7	FS108167PL	BOLT	FS108167PL BOLT Flanged Head, M8 X 16	-	1	Enquire
8	SRU102200	BRACKET	SRU102200 BRACKET	-	1	Enquire
9	BNP3996	SEAL - COVER	BNP3996 SEAL - COVER Less Anti-Spin Traction System / Mounting Bracket / From: FA000001	-	2	Enquire
