Land Rover Defender (2007-2016) - Master Cylinder & Servo (Less Anti-Lock Braking System) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SJC100460 MASTER CYLINDER $420.22 To Order
LR013018 CYLINDER - MASTER $390.86 To Order
Photo Part No Description Price (each) Stock
SJJ100351 KIT - BRAKE FLUID RESERVOIR $88.48 To Order
Photo Part No Description Price (each) Stock
SJL100200 FILLER CAP AND WARNING INDICATOR $30.78 To Order
Photo Part No Description Price (each) Stock
LR013488 BOOSTER - BRAKE $388.68 To Order
Photo Part No Description Price (each) Stock
NY108041 Nut - Hex. $0.42 To Order
Photo Part No Description Price (each) Stock
SQQ100000 GROMMET $23.11 To Order
Photo Part No Description Price (each) Stock
SQB500290 HOSE - VACUUM $14.20 To Order
SQB500270 HOSE - VACUUM $10.32 To Order
SQB500330 HOSE - VACUUM $32.81 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
DYC101410L CLIP - HOSE $1.12 To Order
Photo Part No Description Price (each) Stock
568680 STRAP - CABLE $2.26 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.88 IN STOCK
Photo Part No Description Price (each) Stock
SQV500130 CLIP - BRAKE PIPE $1.09 To Order
Photo Part No Description Price (each) Stock
SIH100010 ADAPTOR $247.47 To Order
Photo Part No Description Price (each) Stock
YBH10005 CLIP $7.05 To Order
View All

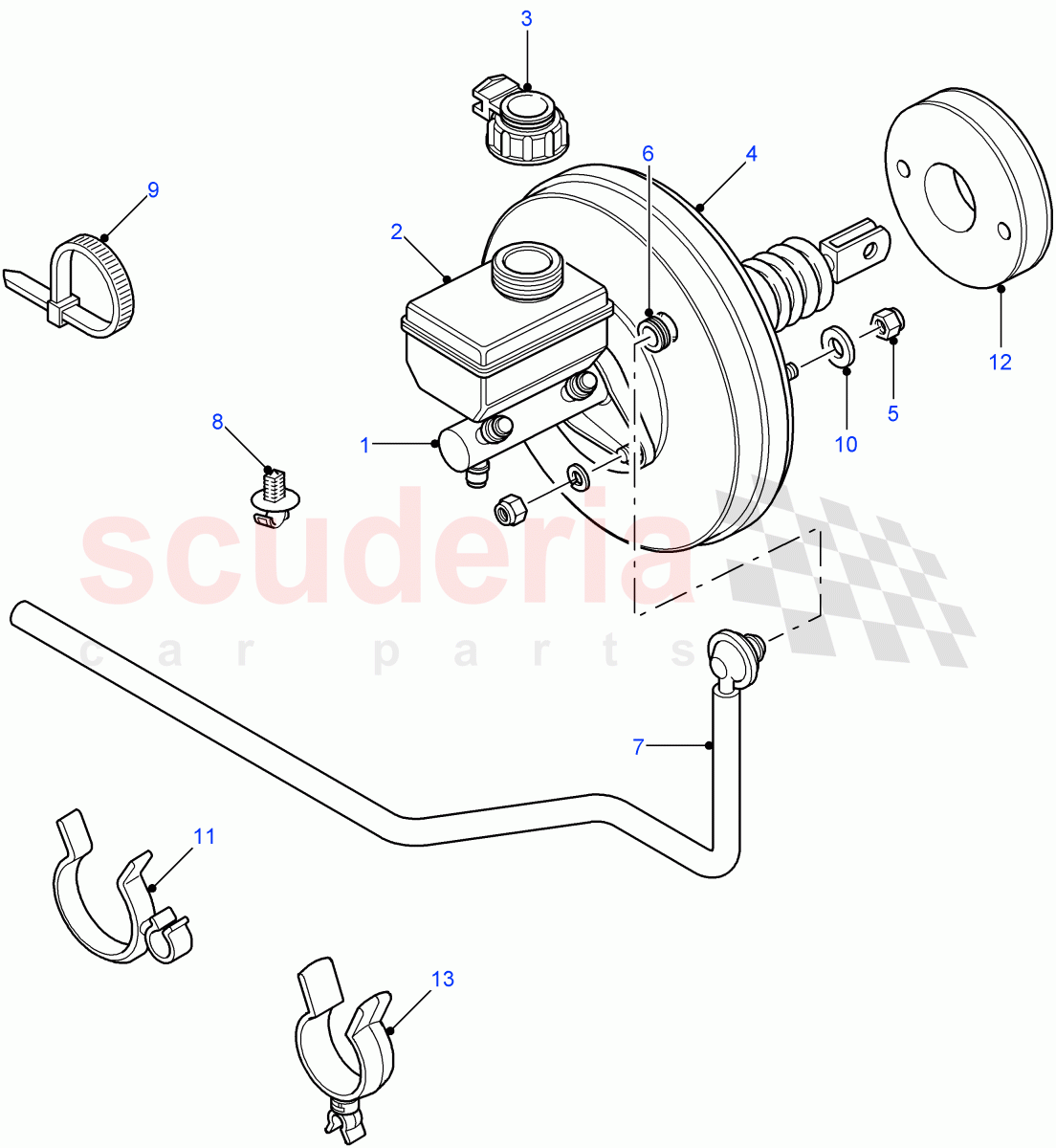

Master Cylinder & Servo (Less Anti-Lock Braking System) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 SJC100460
MASTER CYLINDER
To: 8A999999 		$420.22 1
1 LR013018
CYLINDER - MASTER
From: 9A000001 		$390.86 1
2 SJJ100351
KIT - BRAKE FLUID RESERVOIR 		$88.48 1
3 SJL100200
FILLER CAP AND WARNING INDICATOR 		$30.78 1
4 LR013488
BOOSTER - BRAKE 		$388.68 1
5 NY108041
Nut - Hex.
M8, nyloc 		$0.42 4
6 SQQ100000
GROMMET 		$23.11 1
7 SQB500290
HOSE - VACUUM
RHD / To: 7A748125 		$14.20 1
7 SQB500270
HOSE - VACUUM
LHD / To: 9A888887 		$10.32 1
7 SQB500330
HOSE - VACUUM
RHD / From: 7A748126 / To: 9A888887 		$32.81 1
7 LR016778
HOSE - VACUUM
LHD / From: 9A888888 / To: BA999999 		$15.99 1
7 LR016779
HOSE - VACUUM
RHD / From: 9A888888 / To: BA999999 		$29.93 1
7 LR029627
HOSE - VACUUM
RHD / From: CA000001 		$32.79 1
7 LR029626
HOSE - VACUUM
LHD / From: CA000001 		$32.79 1
8 DYC101410L
CLIP - HOSE 		$1.12 1
9 568680
STRAP - CABLE 		$2.26 3
10 WA108056
WASHER
8MM
IN STOCK 		$0.88 4
11 SQV500130
CLIP - BRAKE PIPE
Secures Vac Hose And Heat Sleeve 		$1.09 1
12 SIH100010
ADAPTOR 		$247.47 1
13 YBH10005
CLIP
To Secure The Brake Servo Vacuum Hose To The Expansion Tank Bottom Hose 		$7.05 2
