Rear Brake Discs And Calipers (4 Wheel Anti-Lock Braking System) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Brake Discs And Calipers (4 Wheel Anti-Lock Braking System) ((V) FROM7A000001)

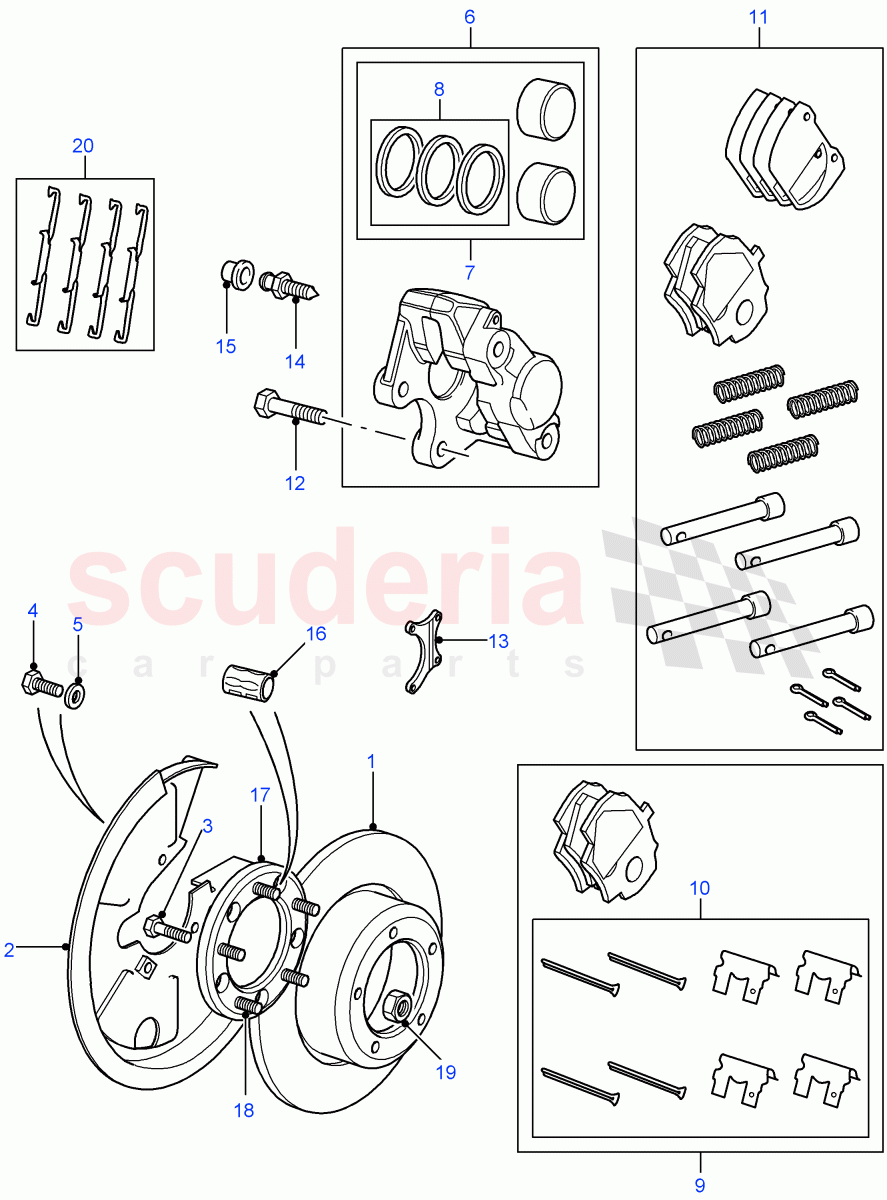

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FTC1381	DISC - BRAKE - SOLID	Enquire	To Order
	SDB000330	DISC - BRAKE - SOLID	Enquire	To Order
	LR017953	DISC - BRAKE - SOLID	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SMD100261	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	SMD100271	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR017960	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082331	BOLT	Enquire	To Order
	LR082331	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GG106201	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2215L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMC500110	CALIPER	Enquire	To Order
	SMC500240	CALIPER	Enquire	To Order
	SMC500260	CALIPER - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SEE500140	PISTON	Enquire	To Order
	SEE500130	PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G8587L	KIT - CALIPER SEAL	Enquire	To Order
	SMN000060	KIT - CALIPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032954	KIT - BRAKE LINING	Enquire	To Order
	LR032954	KIT - BRAKE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC8574	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SFP000250	KIT - BRAKE SHOE AND LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP500090	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017513	BRACKET	Enquire	To Order
	LR017513	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMG000010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	594091	CAP - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029522	CLIP - WIRING	Enquire	To Order
	LR029522	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC1379	RING - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TD106041	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070898	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	FTC1381	DISC - BRAKE - SOLID	FTC1381 DISC - BRAKE - SOLID 90" Wheelbase / To: 9A777776	-	2	Enquire
1	SDB000330	DISC - BRAKE - SOLID	SDB000330 DISC - BRAKE - SOLID 110" And 130" Wheelbase / To: 9A777776	-	2	Enquire
1	LR017953	DISC - BRAKE - SOLID	LR017953 DISC - BRAKE - SOLID 90" Wheelbase / From: 9A777777	-	2	Enquire
1	LR018026	DISC - BRAKE - SOLID	LR018026 DISC - BRAKE - SOLID 110" And 130" Wheelbase / From: 9A777777	-	2	Enquire
2	SMD100261	SHIELD - BRAKE DISC SPLASH	SMD100261 SHIELD - BRAKE DISC SPLASH RH / To: 9A777776	-	1	Enquire
2	SMD100271	SHIELD - BRAKE DISC SPLASH	SMD100271 SHIELD - BRAKE DISC SPLASH LH / To: 9A777776	-	1	Enquire
2	LR017960	SHIELD - BRAKE DISC SPLASH	LR017960 SHIELD - BRAKE DISC SPLASH RH / From: 9A777777	-	1	Enquire
2	LR017961	SHIELD - BRAKE DISC SPLASH	LR017961 SHIELD - BRAKE DISC SPLASH LH / From: 9A777777	-	1	Enquire
3	LR082331	BOLT	LR082331 BOLT M10, shield disc to disc solid / To: GA481815	-	10	Enquire
3	LR082331	BOLT	LR082331 BOLT M10, shield disc to disc solid / From: GA481816	-	10	Enquire
4	GG106201	SCREW	GG106201 SCREW M6 X 20MM	-	6	Enquire
5	2215L	WASHER	2215L WASHER	-	6	Enquire
6	SMC500110	CALIPER	SMC500110 CALIPER 90" Wheelbase / RH, New	-	1	Enquire
6	SMC500240	CALIPER	SMC500240 CALIPER 90" Wheelbase / LH, New	-	1	Enquire
6	SMC500260	CALIPER - BRAKE	SMC500260 CALIPER - BRAKE 110" And 130" Wheelbase / LH, New	-	1	Enquire
6	SMC500270	CALIPER	SMC500270 CALIPER 110" And 130" Wheelbase / RH, New	-	1	Enquire
7	SEE500140	PISTON	SEE500140 PISTON 90" Wheelbase	-	1	Enquire
7	SEE500130	PISTON	SEE500130 PISTON 110" And 130" Wheelbase	-	1	Enquire
8	8G8587L	KIT - CALIPER SEAL	8G8587L KIT - CALIPER SEAL 90" Wheelbase	-	1	Enquire
8	SMN000060	KIT - CALIPER SEAL	SMN000060 KIT - CALIPER SEAL 110" And 130" Wheelbase	-	1	Enquire
9	LR032954	KIT - BRAKE LINING	LR032954 KIT - BRAKE LINING 90" Wheelbase / To: BA999999	-	1	Enquire
9	LR032954	KIT - BRAKE LINING	LR032954 KIT - BRAKE LINING 90" Wheelbase / From: CA000001	-	1	Enquire
10	STC8574	KIT - CALIPER BRAKE PAD MTG PARTS	STC8574 KIT - CALIPER BRAKE PAD MTG PARTS 90" Wheelbase / Rear	-	1	Enquire
11	SFP000250	KIT - BRAKE SHOE AND LINING	SFP000250 KIT - BRAKE SHOE AND LINING 110" And 130" Wheelbase	-	1	Enquire
12	SYP500090	BOLT	SYP500090 BOLT caliper, M12 x 35	-	4	Enquire
13	LR017513	BRACKET	LR017513 BRACKET To: 9A777776	-	2	Enquire
13	LR017513	BRACKET	LR017513 BRACKET From: 9A777777	-	2	Enquire
14	SMG000010	SCREW	SMG000010 SCREW	-	2	Enquire
15	594091	CAP - PROTECTIVE	594091 CAP - PROTECTIVE	-	2	Enquire
16	LR029522	CLIP - WIRING	LR029522 CLIP - WIRING antilock brake system sensor / To: BA888887	-	2	Enquire
16	LR029522	CLIP - WIRING	LR029522 CLIP - WIRING antilock brake system sensor / From: BA888888	-	2	Enquire
17	FTC1379	RING - BRAKE	FTC1379 RING - BRAKE	-	2	Enquire
18	TD106041	Stud	TD106041 Stud	-	10	Enquire
19	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6, nyloc	-	10	Enquire
20	LR070898	KIT - CALIPER BRAKE PAD MTG PARTS	LR070898 KIT - CALIPER BRAKE PAD MTG PARTS 110" And 130" Wheelbase / kit Of 4 Pieces / From: AA781953	-	1	Enquire
