Electrical Wiring - Chassis ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Electrical Wiring - Chassis ((V) FROMAA000001)

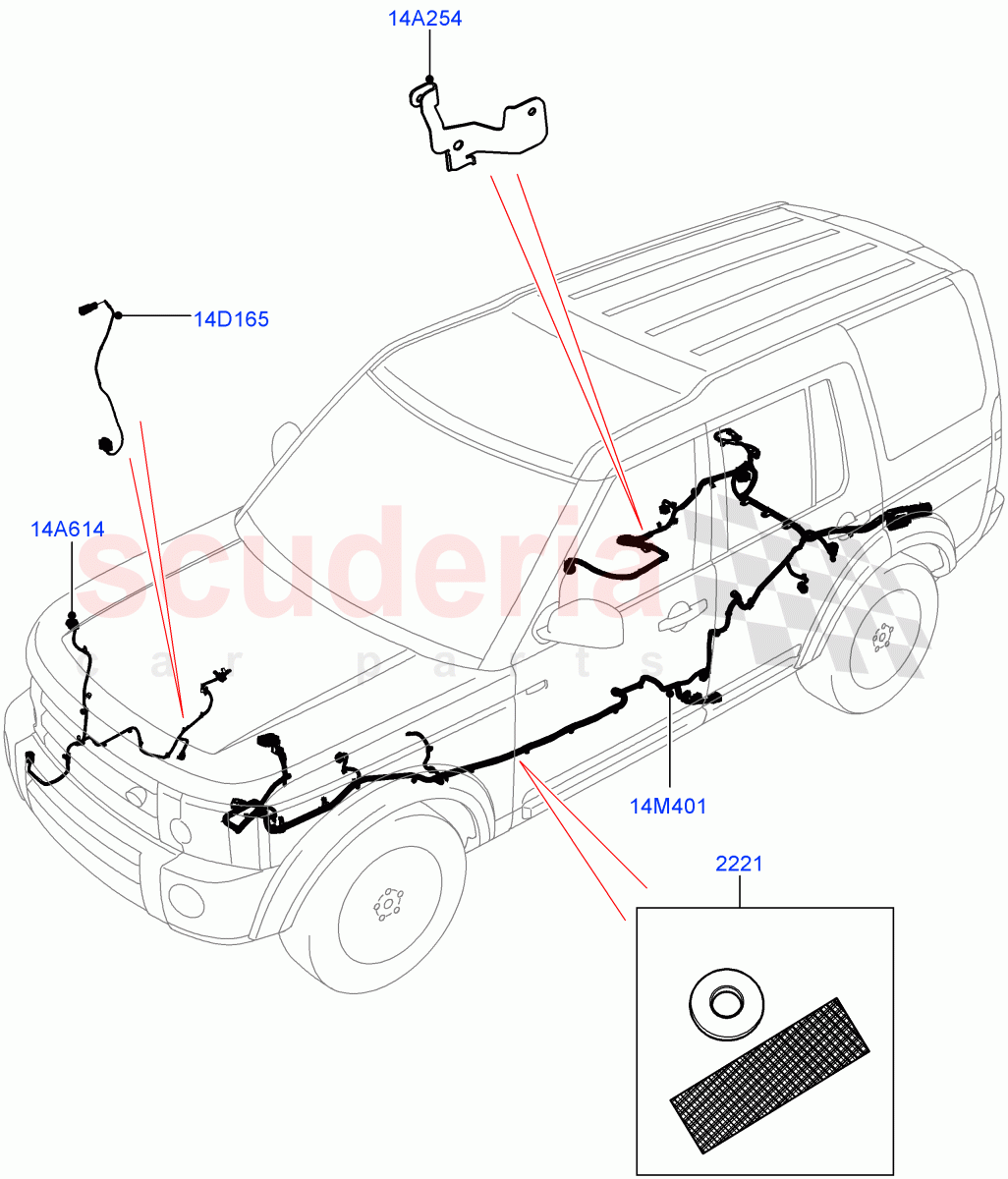

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR059307	KIT - TERMINAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070093	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015903	WIRE	Enquire	To Order
	LR020798	WIRE	Enquire	To Order
	LR029811	WIRING - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030017	WIRING - AIR SUSPENSION	Enquire	To Order
	LR064255	WIRING - REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015851	WIRING - MAIN	Enquire	To Order
	LR015852	WIRING - MAIN	Enquire	To Order
	LR015853	WIRING - MAIN	Enquire	To Order

...and 20 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
14A254	LR070093	BRACKET - WIRING	LR070093 BRACKET - WIRING With Diesel Exh Fluid Emission Tank / From: GA000001	-	1	Enquire
14A614	LR015903	WIRE	LR015903 WIRE With Four Corner Air Suspension / Air Suspension / From: AA000001 / To: AA999999	-	1	Enquire
14A614	LR020798	WIRE	LR020798 WIRE With Four Corner Air Suspension / Air Suspension / From: BA000001 / To: BA999999	-	1	Enquire
14A614	LR029811	WIRING - AIR SUSPENSION	LR029811 WIRING - AIR SUSPENSION With Four Corner Air Suspension / Air Suspension / From: CA000001	-	1	Enquire
14D165	LR030017	WIRING - AIR SUSPENSION	LR030017 WIRING - AIR SUSPENSION With Four Corner Air Suspension / Height Sensor Lead, Service Fix / From: AA000001	-	1	Enquire
14D165	LR064255	WIRING - REPAIR	LR064255 WIRING - REPAIR With Standard Duty Coil Spring Susp / Height Sensor Lead, Service Fix / From: AA000001	-	1	Enquire
14M401	LR015851	WIRING - MAIN	LR015851 WIRING - MAIN Lion Diesel 2.7 V6 (140KW), Rear Axle Open Style Differential, With Standard Duty Coil Spring Susp / From: AA000001 / To: AA551483	-	1	Enquire
14M401	LR015852	WIRING - MAIN	LR015852 WIRING - MAIN Cologne V6 4.0 EFI (SOHC), Rear Axle Locking Differential, With Four Corner Air Suspension / From: AA000001 / To: AA551483	-	1	Enquire
14M401	LR015853	WIRING - MAIN	LR015853 WIRING - MAIN 3.0L 24V DOHC V6 TC Diesel, Rear Axle Locking Differential, With Four Corner Air Suspension / From: AA000001 / To: AA551483	-	1	Enquire
14M401	LR015854	WIRING - MAIN	LR015854 WIRING - MAIN 5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Open Style Differential, With Four Corner Air Suspension / From: AA000001 / To: AA551483	-	1	Enquire
14M401	LR015855	WIRING - MAIN	LR015855 WIRING - MAIN Lion Diesel 2.7 V6 (140KW), Rear Axle Open Style Differential, With Four Corner Air Suspension / From: AA000001 / To: AA551483	-	1	Enquire
14M401	LR021135	WIRING - MAIN	LR021135 WIRING - MAIN Lion Diesel 2.7 V6 (140KW), Rear Axle Open Style Differential, With Standard Duty Coil Spring Susp / From: BA551484 / To: BA999999	-	1	Enquire
14M401	LR021136	WIRING - MAIN	LR021136 WIRING - MAIN 5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Locking Differential, With Four Corner Air Suspension / From: BA551484 / To: BA999999	-	1	Enquire
14M401	LR021137	WIRING - MAIN	LR021137 WIRING - MAIN 3.0L 24V DOHC V6 TC Diesel, Rear Axle Locking Differential, With Four Corner Air Suspension / From: BA551484 / To: BA999999	-	1	Enquire
14M401	LR021138	WIRING - MAIN	LR021138 WIRING - MAIN 5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Open Style Differential, With Four Corner Air Suspension / From: BA551484 / To: BA999999	-	1	Enquire
14M401	LR021139	WIRING - MAIN	LR021139 WIRING - MAIN 3.0L 24V DOHC V6 TC Diesel, Rear Axle Open Style Differential, With Four Corner Air Suspension / From: BA551484 / To: BA999999	-	1	Enquire
14M401	LR029812	WIRING - CHASSIS	LR029812 WIRING - CHASSIS 5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Locking Differential / From: CA000001	-	1	Enquire
14M401	LR029813	WIRING - CHASSIS	LR029813 WIRING - CHASSIS 3.0 V6 Diesel, Rear Axle Locking Differential, With Four Corner Air Suspension / From: CA000001	-	1	Enquire
14M401	LR029814	WIRING - CHASSIS	LR029814 WIRING - CHASSIS 5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Open Style Differential / From: CA000001	-	1	Enquire
14M401	LR029815	WIRING - CHASSIS	LR029815 WIRING - CHASSIS 3.0 V6 Diesel, Rear Axle Open Style Differential, With Four Corner Air Suspension / From: CA000001	-	1	Enquire
14M401	LR041724	WIRING - CHASSIS	LR041724 WIRING - CHASSIS 3.0 V6 Diesel, Rear Axle Open Style Differential, With Standard Duty Coil Spring Susp / From: DA000001	-	1	Enquire
14M401	LR029813	WIRING - CHASSIS	LR029813 WIRING - CHASSIS Lion Diesel 2.7 V6 (140KW), Rear Axle Locking Differential / From: CA000001 / To: CA999999	-	1	Enquire
14M401	LR029815	WIRING - CHASSIS	LR029815 WIRING - CHASSIS Lion Diesel 2.7 V6 (140KW), Rear Axle Open Style Differential / From: CA000001 / To: CA999999	-	1	Enquire
14M401	LR071607	WIRING - CHASSIS	LR071607 WIRING - CHASSIS 3.0 V6 D Gen2 Twin Turbo, Rear Axle Open Style Differential, With Diesel Exh Fluid Emission Tank, With Standard Duty Coil Spring Susp / From: GA000001 / To: GA813784	-	1	Enquire
14M401	LR071608	WIRING - CHASSIS	LR071608 WIRING - CHASSIS 3.0 V6 D Gen2 Twin Turbo, Rear Axle Locking Differential, With Diesel Exh Fluid Emission Tank, With Four Corner Air Suspension / From: GA000001 / To: GA813784	-	1	Enquire
14M401	LR071609	WIRING - CHASSIS	LR071609 WIRING - CHASSIS 3.0 V6 D Gen2 Twin Turbo, Rear Axle Open Style Differential, With Diesel Exh Fluid Emission Tank, With Four Corner Air Suspension / From: GA000001 / To: GA813784	-	1	Enquire
14M401	LR084659	WIRING - CHASSIS	LR084659 WIRING - CHASSIS 3.0 V6 D Gen2 Twin Turbo, Rear Axle Open Style Differential, With Diesel Exh Fluid Emission Tank, With Standard Duty Coil Spring Susp / From: GA813785	-	1	Enquire
14M401	LR084660	WIRING - CHASSIS	LR084660 WIRING - CHASSIS 3.0 V6 D Gen2 Twin Turbo, Rear Axle Locking Differential, With Diesel Exh Fluid Emission Tank, With Four Corner Air Suspension / From: GA813785	-	1	Enquire
14M401	LR084661	WIRING - CHASSIS	LR084661 WIRING - CHASSIS 3.0 V6 D Gen2 Twin Turbo, Rear Axle Open Style Differential, With Diesel Exh Fluid Emission Tank, With Four Corner Air Suspension / From: GA813785	-	1	Enquire
2221	LR059307	KIT - TERMINAL	LR059307 KIT - TERMINAL From: EA000001	-	1	Enquire
