Find Your Part

Switches (Door) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

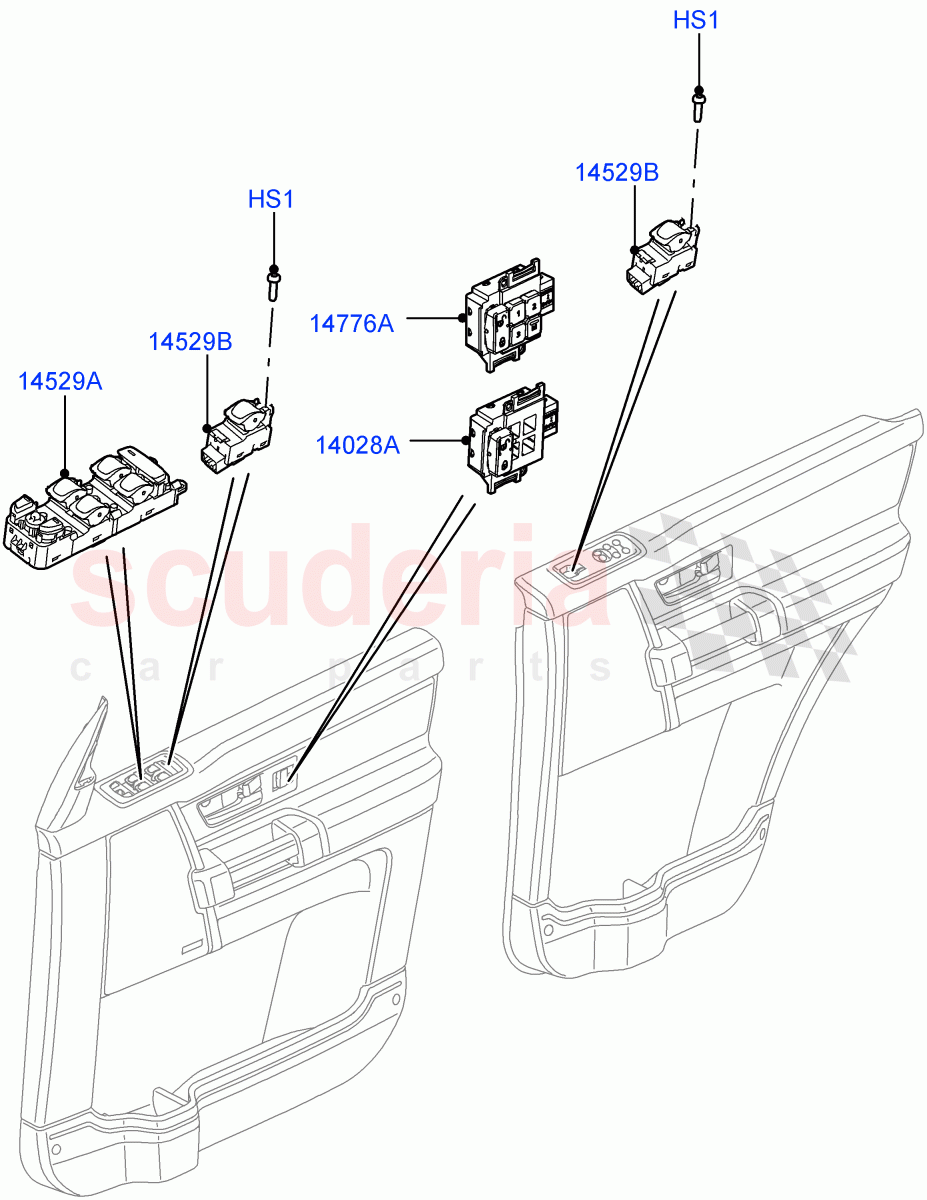

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Switches (Door) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019748	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013940	SWITCH - FRONT DOOR - CENTRAL	Enquire	To Order
	LR013939	SWITCH - FRONT DOOR - CENTRAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013883	SWITCH - WINDOW CONTROL - DOUBLE	Enquire	To Order
	LR086040	SWITCH - WINDOW CONTROL - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013904	SWITCH - WINDOW CONTROL - SINGLE	Enquire	To Order
	LR086039	SWITCH - WINDOW CONTROL - SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013941	SWITCH	Enquire	To Order
	LR013942	SWITCH	Enquire	To Order
	LR029816	SWITCH - SEAT MEMORY CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR019748	SCREW - SELF-TAPPING	LR019748 SCREW - SELF-TAPPING M4 X 1.79 X 10 / From: AA000001	-	3	Enquire
14028A	LR013940	SWITCH - FRONT DOOR - CENTRAL	LR013940 SWITCH - FRONT DOOR - CENTRAL Electric Front Seat Adj Non-Memory / LH / From: AA000001	-	1	Enquire
14028A	LR013939	SWITCH - FRONT DOOR - CENTRAL	LR013939 SWITCH - FRONT DOOR - CENTRAL Electric Front Seat Adj Non-Memory / RH / From: AA000001	-	1	Enquire
14529A	LR013883	SWITCH - WINDOW CONTROL - DOUBLE	LR013883 SWITCH - WINDOW CONTROL - DOUBLE Drivers Door, Module - Driver Door / From: AA000001 / To: GA814202	-	1	Enquire
14529A	LR086040	SWITCH - WINDOW CONTROL - DOUBLE	LR086040 SWITCH - WINDOW CONTROL - DOUBLE Drivers Door, Module - Driver Door / From: GA814203	-	1	Enquire
14529B	LR013904	SWITCH - WINDOW CONTROL - SINGLE	LR013904 SWITCH - WINDOW CONTROL - SINGLE Passengers Door, Single / From: AA000001 / To: GA814202	-	3	Enquire
14529B	LR086039	SWITCH - WINDOW CONTROL - SINGLE	LR086039 SWITCH - WINDOW CONTROL - SINGLE Passengers Door, Single / From: GA814203	-	3	Enquire
14776A	LR013941	SWITCH	LR013941 SWITCH Electric Front Seat Adj Drv Memory, RHD / For Drivers Side / From: AA000001 / To: BA999999	-	1	Enquire
14776A	LR013942	SWITCH	LR013942 SWITCH Electric Front Seat Adj Drv Memory, LHD / For Drivers Side / From: AA000001 / To: BA999999	-	1	Enquire
14776A	LR029816	SWITCH - SEAT MEMORY CONTROL	LR029816 SWITCH - SEAT MEMORY CONTROL Electric Front Seat Adj Drv Memory, RHD / For Drivers Side / From: CA000001	-	1	Enquire
14776A	LR029817	SWITCH - SEAT MEMORY CONTROL	LR029817 SWITCH - SEAT MEMORY CONTROL Electric Front Seat Adj Drv Memory, LHD / For Drivers Side / From: CA000001	-	1	Enquire
