Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Electrical Wiring - Body And Rear (Towing) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR106494 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR095407 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR020138 WIRING - TOW BAR Enquire To Order
LR015879 WIRING - TOW BAR Enquire To Order
LR020139 WIRING - TOW BAR Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YMZ500770 WIRING Enquire To Order
LR011192 WIRE Enquire To Order
LR011211 WIRING Enquire To Order
...and 8 more part variants. See table on right for more details.
View All

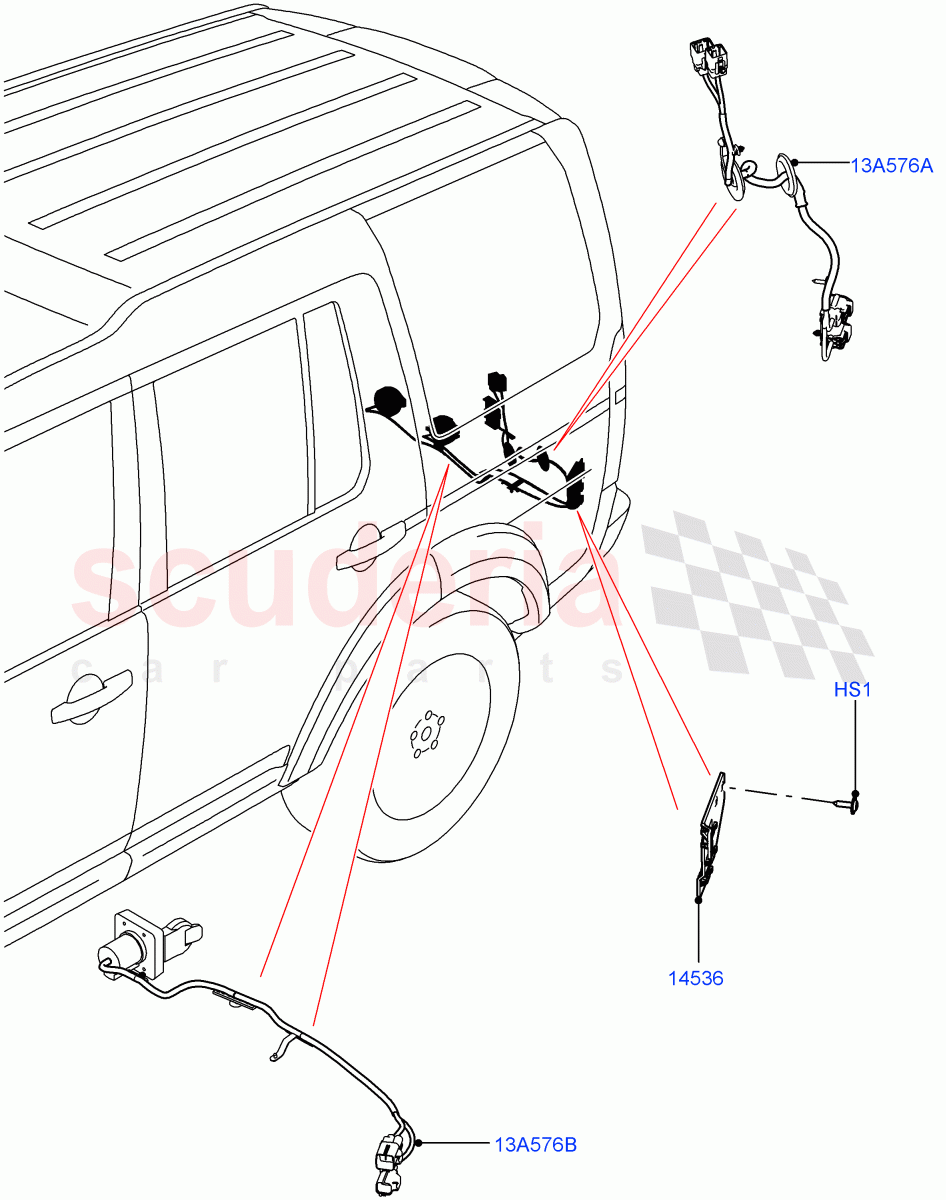

Electrical Wiring - Body And Rear (Towing) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping / From: EA000001 		- 2 Enquire
13A576A LR020138
WIRING - TOW BAR
(+)"CDN/MEX/USA" / 7 Pin, Towing Link Harness / From: AA000001 / To: AA528381 		- 1 Enquire
13A576A LR015879
WIRING - TOW BAR
(-)"CDN/MEX/USA", With 12N 7 PIN Elec Socket/Harness / Towing Link Harness / From: AA000001 / To: AA525551 		- 1 Enquire
13A576A LR020139
WIRING - TOW BAR
(-)"CDN/MEX/USA", With 12N 7 PIN Elec Socket/Harness / Towing Link Harness / From: AA525552 / To: DA999999 		- 1 Enquire
13A576A LR020138
WIRING - TOW BAR
(+)"CDN/MEX/USA" / 7 Pin, Towing Link Harness / From: AA528382 / To: DA999999 		- 1 Enquire
13A576A LR053003
TOW BAR ELECTRICS
(+)"CDN/MEX/USA" / 7 Pin, Towing Link Harness / From: EA000001 / To: FA765665 		- 1 Enquire
13A576A LR053004
TOW BAR ELECTRICS
(-)"CDN/MEX/USA", With 13 PIN Elec Socket And Harness / Towing Link Harness / From: EA000001 / To: FA763513 		- 1 Enquire
13A576A LR080276
TOW BAR ELECTRICS
(+)"CDN/MEX/USA", With 7 + 4 PIN Elec Socket/Harness / 7 Pin, Towing Link Harness / From: FA765666 		- 1 Enquire
13A576A LR080277
TOW BAR ELECTRICS
(-)"CDN/MEX/USA", With 12N 7 PIN Elec Socket/Harness / Towing Link Harness / From: FA763514 		- 1 Enquire
13A576B YMZ500770
WIRING
(+)"CDN/MEX/USA" / 7 Pin, Towing Socket Harness / From: AA000001 / To: DA999999 		- 1 Enquire
13A576B LR011192
WIRE
(-)"CDN/MEX/USA", With 12N 7 PIN Elec Socket/Harness / 12S Harness, Towing Socket Harness / From: AA000001 / To: DA999999 		- 1 Enquire
13A576B LR011211
WIRING
(-)"CDN/MEX/USA", With 13 PIN Elec Socket And Harness / Towing Socket Harness / From: AA000001 / To: DA999999 		- 1 Enquire
13A576B LR011190
WIRING
(-)"CDN/MEX/USA", With 12N 7 PIN Elec Socket/Harness / 12N Harness, Towing Socket Harness / From: AA000001 / To: DA999999 		- 1 Enquire
13A576B LR053005
TOW BAR ELECTRICS
With 12N 7 PIN Elec Socket/Harness / Towing Socket Harness / From: EA000001 / To: FA766435 		- 1 Enquire
13A576B LR053006
TOW BAR ELECTRICS
(+)"CDN/MEX/USA", With 12N 7 PIN Elec Socket/Harness / Towing Socket Harness / From: EA000001 / To: FA766435 		- 1 Enquire
13A576B LR053008
TOW BAR ELECTRICS
Tow Hitch Fixed Height Swan Neck, With 13 PIN Elec Socket And Harness / Towing Socket Harness / From: EA000001 / To: FA764259 		- 1 Enquire
13A576B LR053007
TOW BAR ELECTRICS
With 12N 7 PIN Elec Socket/Harness / 12S Harness / From: EA000001 		- 1 Enquire
13A576B LR081173
TOW BAR ELECTRICS
Tow Hitch Fixed Height Swan Neck, With 13 PIN Elec Socket And Harness / Towing Socket Harness / From: FA764260 		- 1 Enquire
13A576B LR079563
TOW BAR ELECTRICS
With 12N 7 PIN Elec Socket/Harness / Towing Socket Harness / From: FA766436 		- 1 Enquire
13A576B LR079564
TOW BAR ELECTRICS
(+)"CDN/MEX/USA", With 7 + 4 PIN Elec Socket/Harness / Towing Socket Harness / From: FA766436 		- 1 Enquire
14536 LR095407
BRACKET - SUPPORT
With 13 PIN Elec Socket And Harness / From: EA000001 		- 1 Enquire
