Switches (Facia And Console) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Switches (Facia And Console) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FYP500110 SCREW - SELF-TAPPING $1.38 To Order
Photo Part No Description Price (each) Stock
LR010876 SWITCH - LIGHTING $164.69 To Order
Photo Part No Description Price (each) Stock
LR010879 Switch - Lighting $106.55 To Order
Photo Part No Description Price (each) Stock
LR010880 SWITCH - LIGHTING $123.11 To Order
Photo Part No Description Price (each) Stock
YWL500050PVJ SWITCH $57.01 To Order
Photo Part No Description Price (each) Stock
YUF500120PVJ SWITCH $22.49 To Order
Photo Part No Description Price (each) Stock
YUC500030PVJ SWITCH $28.43 To Order
Photo Part No Description Price (each) Stock
LR014095 SWITCH $83.38 To Order
LR019445 SWITCH $83.38 To Order
LR039618 SWITCH - PARKING BRAKE $86.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014324 PANEL - CONTROL $243.40 To Order
LR014325 PANEL - CONTROL $243.40 To Order
LR020188 PANEL - CONTROL $368.48 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014094 SWITCH - CONTROL $316.57 To Order
LR019997 SWITCH - CONTROL $341.83 To Order
LR036077 SWITCH - CONTROL $266.89 To Order
Photo Part No Description Price (each) Stock
LR014093 SWITCH $190.46 To Order
LR019992 SWITCH $193.32 To Order
LR040735 SWITCH - HILL DESCENT CONTROL $242.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029680 SWITCH - CONTROL $254.13 To Order
LR051650 SWITCH - HILL DESCENT CONTROL $333.47 To Order
LR051649 SWITCH - HILL DESCENT CONTROL $362.47 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014015 SWITCH - SOLENOID CONTROL $96.45 To Order
LR014255 SWITCH - SOLENOID CONTROL $35.97 To Order
View All

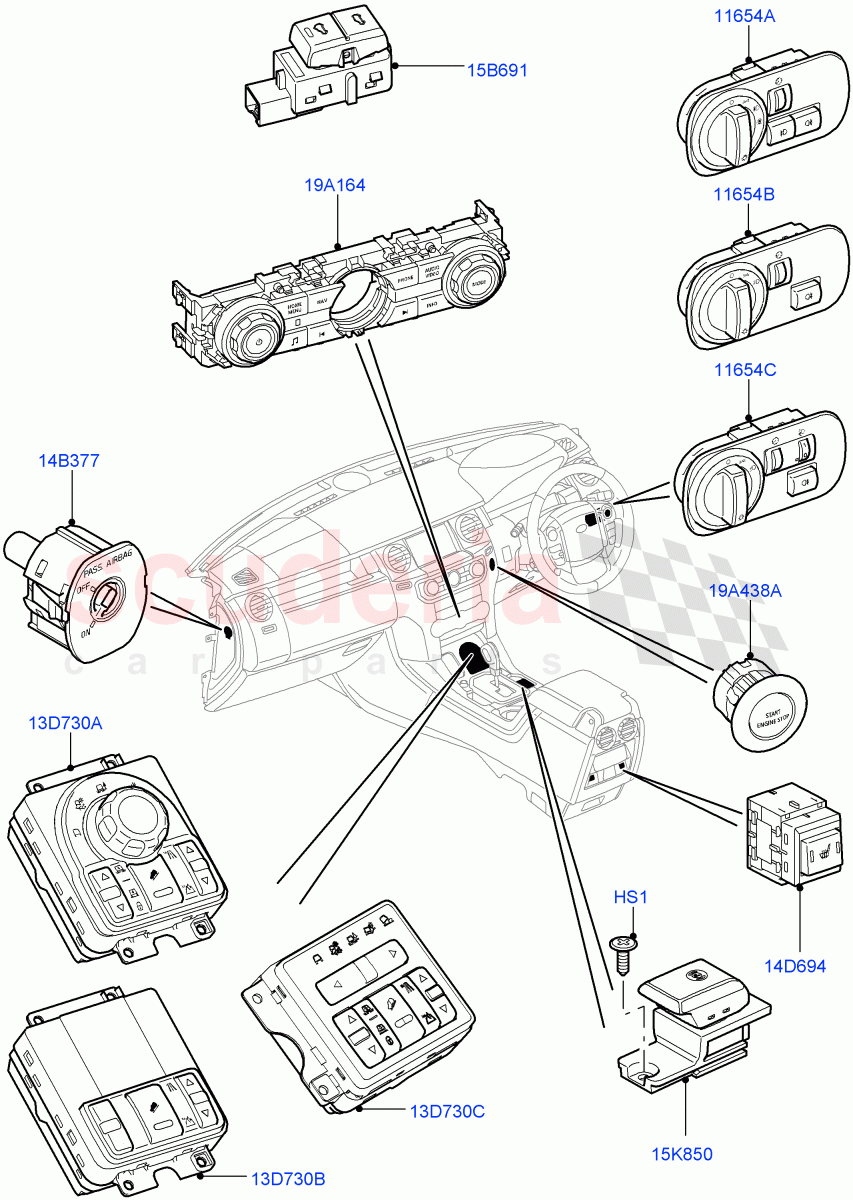

Switches (Facia And Console) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FYP500110
SCREW - SELF-TAPPING
4.2 x 13MM, Self Tapping / From: AA000001 		$1.38 2
13D730A LR014094
SWITCH - CONTROL
6 Speed Man ZF S6-53, With Four Corner Air Suspension / Terrain Response / From: AA000001 / To: AA522760 		$316.57 1
13D730A LR019997
SWITCH - CONTROL
6 Speed Auto ZF 6HP26 Steptronic, With Four Corner Air Suspension / Terrain Response / From: AA522761 / To: CA612151 		$341.83 1
13D730A LR036077
SWITCH - CONTROL
6 Speed Auto ZF 6HP26 Steptronic, With Four Corner Air Suspension / Terrain Response / From: CA612152 / To: DA999999 		$266.89 1
13D730B LR014093
SWITCH
6 Speed Auto Transmission ZF 6HP28, With Standard Duty Coil Spring Susp / From: AA000001 / To: AA522760 		$190.46 1
13D730B LR019992
SWITCH
6 Speed Auto ZF 6HP26 Steptronic, With Standard Duty Coil Spring Susp / From: AA522761 / To: DA999999 		$193.32 1
13D730B LR040735
SWITCH - HILL DESCENT CONTROL
8 Speed Auto Trans ZF 8HP70 4WD, With Standard Duty Coil Spring Susp / Terrain Response / From: DA000001 / To: DA999999 		$242.58 1
13D730B LR040735
SWITCH - HILL DESCENT CONTROL
(+)"ZA", Standard Electric Starter Motor, With 2 Spd Trans Case With Ctl Trac, With Standard Duty Coil Spring Susp / Terrain Response / From: EA000001 		$242.58 1
13D730C LR029680
SWITCH - CONTROL
8 Speed Auto Trans ZF 8HP70 4WD, With Four Corner Air Suspension / Terrain Response / From: CA000001 / To: DA999999 		$254.13 1
13D730C LR051650
SWITCH - HILL DESCENT CONTROL
Starter - Stop/Start System, With 1 Speed Transfer Case, With Four Corner Air Suspension / Terrain Response / From: EA000001 		$333.47 1
13D730C LR051649
SWITCH - HILL DESCENT CONTROL
Standard Electric Starter Motor, With 2 Spd Trans Case With Ctl Trac, With Four Corner Air Suspension / Terrain Response / From: EA000001 		$362.47 1
13D730C LR051648
SWITCH - HILL DESCENT CONTROL
Starter - Stop/Start System, With 2 Spd Trans Case With Ctl Trac, With Four Corner Air Suspension / Terrain Response / From: EA000001 		$402.45 1
13D730C LR051653
SWITCH - HILL DESCENT CONTROL
Standard Electric Starter Motor, With 1 Speed Transfer Case, With Standard Duty Coil Spring Susp / Terrain Response / From: EA000001 		$333.47 1
13D730C LR051652
SWITCH - HILL DESCENT CONTROL
Starter - Stop/Start System, With 1 Speed Transfer Case, With Standard Duty Coil Spring Susp / Terrain Response / From: EA000001 		$333.47 1
13D730C LR051651
SWITCH - HILL DESCENT CONTROL
Standard Electric Starter Motor, With 1 Speed Transfer Case, With Four Corner Air Suspension / Terrain Response / From: EA000001 		$322.18 1
14B377 YWL500050PVJ
SWITCH
With Passenger Air Bag Deactivation / From: AA000001 		$57.01 1
14D694 YUF500120PVJ
SWITCH
With Heated Seats - Front/Rear / From: AA000001 		$22.49 2
15B691 YUC500030PVJ
SWITCH
Power Tilt/Slide Sun Roof / From: AA000001 		$28.43 1
15K850 LR014095
SWITCH
Parking Brake / From: AA000001 / To: AA522242 		$83.38 1
15K850 LR019445
SWITCH
Parking Brake / From: AA522243 / To: CA617900 		$83.38 1
15K850 LR039618
SWITCH - PARKING BRAKE
Parking Brake / From: CA617901 / To: FA773062 		$86.20 1
15K850 LR071958
SWITCH - PARKING BRAKE
Parking Brake / From: FA773063 		$84.92 1
19A164 LR014324
PANEL - CONTROL
Midline Sound System / From: AA000001 / To: AA527946 		$243.40 1
19A164 LR014325
PANEL - CONTROL
Hi ICE Branded / From: AA000001 / To: AA517899 		$243.40 1
19A164 LR020188
PANEL - CONTROL
Hi ICE Branded / From: AA517900 / To: BA999999 		$368.48 1
19A164 LR020144
PANEL - CONTROL
Standard Audio (Base) / From: AA527947 / To: AA540542 		$243.40 1
19A164 LR020187
PANEL - CONTROL
Midline Sound System / From: AA540543 / To: BA999999 		$264.79 1
19A164 LR029582
PANEL - RADIO CONTROL
Midline Sound System / From: CA000001 		$240.74 1
19A164 LR029583
PANEL - RADIO CONTROL
HiLine Audio-600W/Prem Audio 1280W / From: CA000001 / To: DA999999 		$260.06 1
19A164 LR030735
CONTROL - AUDIO/VISUAL UNIT
HiLine Audio-600W/Prem Audio 1280W, Less Front Camera, MFD Dual View Screen / From: EA000001 		$240.74 1
19A164 LR029583
PANEL - RADIO CONTROL
HLDF Screen, HiLine Audio-600W/Prem Audio 1280W, Less Front Camera / From: EA000001 		$260.06 1
19A164 LR051670
PANEL - RADIO CONTROL
HLDF Screen, HiLine Audio-600W/Prem Audio 1280W, Surround Camera System / From: EA000001 		$408.29 1
19A438A LR014015
SWITCH - SOLENOID CONTROL
With Keyless Start / From: AA000001 		$96.45 1
19A438A LR014255
SWITCH - SOLENOID CONTROL
Keyless Start - Japanese Script / From: AA000001 		$35.97 1
11654A LR010876
SWITCH - LIGHTING
With Auto Headlamps / From: AA000001 		$164.69 1
11654B LR010879
Switch - Lighting
Less Auto Headlamps / From: AA000001 		$106.55 1
11654C LR010880
SWITCH - LIGHTING
With Manual Headlamp Levelling / From: AA000001 		$123.11 1
