Battery And Mountings (LH) (LHD) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Battery And Mountings (LH) (LHD) ((V) FROMEA000001)

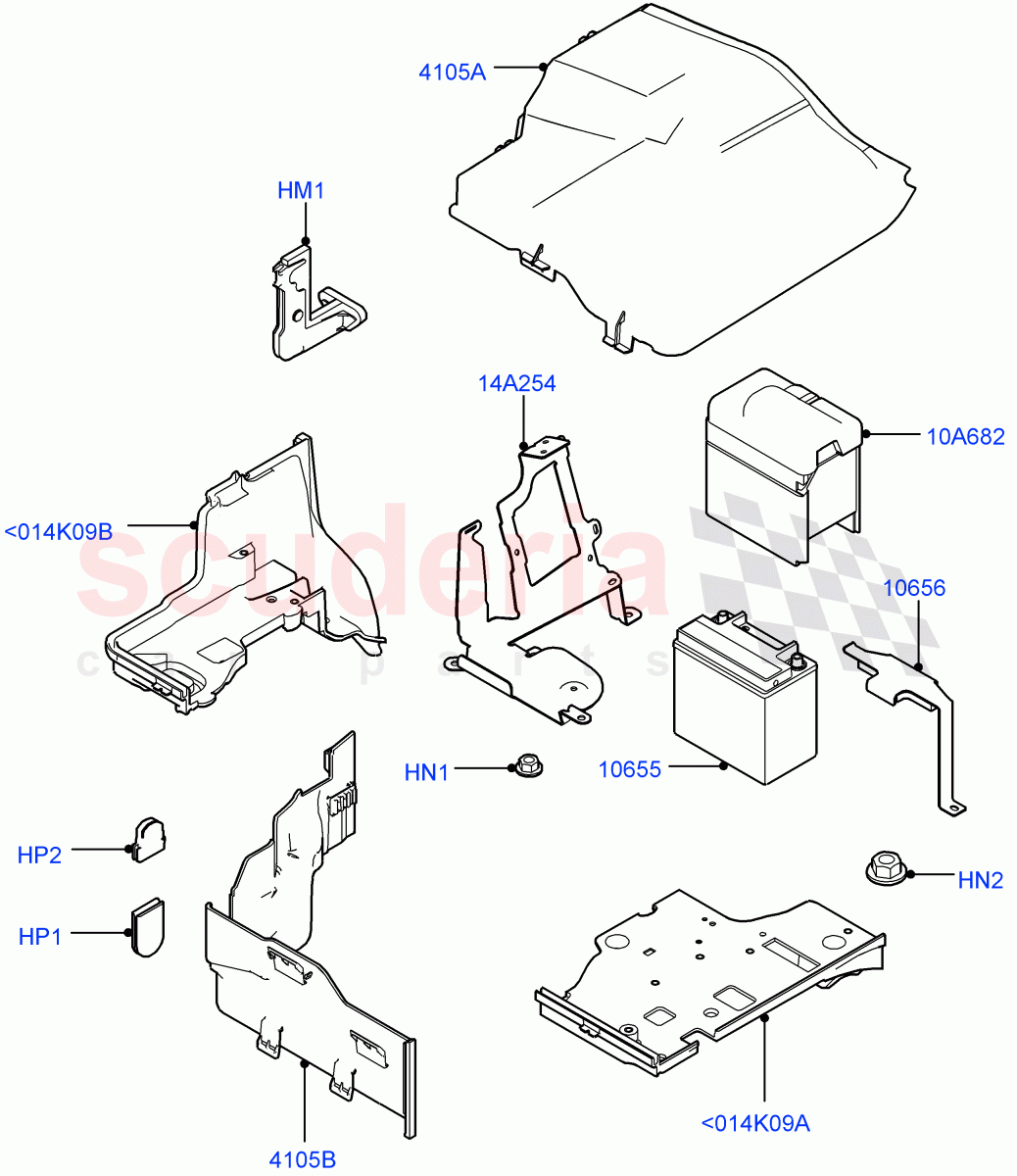

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR015121	INSULATOR - BATTERY BOX SUPPORT	Enquire	To Order
	LR072418	INSULATOR - BATTERY BOX SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069896	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067253	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047630	BATTERY NON SPILLABLE	Enquire	To Order
	LR093840	Battery	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052778	CLAMP - BATTERY	Enquire	To Order
	LR062493	CLAMP - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052358	COVER - BATTERY	Enquire	To Order
	LR066538	COVER - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052362	INSULATOR - AIR VENT	Enquire	To Order
	LR066539	INSULATOR - AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052364	HEAT SHIELD - BATTERY	Enquire	To Order
	LR052365	HEAT SHIELD - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052402	BRACKET - FUSE BOX	Enquire	To Order
	LR052372	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052421	BASE PANEL - BATTERY BOX	Enquire	To Order
	LR064694	BASE PANEL - BATTERY BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052420	BASE PANEL - BATTERY BOX	Enquire	To Order
	LR065517	BASE PANEL - BATTERY BOX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<014K09A	LR052421	BASE PANEL - BATTERY BOX	LR052421 BASE PANEL - BATTERY BOX From: EA000001 / To: EA713018	-	1	Enquire
<014K09A	LR064694	BASE PANEL - BATTERY BOX	LR064694 BASE PANEL - BATTERY BOX From: EA713019	-	1	Enquire
<014K09B	LR052420	BASE PANEL - BATTERY BOX	LR052420 BASE PANEL - BATTERY BOX From: EA000001 / To: EA715636	-	1	Enquire
<014K09B	LR065517	BASE PANEL - BATTERY BOX	LR065517 BASE PANEL - BATTERY BOX From: EA715637	-	1	Enquire
HM1	LR015121	INSULATOR - BATTERY BOX SUPPORT	LR015121 INSULATOR - BATTERY BOX SUPPORT Battery And Mountings / From: EA000001 / To: FA734417	-	1	Enquire
HM1	LR072418	INSULATOR - BATTERY BOX SUPPORT	LR072418 INSULATOR - BATTERY BOX SUPPORT Battery And Mountings / From: FA734418	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: EA000001	-	1	Enquire
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8 / From: EA000001	-	9	Enquire
HP1	LR069896	PLUG - BLANKING	LR069896 PLUG - BLANKING Lower / From: DA699650	-	2	Enquire
HP2	LR067253	PLUG - BLANKING	LR067253 PLUG - BLANKING Upper / From: DA699650	-	1	Enquire
10A682	LR052364	HEAT SHIELD - BATTERY	LR052364 HEAT SHIELD - BATTERY Starter - Stop/Start System / Lower / From: EA000001	-	1	Enquire
10A682	LR052365	HEAT SHIELD - BATTERY	LR052365 HEAT SHIELD - BATTERY Starter - Stop/Start System / Upper / From: EA000001	-	1	Enquire
14A254	LR052402	BRACKET - FUSE BOX	LR052402 BRACKET - FUSE BOX Starter - Stop/Start System / From: EA000001	-	1	Enquire
14A254	LR052372	BRACKET - WIRING	LR052372 BRACKET - WIRING Standard Electric Starter Motor / From: EA000001	-	1	Enquire
4105A	LR052358	COVER - BATTERY	LR052358 COVER - BATTERY From: EA000001 / To: EA725620	-	1	Enquire
4105A	LR066538	COVER - BATTERY	LR066538 COVER - BATTERY From: EA725621	-	1	Enquire
4105B	LR052362	INSULATOR - AIR VENT	LR052362 INSULATOR - AIR VENT From: EA000001 / To: EA725628	-	1	Enquire
4105B	LR066539	INSULATOR - AIR VENT	LR066539 INSULATOR - AIR VENT From: EA725629	-	1	Enquire
10655	LR047630	BATTERY NON SPILLABLE	LR047630 BATTERY NON SPILLABLE 8 Speed Auto Trans ZF 8HP70 4WD, Starter - Stop/Start System / From: EA000001	-	1	Enquire
10655	LR093840	Battery	LR093840 Battery (+)"BR", H8 AGM Battery / From: GA000001	-	1	Enquire
10656	LR052778	CLAMP - BATTERY	LR052778 CLAMP - BATTERY Starter - Stop/Start System / From: EA000001 / To: EA712067	-	1	Enquire
10656	LR062493	CLAMP - BATTERY	LR062493 CLAMP - BATTERY Starter - Stop/Start System / From: EA712068	-	1	Enquire
