Battery And Mountings (Rh) (Lhd) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Battery And Mountings (RH) (LHD) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG000051 BOLT - FLANGED HEX. $4.43 To Order
Photo Part No Description Price (each) Stock
XYG500061 BOLT - BATTERY CLAMP $11.56 To Order
Photo Part No Description Price (each) Stock
LR015122 INSULATOR - BATTERY BOX SUPPORT $11.80 To Order
LR071638 INSULATOR - BATTERY BOX SUPPORT $11.35 To Order
Photo Part No Description Price (each) Stock
RYH500350 NUT - SPECIAL $0.51 To Order
Photo Part No Description Price (each) Stock
LR033179 BATTERY $380.00 To Order
LR093840 Battery $257.10 To Order
LR077924 BATTERY $376.47 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR052582 SPACER - BATTERY $3.57 To Order
LR061198 SPACER - BATTERY $4.62 To Order
Photo Part No Description Price (each) Stock
LR052357 COVER - BATTERY $34.51 To Order
LR066540 COVER - BATTERY $107.00 To Order
Photo Part No Description Price (each) Stock
LR052361 INSULATOR - AIR VENT $33.23 To Order
LR056646 INSULATOR - AIR VENT $32.97 To Order
LR066544 INSULATOR - AIR VENT $42.90 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR052368 BRACKET - BATTERY HOLD DOWN $411.66 To Order
YJF500100 BRACKET - BATTERY HOLD DOWN $34.40 To Order
Photo Part No Description Price (each) Stock
LR065515 CLIP - RETAINING $3.28 To Order
Photo Part No Description Price (each) Stock
LR053663 PAD - ANTI-RATTLE $10.35 To Order
Photo Part No Description Price (each) Stock
LR052419 BASE PANEL - BATTERY BOX $29.05 To Order
LR064693 BASE PANEL - BATTERY BOX $31.50 To Order
Photo Part No Description Price (each) Stock
LR056647 BASE PANEL - BATTERY BOX $40.43 To Order
LR066533 BASE PANEL - BATTERY BOX $38.66 To Order
LR052418 BASE PANEL - BATTERY BOX $32.11 To Order
...and 1 more part variants. See table on right for more details.
View All

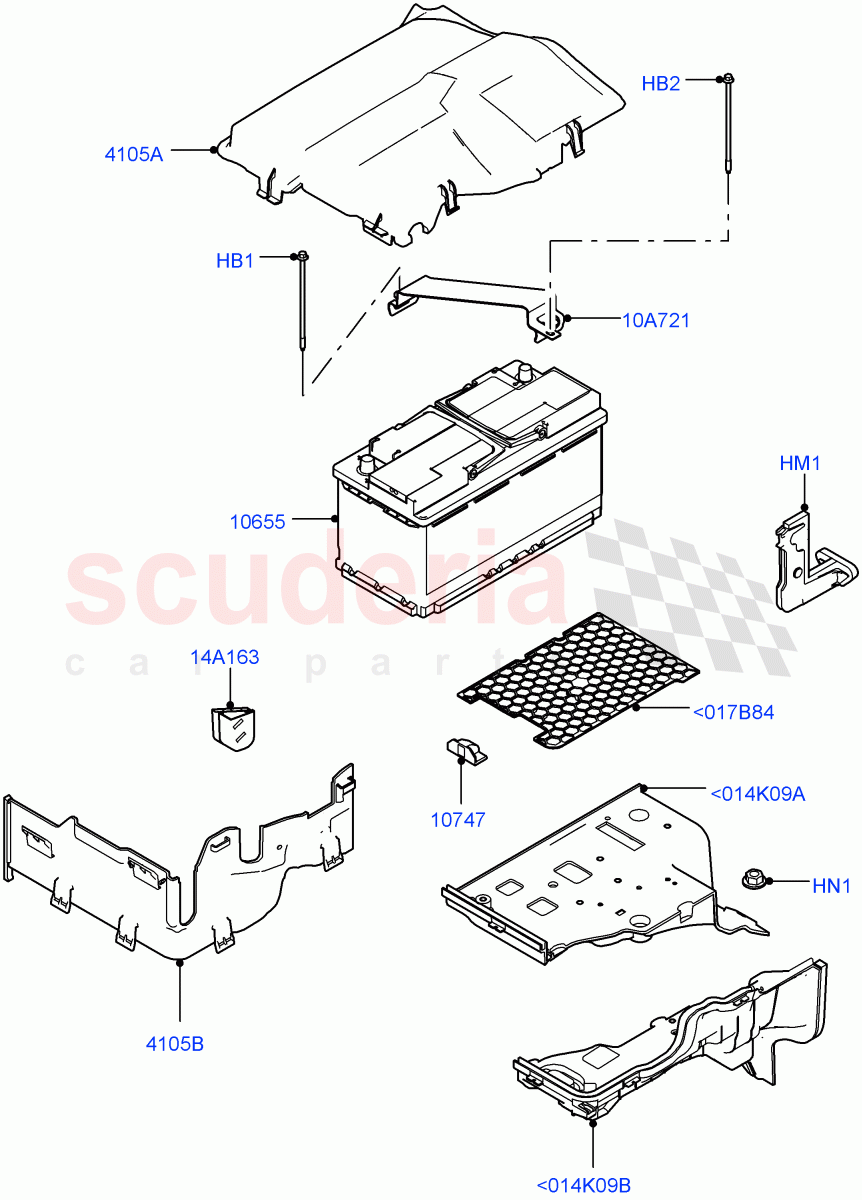

Battery And Mountings (RH) (LHD) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<014K09A LR052419
BASE PANEL - BATTERY BOX
From: EA000001 / To: EA713018 		$29.05 1
<014K09A LR064693
BASE PANEL - BATTERY BOX
From: EA713019 		$31.50 1
<014K09B LR056647
BASE PANEL - BATTERY BOX
(+)"GCC", With Battery Insulation / From: EA000001 / To: EA730714 		$40.43 1
<014K09B LR066533
BASE PANEL - BATTERY BOX
(+)"GCC", With Battery Insulation / From: EA730715 		$38.66 1
<014K09B LR052418
BASE PANEL - BATTERY BOX
Less Battery Insulation / From: EA000001 / To: EA717815 		$32.11 1
<014K09B LR066537
BASE PANEL - BATTERY BOX
Less Battery Insulation / From: EA717816 		$31.79 1
<017B84 LR053663
PAD - ANTI-RATTLE
With Battery Insulation / From: EA000001 		$10.35 1
HB1 XYG000051
BOLT - FLANGED HEX.
180MM, M6 / From: EA000001 		$4.43 2
HB2 XYG500061
BOLT - BATTERY CLAMP
147MM, M6 / From: EA000001 		$11.56 1
HM1 LR015122
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: EA000001 / To: FA734417 		$11.80 1
HM1 LR071638
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: FA734418 		$11.35 1
HN1 RYH500350
NUT - SPECIAL
M8 / From: EA000001 		$0.51 9
10A721 LR052368
BRACKET - BATTERY HOLD DOWN
Starter - Stop/Start System / From: EA000001 		$411.66 1
10A721 YJF500100
BRACKET - BATTERY HOLD DOWN
Standard Electric Starter Motor / From: EA000001 		$34.40 1
14A163 LR065515
CLIP - RETAINING
Blanking / From: EA000001 		$3.28 1
4105A LR052357
COVER - BATTERY
From: EA000001 / To: EA725628 		$34.51 1
4105A LR066540
COVER - BATTERY
From: EA725629 		$107.00 1
4105B LR052361
INSULATOR - AIR VENT
Less Battery Insulation / From: EA000001 / To: EA725620 		$33.23 1
4105B LR056646
INSULATOR - AIR VENT
(+)"GCC", With Battery Insulation / From: EA000001 / To: EA725620 		$32.97 1
4105B LR066544
INSULATOR - AIR VENT
(+)"GCC", With Battery Insulation / From: EA725621 		$42.90 1
4105B LR066526
COVER - BATTERY BOX
Less Battery Insulation / From: EA725621 		$32.11 1
10655 LR033179
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: EA000001 / To: FA739399 		$380.00 1
10655 LR093840
Battery
(+)"BR", H8 AGM Battery / From: GA000001 		$257.10 1
10655 LR077924
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: FA770550 / To: GA805845 		$376.47 1
10655 LR094642
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: GA805846 		$364.03 1
10655 LR073414
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: FA739400 / To: FA770549 		$376.47 1
10747 LR052582
SPACER - BATTERY
Starter - Stop/Start System / From: EA000001 / To: EA717624 		$3.57 1
10747 LR061198
SPACER - BATTERY
Starter - Stop/Start System / From: EA717625 		$4.62 1
