Anti-Theft Alarm Systems ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Anti-Theft Alarm Systems ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
XYG500160 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
CYH10001L NUT - PLASTIC - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
RYP500770 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR011600 HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR012679 TRANSCEIVER Enquire To Order
LR020114 TRANSCEIVER - ANTI THEFT Enquire To Order
Photo Part No Description Price (each) Stock
LR036448 BRACKET - HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR060718 BRACKET - MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR080756 MODULE - PASSIVE START Enquire To Order
LR071651 MODULE - PASSIVE START Enquire To Order
LR071386 MODULE - PASSIVE START Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010919 SENSOR AND BRACKET - INTERIOR SCAN Enquire To Order
LR019354 SENSOR AND BRACKET - INTERIOR SCAN Enquire To Order
Photo Part No Description Price (each) Stock
LR012709 ANTENNA - LF Enquire To Order
Photo Part No Description Price (each) Stock
LR173841 LATCH - HOOD Enquire To Order
LR173841 LATCH - HOOD Enquire To Order
LR041431 SWITCH - HOOD ANTI-THEFT Enquire To Order
Photo Part No Description Price (each) Stock
LR012397 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
LR012398 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
LR113850 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138596 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
LR138730 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR003965 SIREN - ANTI-THEFT ALARM SYSTEM Enquire To Order
LR018494 SIREN - ANTI-THEFT ALARM SYSTEM Enquire To Order
LR023909 HORN Enquire To Order
...and 2 more part variants. See table on right for more details.
View All

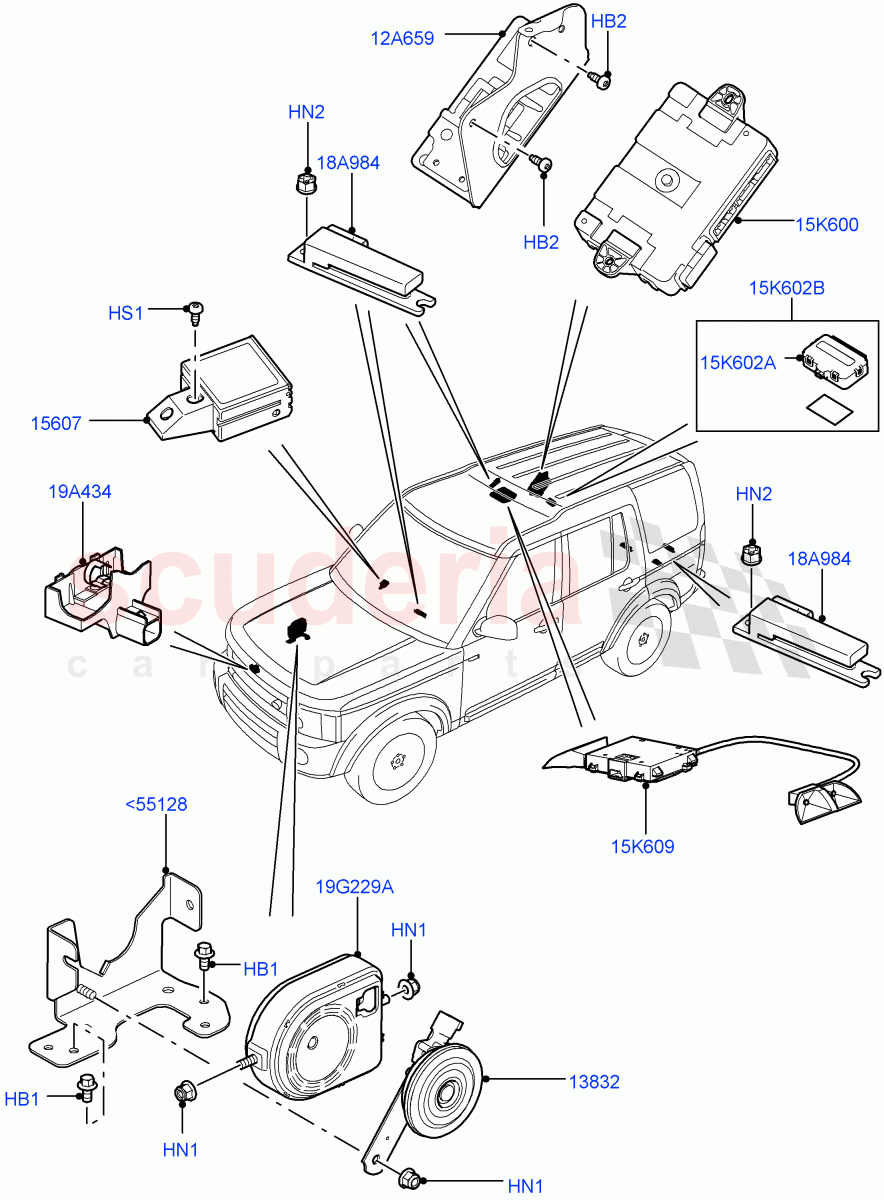

Anti-Theft Alarm Systems ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<55128 LR036448
BRACKET - HORN
Anti-theft Alarm, Siren / From: AA000001 / To: DA999999 		- 1 Enquire
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001 / To: DA999999 		- 2 Enquire
HB2 XYG500160
BOLT
M6 x 12MM, Torx / From: AA000001 		- 3 Enquire
HN1 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001 		- 2 Enquire
HN2 CYH10001L
NUT - PLASTIC - SPECIAL
M5, Plastic / From: AA000001 		- - Enquire
HS1 RYP500770
SCREW
5 X 16MM, Torx / From: AA000001 		- 1 Enquire
12A659 LR060718
BRACKET - MODULE
Module - Remote Keyless Entry / From: AA000001 		- 1 Enquire
15K600 LR080756
MODULE - PASSIVE START
With Keyless Start / From: GA000001 / To: GA803275 		- 1 Enquire
15K600 LR071651
MODULE - PASSIVE START
Keyless Start - Japanese Script / To: FA999999 		- 1 Enquire
15K600 LR071386
MODULE - PASSIVE START
Keyless Entry/Strt-Pass-Jap Script / To: FA999999 		- 1 Enquire
15K600 LR080744
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: GA000001 		- 1 Enquire
15K600 LR071424
MODULE - PASSIVE START
With Keyless Start / From: GA803276 		- 1 Enquire
15K602A LR012397
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: AA000001 / To: CA637688 		- 1 Enquire
15K602A LR012398
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: AA000001 / To: CA637688 		- 1 Enquire
15K602A LR113850
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: CA637689 		- 1 Enquire
15K602A LR143239
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: CA637689 		- 1 Enquire
15K602B LR138596
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: CA637689 		- 1 Enquire
15K602B LR138730
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: CA637689 		- 1 Enquire
15K609 LR010919
SENSOR AND BRACKET - INTERIOR SCAN
With Interior Scanning Alarm / From: AA000001 / To: AA516152 		- 1 Enquire
15K609 LR019354
SENSOR AND BRACKET - INTERIOR SCAN
With Interior Scanning Alarm / From: AA516153 		- 1 Enquire
18A984 LR012709
ANTENNA - LF
With Keyless Start / Remote Keyless Antenna / From: AA000001 		- 2 Enquire
19A434 LR173841
LATCH - HOOD
From: AA000001 / To: BA571304 		- 1 Enquire
19A434 LR173841
LATCH - HOOD
From: BA571305 / To: CA635314 		- 1 Enquire
19A434 LR041431
SWITCH - HOOD ANTI-THEFT
From: CA635315 / To: DA697560 		- 1 Enquire
19G229A LR003965
SIREN - ANTI-THEFT ALARM SYSTEM
Security Siren - Battery Backup / From: AA000001 / To: AA514109 		- 1 Enquire
19G229A LR018494
SIREN - ANTI-THEFT ALARM SYSTEM
BBU With Tilt Sensor / From: AA514110 / To: AA548130 		- 1 Enquire
19G229A LR023909
HORN
Security Siren - Battery Backup / From: AA548131 / To: DA999999 		- 1 Enquire
19G229A LR053823
SIREN - ANTI-THEFT ALARM SYSTEM
BBU With Tilt Sensor / From: EA000001 / To: EA727154 		- 1 Enquire
19G229A LR068101
SIREN - ANTI-THEFT ALARM SYSTEM
BBU With Tilt Sensor / From: EA727155 		- 1 Enquire
13832 LR011600
HORN
Less Secondary Security System / From: AA000001 		- 1 Enquire
15607 LR012679
TRANSCEIVER
With Engine Immobiliser / From: AA000001 / To: AA521822 		- 1 Enquire
15607 LR020114
TRANSCEIVER - ANTI THEFT
With Engine Immobiliser / From: AA521823 		- 1 Enquire
