Battery Cables And Horn (Rhd) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Battery Cables And Horn (RHD) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006001 BOLT $2.49 To Order
Photo Part No Description Price (each) Stock
LR052363 NUT $4.52 To Order
Photo Part No Description Price (each) Stock
FN108042 NUT $1.34 To Order
Photo Part No Description Price (each) Stock
LR052413 CABLE - BATTERY TO STARTER MOTOR $250.75 To Order
LR078394 CABLE - BATTERY TO STARTER MOTOR $284.63 To Order
LR052766 CABLE - BATTERY POSITIVE $224.87 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048786 POWER SUPPLY DISTRIBUTION BOX $594.20 To Order
LR067367 POWER SUPPLY DISTRIBUTION BOX $2,050.74 To Order
Photo Part No Description Price (each) Stock
LR057241 CABLE - BMS $51.20 To Order
Photo Part No Description Price (each) Stock
LR038721 BATTERY MANAGEMENT SYSTEM $73.21 To Order
Photo Part No Description Price (each) Stock
LR058019 CABLE - BATTERY POSITIVE $320.62 To Order
Photo Part No Description Price (each) Stock
LR051757 HORN $96.61 To Order
LR014560 HORN $151.42 IN STOCK
LR056648 HORN $147.22 To Order
Photo Part No Description Price (each) Stock
LR052581 CABLE - BATTERY NEGATIVE $38.62 To Order
Photo Part No Description Price (each) Stock
LR052765 CABLE - BATTERY TO STARTER MOTOR $82.51 To Order
Photo Part No Description Price (each) Stock
LR052411 CABLE - BATTERY NEGATIVE $59.67 To Order
LR077406 CABLE - BATTERY NEGATIVE $206.26 To Order
Photo Part No Description Price (each) Stock
LR056111 CLAMP - BATTERY $170.32 To Order
Photo Part No Description Price (each) Stock
LR048824 PLUG - BLANKING $3.71 To Order
Photo Part No Description Price (each) Stock
LR048567 COVER - PWR SUPPLY DISTRIBUTION BOX $14.70 To Order
View All

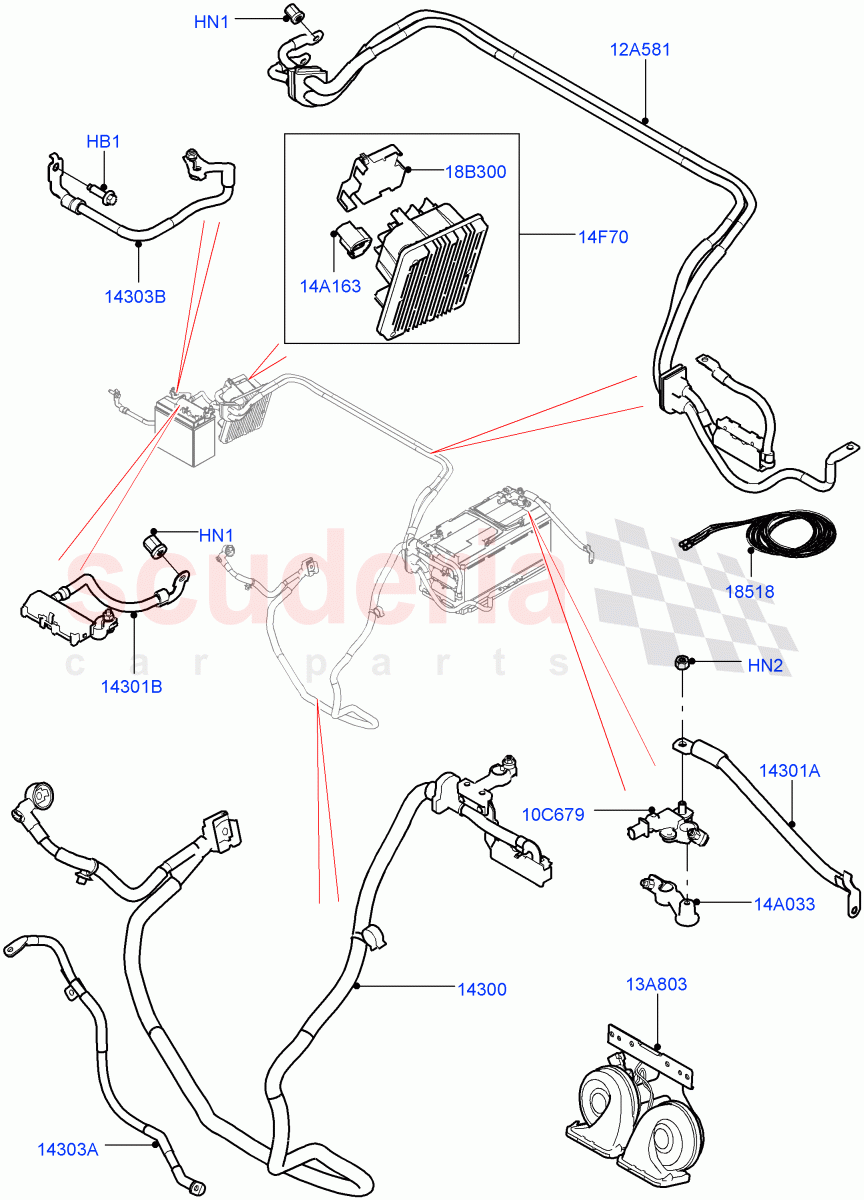

Battery Cables And Horn (RHD) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006001
BOLT
Starter - Stop/Start System / M8 X 30 / From: EA000001 		$2.49 1
HN1 LR052363
NUT
Starter - Stop/Start System / M8, Positive Battery Cable / From: EA000001 		$4.52 3
HN2 FN108042
NUT
M8 / From: EA000001 		$1.34 1
10C679 LR038721
BATTERY MANAGEMENT SYSTEM
From: EA000001 		$73.21 1
12A581 LR058019
CABLE - BATTERY POSITIVE
Starter - Stop/Start System / Power Supply Distribution Box / From: EA000001 		$320.62 1
13A803 LR051757
HORN
Dual Note Electric Horn - Level 2 / From: EA000001 / To: EA701176 		$96.61 1
13A803 LR014560
HORN
Dual Note Electric Horn / From: EA000001
IN STOCK 		$151.42 1
13A803 LR056648
HORN
Dual Note Electric Horn - Level 2 / From: EA701177 		$147.22 1
14A033 LR056111
CLAMP - BATTERY
RHD / From: EA000001 		$170.32 1
14A163 LR048824
PLUG - BLANKING
Starter - Stop/Start System / From: EA000001 		$3.71 1
14F70 LR048786
POWER SUPPLY DISTRIBUTION BOX
Starter - Stop/Start System / From: EA000001 / To: EA699715 		$594.20 1
14F70 LR067367
POWER SUPPLY DISTRIBUTION BOX
Starter - Stop/Start System / From: EA699716 		$2,050.74 1
18B300 LR048567
COVER - PWR SUPPLY DISTRIBUTION BOX
Starter - Stop/Start System / Power Supply Distribution Box / From: EA000001 		$14.70 1
14300 LR052413
CABLE - BATTERY TO STARTER MOTOR
3.0L DOHC GDI SC V6 PETROL, Standard Electric Starter Motor / From: EA000001 / To: FA764599 		$250.75 1
14300 LR078394
CABLE - BATTERY TO STARTER MOTOR
3.0L DOHC GDI SC V6 PETROL, Standard Electric Starter Motor / From: FA764600 		$284.63 1
14300 LR052766
CABLE - BATTERY POSITIVE
3.0 V6 Diesel, Standard Electric Starter Motor / From: EA000001 / To: FA764599 		$224.87 1
14300 LR071682
CABLE - BATTERY POSITIVE
3.0 V6 D Gen2 Twin Turbo, Standard Electric Starter Motor / From: FA764600 		$239.61 1
14300 LR052417
CABLE - BATTERY TO STARTER MOTOR
3.0 V6 Diesel, Starter - Stop/Start System / From: EA000001 / To: FA764599 		$245.67 1
14300 LR071684
CABLE - BATTERY TO STARTER MOTOR
3.0L 24V DOHC V6 TC Diesel, Starter - Stop/Start System / From: FA764600 		$281.40 1
14300 LR070090
CABLE - BATTERY POSITIVE
3.0 V6 D Gen2 Twin Turbo, Standard Electric Starter Motor / From: GA000001 		$257.29 1
14300 LR070092
CABLE - BATTERY POSITIVE
3.0 V6 D Gen2 Twin Turbo, Starter - Stop/Start System / From: GA000001 		$500.84 1
14301A LR052581
CABLE - BATTERY NEGATIVE
From: EA000001 		$38.62 1
14301B LR052765
CABLE - BATTERY TO STARTER MOTOR
Starter - Stop/Start System / Power Supply Distribution Box / From: EA000001 		$82.51 1
14303A LR024287
CABLE - ENGINE TO EARTH
Ground Wire From Engine To Chassis Member, Negative / From: EA000001 		$84.40 1
14303B LR052411
CABLE - BATTERY NEGATIVE
Starter - Stop/Start System / Negative / From: EA000001 / To: FA764599 		$59.67 1
14303B LR077406
CABLE - BATTERY NEGATIVE
Starter - Stop/Start System / Negative / From: FA764600 		$206.26 1
18518 LR057241
CABLE - BMS
Battery Management System, Service Repair Links / From: EA000001 		$51.20 1
