Vacuum Control And Air Injection (2.0L I4 Dsl Mid Dohc Aj200, Lhd)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Vacuum Control And Air Injection (2.0L I4 DSL MID DOHC AJ200, LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073666 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR087668 PUMP - OIL & VACUUM Enquire To Order
LR110501 PUMP - OIL & VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR090848 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
LR082319 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR091633 HOSE - VACUUM Enquire To Order
LR082319 HOSE - VACUUM CONTROL HARNESS Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093608 SENSOR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR090857 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR073665 CONNECTOR - VACUUM TUBE Enquire To Order
LR148195 CONNECTOR - VACUUM TUBE Enquire To Order
View All

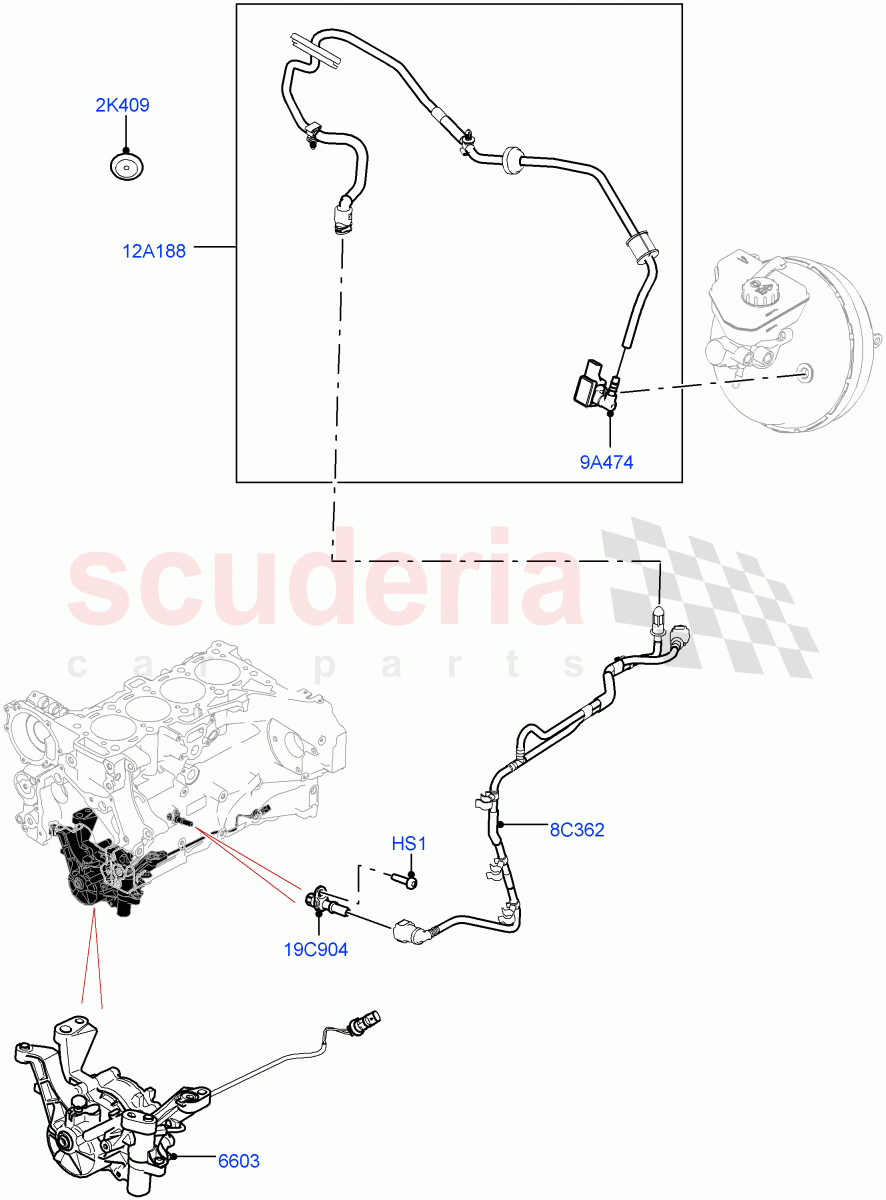

Vacuum Control And Air Injection (2.0L I4 DSL MID DOHC AJ200, LHD) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector 		- 1 Enquire
2K409 LR090848
GROMMET 		- 1 Enquire
8C362 LR082319
HOSE - VACUUM CONTROL HARNESS
EU6 + DPF Emissions / To Vacuum Pump / To: JA999999 		- 1 Enquire
8C362 LR091633
HOSE - VACUUM
LEV 160 / To Vacuum Pump / To: JA999999 		- 1 Enquire
8C362 LR082319
HOSE - VACUUM CONTROL HARNESS
Stage V Plus DPF / To Vacuum Pump / From: KA000001 		- 1 Enquire
8C362 LR091633
HOSE - VACUUM
EU6D Diesel + DPF Emissions / To Vacuum Pump / From: KA000001 		- 1 Enquire
9A474 LR093608
SENSOR - VACUUM 		- 1 Enquire
12A188 LR090857
HOSE - VACUUM
To Brake Booster 		- 1 Enquire
19C904 LR073665
CONNECTOR - VACUUM TUBE
Cylinder Block, Pump - Vacuum / To: LA292815 		- 1 Enquire
19C904 LR148195
CONNECTOR - VACUUM TUBE
Cylinder Block, Pump - Vacuum / From: LA292816 		- 1 Enquire
6603 LR087668
PUMP - OIL & VACUUM
To: JA742843 		- 1 Enquire
6603 LR110501
PUMP - OIL & VACUUM
From: JA742844 		- 1 Enquire
