Exhaust Gas Recirculation (Rh Side) (2.0L I4 Dsl Mid Dohc Aj200, Euro Stage 4 Emissions) ((V)...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (RH Side) (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073739 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR083962 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR084673 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR095785 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073736 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073738 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR048608 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR123831 PLATE - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR090553 STUD - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR097167 THROTTLE BODY AND EGR VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR082315 GASKET - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR126126 FILTER - EGR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR082301 COOLER - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR082312 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR075629 SENSOR - TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR082478 SENSOR - EXHAUST GAS PRESSURE Enquire To Order
View All

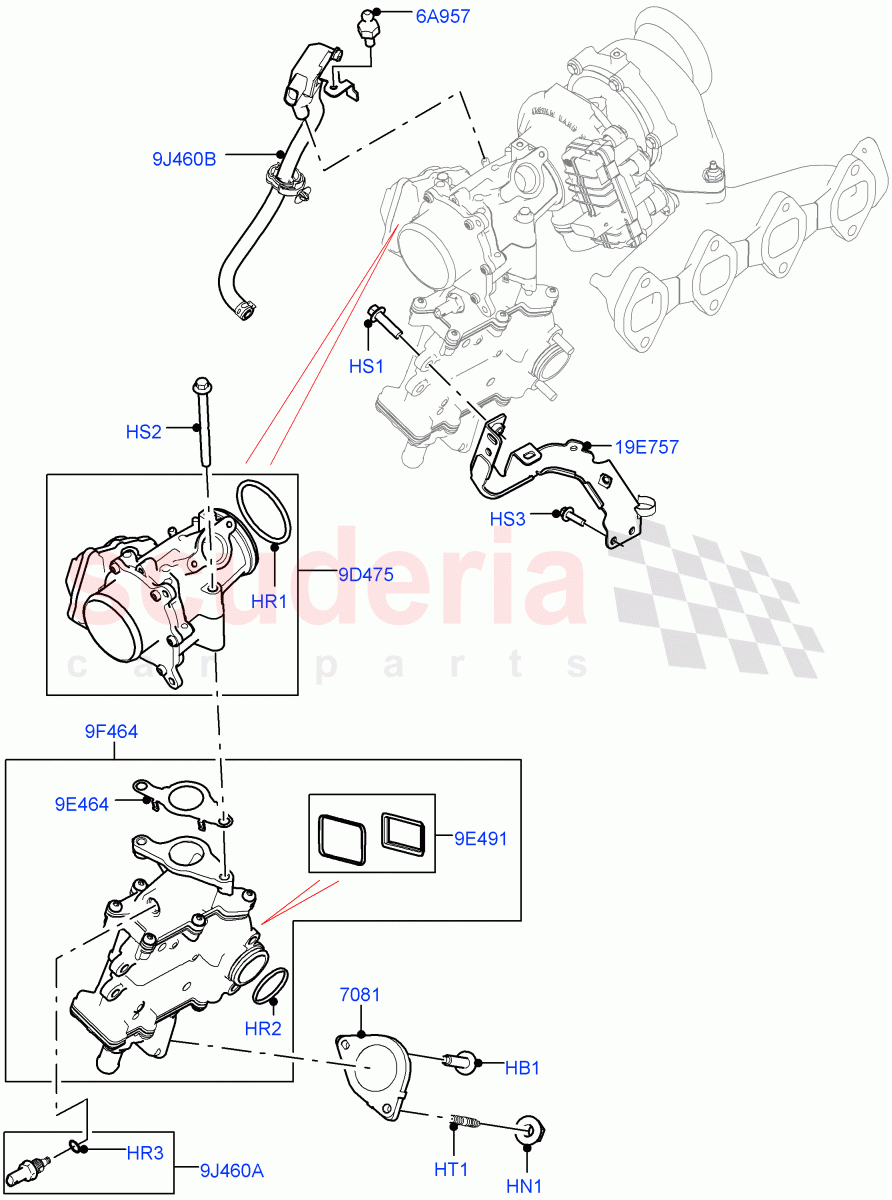

Exhaust Gas Recirculation (RH Side) (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR073739
BOLT
M6 X 25MM 		- 1 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 		- 1 Enquire
HR1 LR083962
O-RING
60MM 		- 1 Enquire
HR2 LR084673
O-RING
EGR Cooler 		- 1 Enquire
HR3 LR095785
O-RING
11.3 x 2.5MM, Exhaust Gas Pressure 		- 1 Enquire
HS1 LR073736
SCREW
M8 X 30MM 		- 3 Enquire
HS2 LR073738
SCREW
EGR Cooler To EGR Valve, M8 x 100MM 		- 2 Enquire
HS3 LR073655
SCREW
Bracket, Hexagonal Head, M6 X 20MM 		- 2 Enquire
HT1 LR048608
STUD
M6 		- 1 Enquire
6A957 LR090553
STUD - SPECIAL
Engine Cover 		- 1 Enquire
9D475 LR097167
THROTTLE BODY AND EGR VALVE 		- 1 Enquire
9E464 LR082315
GASKET - EXHAUST MANIFOLD
EGR Cooler To EGR Valve 		- 1 Enquire
9E491 LR126126
FILTER - EGR COOLER
Filter And Gasket Kit 		- 1 Enquire
9F464 LR082301
COOLER - EGR 		- 1 Enquire
9J460A LR075629
SENSOR - TEMPERATURE
Temperature 		- 1 Enquire
9J460B LR082478
SENSOR - EXHAUST GAS PRESSURE
Exhaust Gas Pressure 		- 1 Enquire
19E757 LR082312
BRACKET - SUPPORT 		- 1 Enquire
7081 LR123831
PLATE - BLANKING 		- 1 Enquire
