Find Your Part

Exhaust Gas Recirculation (RH Side) (2.0L I4 DSL HIGH DOHC AJ200, EU6D Diesel + DPF Emissions, 2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF, Stage V Plus DPF, EU6 + DPF Emissions, DPF + DE-SOX, LEV 160, L6 Diesel Emissions) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (RH Side) (2.0L I4 DSL HIGH DOHC AJ200, EU6D Diesel + DPF Emissions, 2.0L...

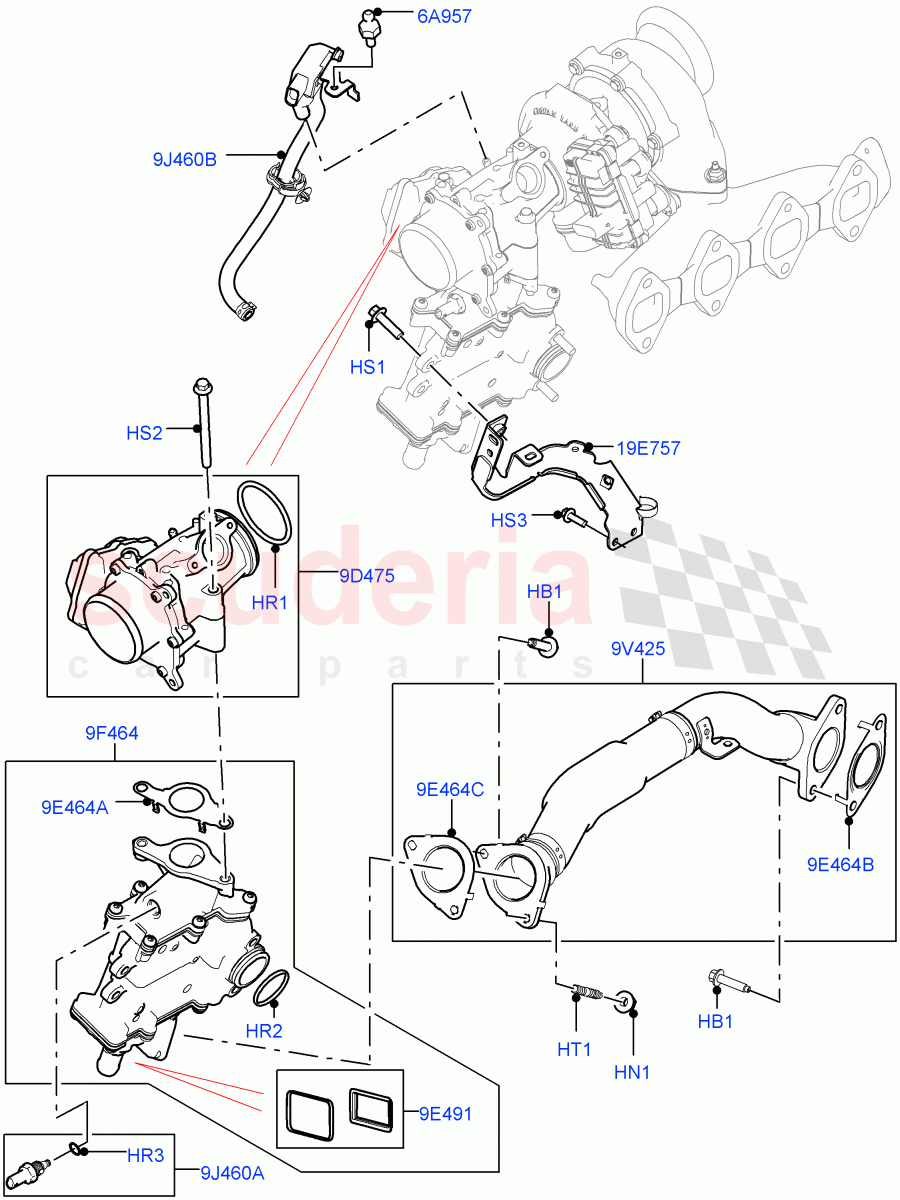

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083962	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084673	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048608	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090553	STUD - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097167	THROTTLE BODY AND EGR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126126	FILTER - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082301	COOLER - EGR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091622	TUBE - EGR COOLER	Enquire	To Order
	LR143680	TUBE - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082312	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082315	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118293	GASKET - EGR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083961	GASKET - EGR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082479	SENSOR - EXHAUST GAS PRESSURE	Enquire	To Order
	LR082478	SENSOR - EXHAUST GAS PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR073739	BOLT	LR073739 BOLT EGR Tube, M6 X 25MM	-	4	Enquire
HN1	FX106046	NUT - FLANGED	FX106046 NUT - FLANGED Hexagonal Head, M6	-	1	Enquire
HR1	LR083962	O-RING	LR083962 O-RING 60MM	-	1	Enquire
HR2	LR084673	O-RING	LR084673 O-RING EGR Cooler	-	1	Enquire
HR3	LR095785	O-RING	LR095785 O-RING 11.3 x 2.5MM, Exhaust Gas Pressure	-	1	Enquire
HS1	LR073736	SCREW	LR073736 SCREW EGR Cooler, M8 X 30MM	-	3	Enquire
HS2	LR073738	SCREW	LR073738 SCREW EGR Cooler To EGR Valve, M8 x 100MM	-	2	Enquire
HS3	LR073655	SCREW	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM	-	1	Enquire
HT1	LR048608	STUD	LR048608 STUD M6	-	1	Enquire
6A957	LR090553	STUD - SPECIAL	LR090553 STUD - SPECIAL Engine Cover	-	1	Enquire
9D475	LR097167	THROTTLE BODY AND EGR VALVE	LR097167 THROTTLE BODY AND EGR VALVE	-	1	Enquire
9E464A	LR082315	GASKET - EXHAUST MANIFOLD	LR082315 GASKET - EXHAUST MANIFOLD EGR Cooler To EGR Valve	-	1	Enquire
9E464B	LR118293	GASKET - EGR INLET	LR118293 GASKET - EGR INLET EGR Tube	-	1	Enquire
9E464C	LR083961	GASKET - EGR INLET	LR083961 GASKET - EGR INLET EGR Tube	-	1	Enquire
9E491	LR126126	FILTER - EGR COOLER	LR126126 FILTER - EGR COOLER Filter And Gasket Kit	-	1	Enquire
9F464	LR082301	COOLER - EGR	LR082301 COOLER - EGR	-	1	Enquire
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature	-	1	Enquire
9J460B	LR082479	SENSOR - EXHAUST GAS PRESSURE	LR082479 SENSOR - EXHAUST GAS PRESSURE 2.0L I4 DSL HIGH DOHC AJ200 / Exhaust Gas Pressure	-	1	Enquire
9J460B	LR082478	SENSOR - EXHAUST GAS PRESSURE	LR082478 SENSOR - EXHAUST GAS PRESSURE 2.0L I4 DSL MID DOHC AJ200 / Exhaust Gas Pressure	-	1	Enquire
9V425	LR091622	TUBE - EGR COOLER	LR091622 TUBE - EGR COOLER EGR Cooler Inlet / To: LA279960	-	1	Enquire
9V425	LR143680	TUBE - EGR COOLER	LR143680 TUBE - EGR COOLER EGR Cooler Inlet / From: LA279961	-	1	Enquire
19E757	LR082312	BRACKET - SUPPORT	LR082312 BRACKET - SUPPORT	-	1	Enquire
