Emission Control - Crankcase (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid Dohc Aj200) ((V)...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Emission Control - Crankcase (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR105407 O-RING $5.78 To Order
Photo Part No Description Price (each) Stock
LR105408 O-RING $5.78 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR105594 GASKET - COVER $43.95 To Order
Photo Part No Description Price (each) Stock
LR105972 COVER - BREATHER $136.01 To Order
LR105972 COVER - BREATHER $136.01 To Order
LR091804 COVER - BREATHER $164.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR174796 HEAT SHIELD $93.02 To Order
Photo Part No Description Price (each) Stock
LR084921 SENSOR - CRANKCASE PRESSURE $186.47 To Order
LR084921 SENSOR - CRANKCASE PRESSURE $186.47 To Order
Photo Part No Description Price (each) Stock
LR082291 TUBE - BREATHER $90.99 To Order
View All

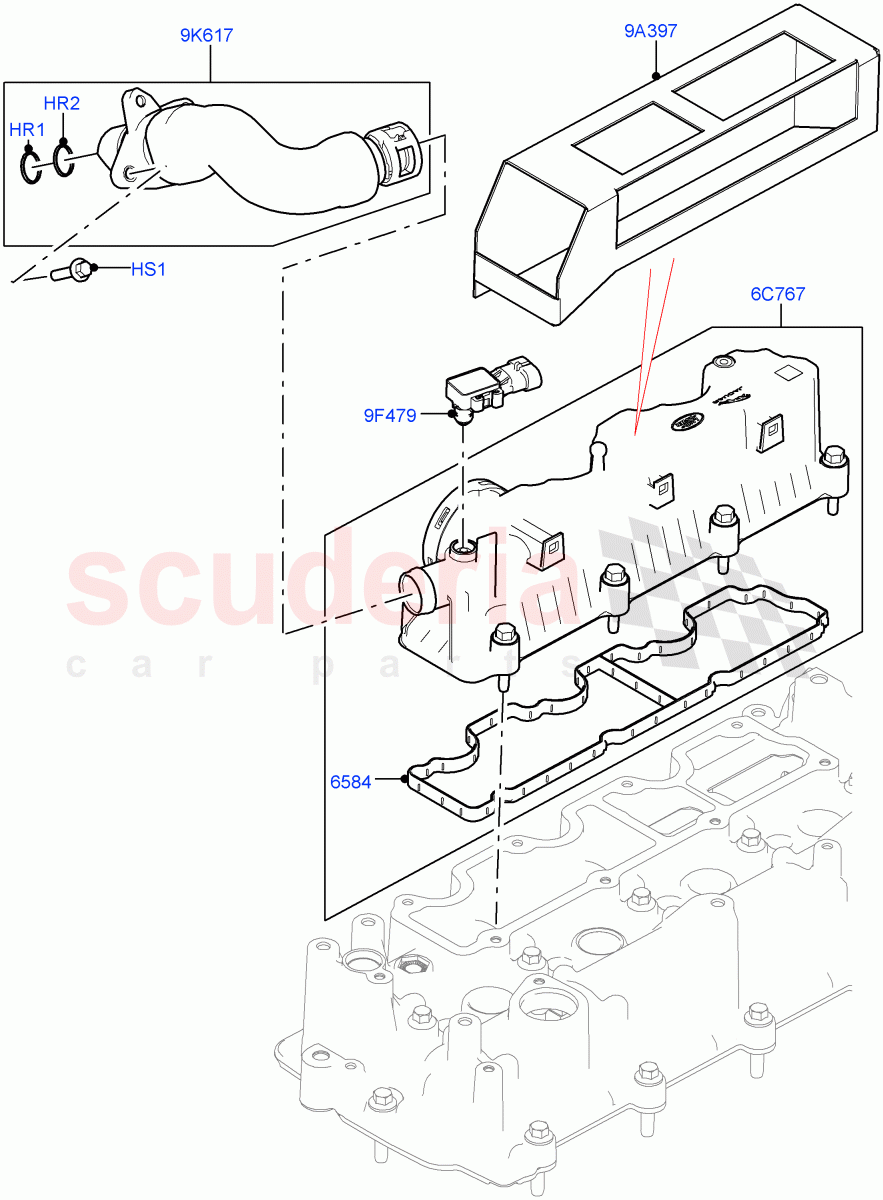

Emission Control - Crankcase (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR105407
O-RING 		$5.78 1
HR2 LR105408
O-RING 		$5.78 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Engine Ventilation, Hexagonal Head, Hose, M6 X 25MM 		$1.28 2
6C767 LR105972
COVER - BREATHER
Japanese Emission + DPF / Engine Ventilation / To: JA999999 		$136.01 1
6C767 LR105972
COVER - BREATHER
2.0L I4 DSL HIGH DOHC AJ200 / Engine Ventilation / From: KA000001 		$136.01 1
6C767 LR091804
COVER - BREATHER
LEV 160 / Engine Ventilation / To: JA999999 		$164.32 1
6C767 LR091804
COVER - BREATHER
2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF / Engine Ventilation / From: KA000001 		$164.32 1
9A397 LR174796
HEAT SHIELD 		$93.02 1
9F479 LR084921
SENSOR - CRANKCASE PRESSURE
2.0L I4 DSL MID DOHC AJ200, LEV 160 / Pressure / To: JA999999 		$186.47 1
9F479 LR084921
SENSOR - CRANKCASE PRESSURE
2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF / Pressure / From: KA000001 		$186.47 1
9K617 LR082291
TUBE - BREATHER
Engine Ventilation 		$90.99 1
6584 LR105594
GASKET - COVER 		$43.95 1
