Name: Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMKA000001)
Rating: 4.7 (1 reviews)

Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091635	BOLT	$2.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082322	SCREW	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079931	SCREW	$5.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$4.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083963	O-RING	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116270	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052757	STUD	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110290	VALVE - EXHAUST GAS RECIRCULATION	$473.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113189	COOLER - EGR	$422.99	To Order
	LR113189	COOLER - EGR	$422.99	To Order
	LR132636	COOLER - EGR	$363.57	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR111572	TUBE - EXHAUST GAS RECIRCULATION	$127.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$46.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095556	GASKET - EGR OUTLET	$13.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082314	GASKET - EXHAUST MANIFOLD	$9.17	To Order

View All

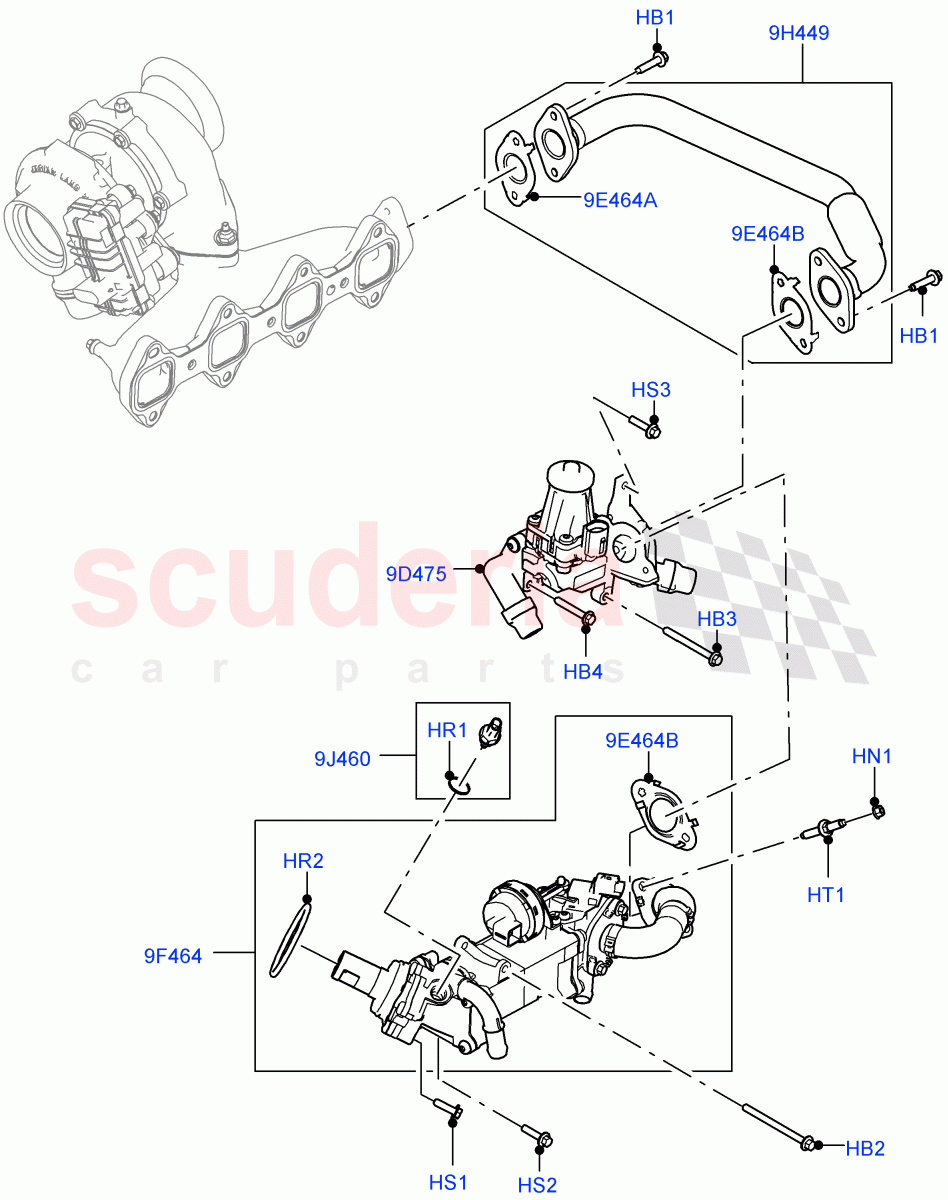

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR073739	BOLT	LR073739 BOLT M6 X 25MM, Pipe - Exhaust Crossover / From: KA000001	$1.28	4
HB2	LR091635	BOLT	LR091635 BOLT M6 x 80MM / From: KA000001	$2.86	1
HB3	LR082322	SCREW	LR082322 SCREW M6 X 115 / From: KA000001	$1.96	1
HB4	LR079931	SCREW	LR079931 SCREW M6 X 40MM, Stud / From: KA000001	$5.09	1
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: KA000001	$1.40	1
HR1	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Sensor / From: KA000001 IN STOCK	$4.92	1
HR2	LR083963	O-RING	LR083963 O-RING EGR Valve To Inlet Manifold / From: KA000001	$5.96	1
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	$2.23	2
HS2	LR116270	SCREW	LR116270 SCREW M6 X 25MM / From: KA000001	$2.40	2
HS3	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$1.54	1
HT1	LR052757	STUD	LR052757 STUD M6 X 25 / M6 X 15 / From: KA000001	$2.22	2
9D475	LR110290	VALVE - EXHAUST GAS RECIRCULATION	LR110290 VALVE - EXHAUST GAS RECIRCULATION With Cooler / From: KA000001	$473.13	1
9E464A	LR095556	GASKET - EGR OUTLET	LR095556 GASKET - EGR OUTLET RH, Pipe - Exhaust Crossover / From: KA000001	$13.56	1
9E464B	LR082314	GASKET - EXHAUST MANIFOLD	LR082314 GASKET - EXHAUST MANIFOLD LH, Pipe - Exhaust Crossover / From: KA000001	$9.17	1
9F464	LR113189	COOLER - EGR	LR113189 COOLER - EGR From: KA700000 / To: KA799999	$422.99	1
9F464	LR113189	COOLER - EGR	LR113189 COOLER - EGR From: KA200000 / To: KA228783	$422.99	1
9F464	LR132636	COOLER - EGR	LR132636 COOLER - EGR From: KA228784 / To: KA299999	$363.57	1
9F464	LR132636	COOLER - EGR	LR132636 COOLER - EGR From: LA000001	$363.57	1
9H449	LR111572	TUBE - EXHAUST GAS RECIRCULATION	LR111572 TUBE - EXHAUST GAS RECIRCULATION Pipe - Exhaust Crossover / From: KA000001	$127.29	1
9J460	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: KA000001	$46.10	1
