Name: Exhaust Fluid Injection System (Injector and Control Unit) (2.0L I4 DSL HIGH DOHC AJ200, With Diesel Exh Fluid Emission Tank, 2.0L I4 DSL MID DOHC AJ200)
Rating: 4.6 (1 reviews)

Exhaust Fluid Injection System (Injector and Control Unit) (2.0L I4 DSL HIGH DOHC AJ200, With Diesel Exh Fluid Emission Tank, 2.0L I4 DSL MID DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Exhaust Fluid Injection System (Injector and Control Unit) (2.0L I4 DSL HIGH DOHC AJ200, With...

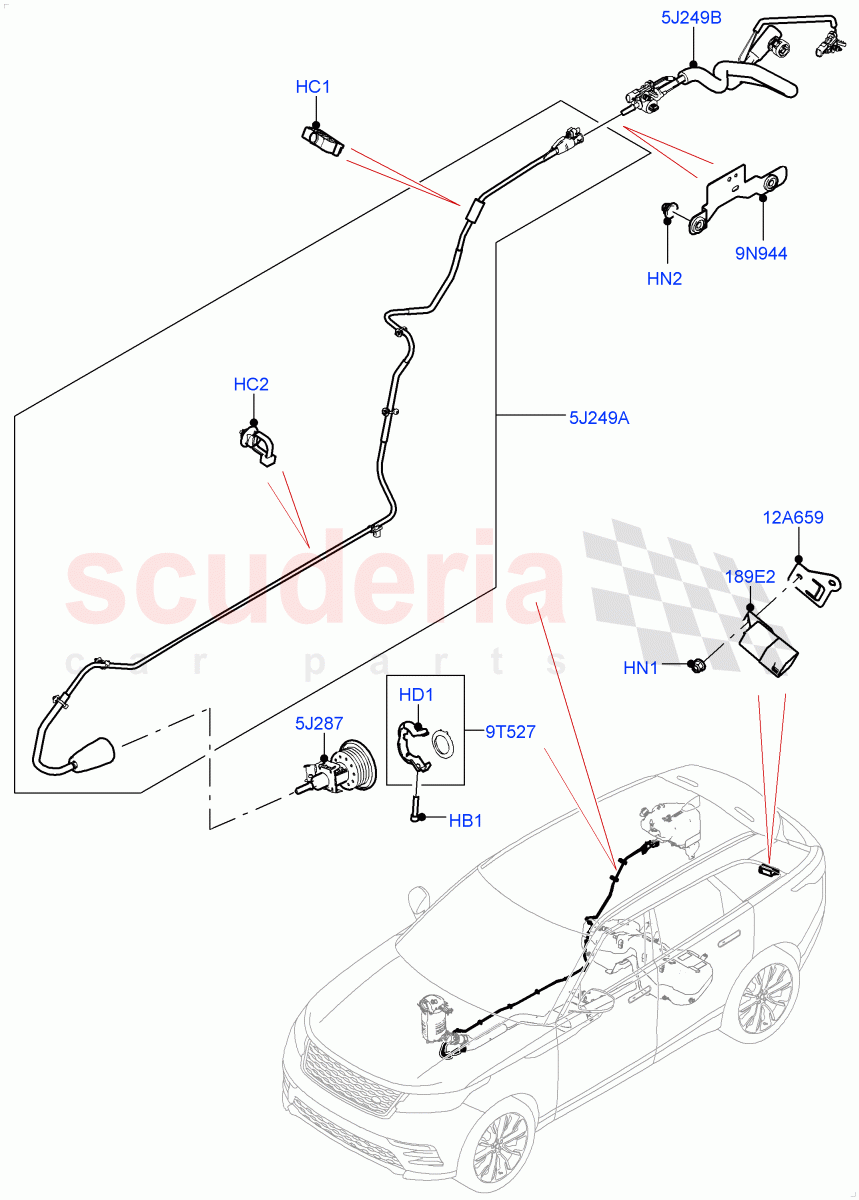

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR067041	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071368	CLIP - PIPE	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067042	CLAMP - TUBE	$3.54	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038544	NUT	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071241	CONTROL UNIT - AUXILIARY HEATER	$133.87	To Order
	LR117592	CONTROL UNIT - AUXILIARY HEATER	$145.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166795	INJECTOR - DIESEL EXHAUST FLUID	$259.69	To Order
	LR166795	INJECTOR - DIESEL EXHAUST FLUID	$259.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138487	BRACKET - FUEL LINES	$31.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138592	kIT - INJECTOR REFIT	$22.34	IN STOCK
	LR138592	kIT - INJECTOR REFIT	$22.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139412	BRACKET - MODULE	$19.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091677	TUBE - DIESEL EXHAUST FLUID FEED	$283.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091676	TUBE - DIESEL EXHAUST FLUID FEED	$193.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR067041	SCREW	LR067041 SCREW Clamp, M5 x 25	$1.19	1
HC1	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Vapour Line	$4.25	2
HC2	LR071368	CLIP - PIPE	LR071368 CLIP - PIPE	$2.31	7
HD1	LR067042	CLAMP - TUBE	LR067042 CLAMP - TUBE	$3.54	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.61	1
HN2	LR038544	NUT	LR038544 NUT 6 X 1.6MM	$2.01	2
5J249A	LR091677	TUBE - DIESEL EXHAUST FLUID FEED	LR091677 TUBE - DIESEL EXHAUST FLUID FEED To Diesel Exhaust Fluid Injector	$283.57	1
5J249B	LR091676	TUBE - DIESEL EXHAUST FLUID FEED	LR091676 TUBE - DIESEL EXHAUST FLUID FEED To Tank	$193.63	1
5J287	LR166795	INJECTOR - DIESEL EXHAUST FLUID	LR166795 INJECTOR - DIESEL EXHAUST FLUID To: LA247294	$259.69	1
5J287	LR166795	INJECTOR - DIESEL EXHAUST FLUID	LR166795 INJECTOR - DIESEL EXHAUST FLUID From: LA247295	$259.69	1
9N944	LR138487	BRACKET - FUEL LINES	LR138487 BRACKET - FUEL LINES	$31.69	1
9T527	LR138592	kIT - INJECTOR REFIT IN STOCK	LR138592 kIT - INJECTOR REFIT Diesel Exhaust Fluid / To: LA247305 IN STOCK	$22.34	1
9T527	LR138592	kIT - INJECTOR REFIT IN STOCK	LR138592 kIT - INJECTOR REFIT Diesel Exhaust Fluid / From: LA247306 IN STOCK	$22.34	1
12A659	LR139412	BRACKET - MODULE	LR139412 BRACKET - MODULE	$19.06	1
189E2	LR071241	CONTROL UNIT - AUXILIARY HEATER	LR071241 CONTROL UNIT - AUXILIARY HEATER Diesel Exhaust Fluid / To: JA770446	$133.87	1
189E2	LR117592	CONTROL UNIT - AUXILIARY HEATER	LR117592 CONTROL UNIT - AUXILIARY HEATER Diesel Exhaust Fluid / From: JA770447	$145.82	1
