Exhaust Gas Recirculation (Lh Side, Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200, L6 Diesel...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, L6 Diesel...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073739 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR082322 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR079931 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR083963 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR052757 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR082300 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
LR110290 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR095556 GASKET - EGR OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR082306 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
LR111568 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR082308 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
LR082308 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR082305 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
LR111572 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
View All

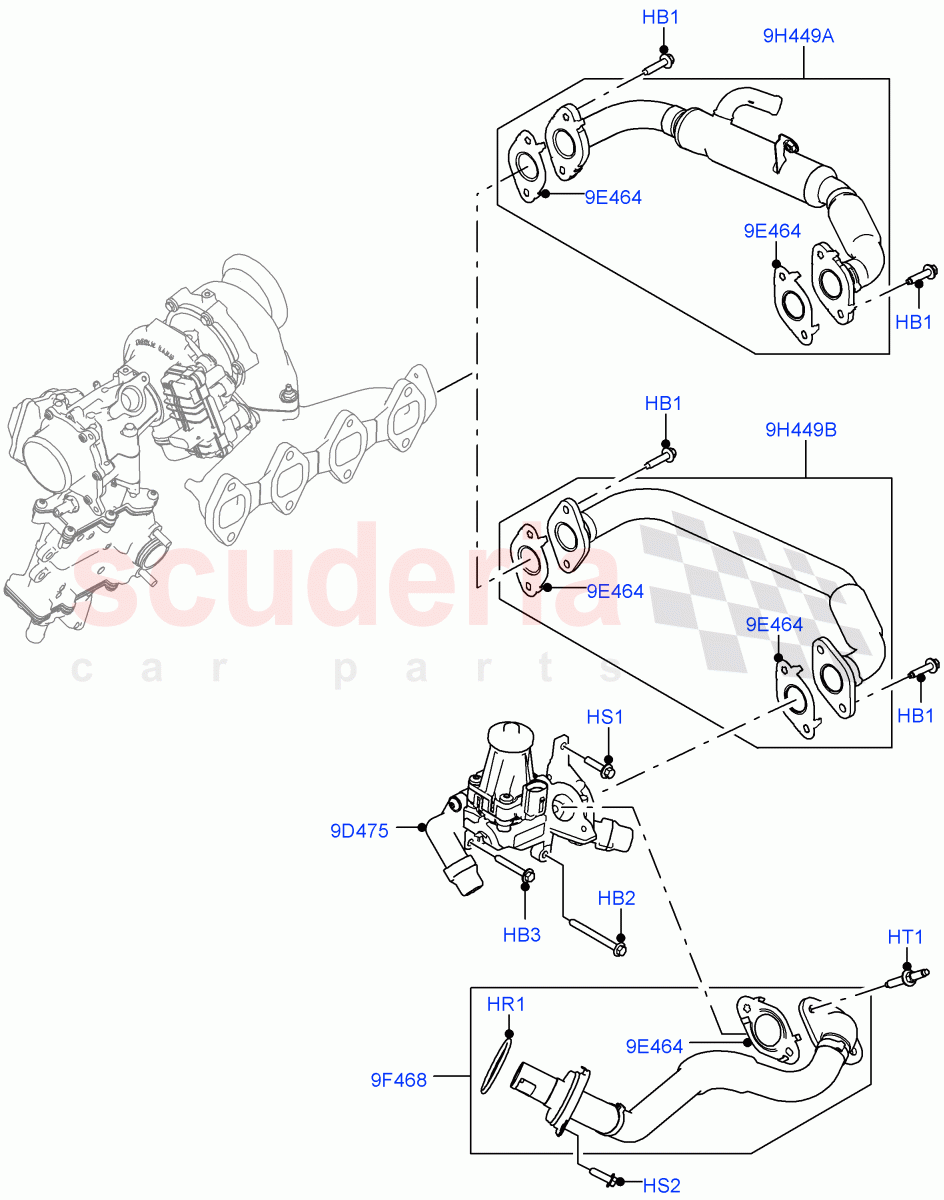

Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, L6 Diesel Emissions, 2.0L I4 DSL HIGH DOHC AJ200, Stage V Plus DPF, Japanese Emission + DPF, EU6 + DPF Emissions, DPF + DE-SOX) ((V) FROMHA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR073739
BOLT
M6 X 25MM / To: JA999999 		- 4 Enquire
HB2 LR082322
SCREW
M6 X 115 / To: JA999999 		- 1 Enquire
HB3 LR079931
SCREW
M6 X 40MM, Stud / To: JA999999 		- 1 Enquire
HR1 LR083963
O-RING
EGR Valve To Inlet Manifold / To: JA999999 		- 1 Enquire
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / To: JA999999 		- 3 Enquire
HS2 LR071774
SCREW
EGR Valve To Inlet Manifold, Hexagonal Head, M6 X 20MM / To: JA999999 		- 2 Enquire
HT1 LR052757
STUD
M6 X 25 / M6 X 15 / To: JA999999 		- 2 Enquire
9D475 LR082300
VALVE - EXHAUST GAS RECIRCULATION
With Cooler / To: JA731258 		- 1 Enquire
9D475 LR110290
VALVE - EXHAUST GAS RECIRCULATION
With Cooler / From: JA731259 / To: JA999999 		- 1 Enquire
9E464 LR095556
GASKET - EGR OUTLET
EGR Valve To Inlet Manifold / To: JA999999 		- 3 Enquire
9F468 LR082306
TUBE - EXHAUST GAS RECIRCULATION
To: JA731258 		- 1 Enquire
9F468 LR111568
TUBE - EXHAUST GAS RECIRCULATION
From: JA731259 / To: JA999999 		- 1 Enquire
9H449A LR082308
TUBE - EXHAUST GAS RECIRCULATION
2.0L I4 DSL MID DOHC AJ200 / With Cooling System Connectors / From: JA731259 / To: JA999999 		- 1 Enquire
9H449A LR082308
TUBE - EXHAUST GAS RECIRCULATION
2.0L I4 DSL MID DOHC AJ200 / With Cooling System Connectors / To: JA731258 		- 1 Enquire
9H449B LR082305
TUBE - EXHAUST GAS RECIRCULATION
2.0L I4 DSL HIGH DOHC AJ200 / To: JA731258 		- 1 Enquire
9H449B LR111572
TUBE - EXHAUST GAS RECIRCULATION
2.0L I4 DSL HIGH DOHC AJ200 / From: JA731259 / To: JA999999 		- 1 Enquire
