Name: Exhaust Gas Recirculation (LH Side) (2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF, Japanese Emission + DPF, DPF + DE-SOX, L6 Diesel Emissions) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Exhaust Gas Recirculation (LH Side) (2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF, Japanese Emission + DPF, DPF + DE-SOX, L6 Diesel Emissions) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (LH Side) (2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF, Japanese...

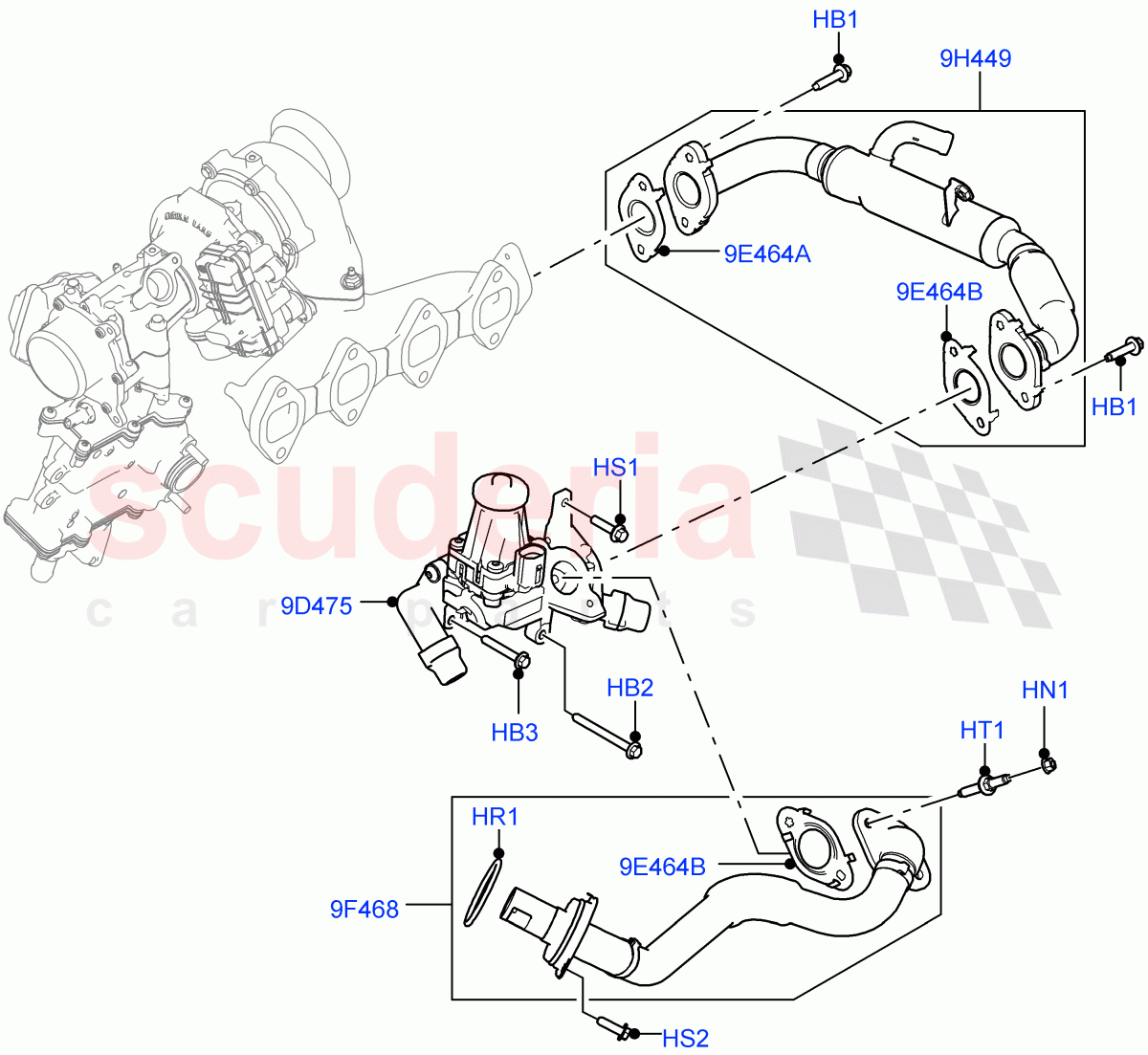

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082322	SCREW	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079931	SCREW	$5.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083963	O-RING	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052757	STUD	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110290	VALVE - EXHAUST GAS RECIRCULATION	$473.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111568	TUBE - EXHAUST GAS RECIRCULATION	$129.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082308	TUBE - EXHAUST GAS RECIRCULATION	$103.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095556	GASKET - EGR OUTLET	$13.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082314	GASKET - EXHAUST MANIFOLD	$9.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR073739	BOLT	LR073739 BOLT M6 X 25MM, Pipe - Exhaust Crossover / From: KA000001	$1.28	4
HB2	LR082322	SCREW	LR082322 SCREW EGR Valve To Inlet Manifold, M6 X 115 / From: KA000001	$1.96	1
HB3	LR079931	SCREW	LR079931 SCREW M6 X 40MM, Stud / From: KA000001	$5.09	1
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: KA000001	$1.40	1
HR1	LR083963	O-RING	LR083963 O-RING EGR Valve To Inlet Manifold / From: KA000001	$5.96	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$1.54	1
HS2	LR071774	SCREW	LR071774 SCREW EGR Valve To Inlet Manifold, Hexagonal Head, M6 X 20MM / From: KA000001	$2.23	2
HT1	LR052757	STUD	LR052757 STUD M6 X 25 / M6 X 15 / From: KA000001	$2.22	2
9D475	LR110290	VALVE - EXHAUST GAS RECIRCULATION	LR110290 VALVE - EXHAUST GAS RECIRCULATION With Cooler / From: KA000001	$473.13	1
9E464A	LR095556	GASKET - EGR OUTLET	LR095556 GASKET - EGR OUTLET RH, Pipe - Exhaust Crossover / From: KA000001	$13.56	1
9E464B	LR082314	GASKET - EXHAUST MANIFOLD	LR082314 GASKET - EXHAUST MANIFOLD LH, Pipe - Exhaust Crossover / From: KA000001	$9.17	1
9F468	LR111568	TUBE - EXHAUST GAS RECIRCULATION	LR111568 TUBE - EXHAUST GAS RECIRCULATION From: KA000001	$129.79	1
9H449	LR082308	TUBE - EXHAUST GAS RECIRCULATION	LR082308 TUBE - EXHAUST GAS RECIRCULATION Pipe - Exhaust Crossover / From: KA000001	$103.52	1
