Electrical Wiring - Engine And Dash (Engine) (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China))...

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Electrical Wiring - Engine And Dash (Engine) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China))...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
RYH500300 NUT - HEX. $0.58 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR068877 STUD $4.69 To Order
Photo Part No Description Price (each) Stock
LR045800 WIRING - FUEL SHUT OFF $79.53 To Order
Photo Part No Description Price (each) Stock
LR065057 WIRING - ENGINE $2,665.29 To Order
LR083494 WIRING - ENGINE $2,558.38 To Order
Photo Part No Description Price (each) Stock
LR060246 BRACKET - WIRING $13.47 To Order
Photo Part No Description Price (each) Stock
LR052669 CABLE - BATTERY TO STARTER MOTOR $80.23 To Order
Photo Part No Description Price (each) Stock
LR057240 BRACKET - WIRING $22.57 To Order
Photo Part No Description Price (each) Stock
LR047596 BRACKET - WIRING $7.16 To Order
View All

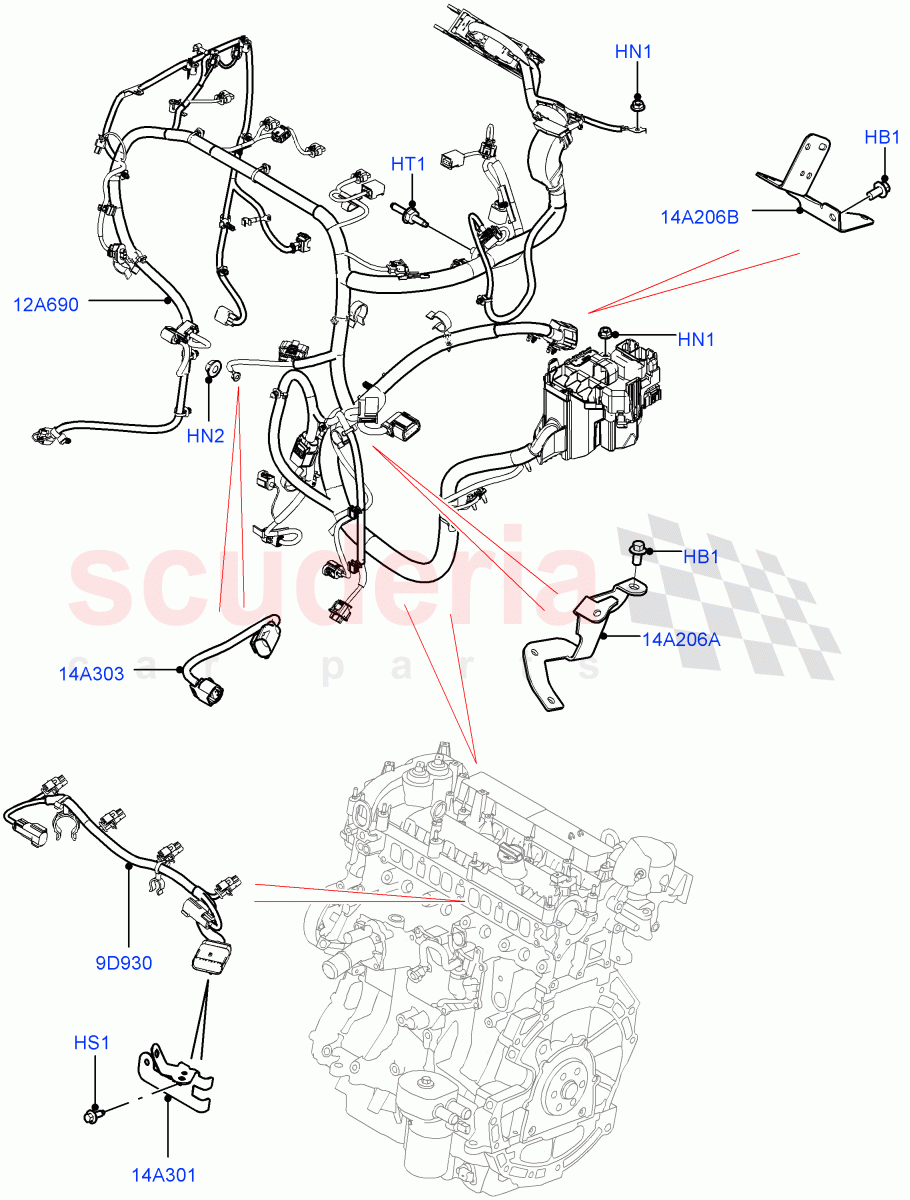

Electrical Wiring - Engine And Dash (Engine) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: EG000001
IN STOCK 		$0.63 1
HN1 FN106042
NUT
HEX Flange, Hexagonal Head, M6 / From: EG000001
IN STOCK 		$1.04 2
HN2 RYH500300
NUT - HEX.
Hexagonal Head, M6 / From: EG000001 		$0.58 1
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: EG000001 		$0.59 1
HT1 LR068877
STUD
Stud M6x15 + M6x22 / From: EG000001 		$4.69 1
9D930 LR045800
WIRING - FUEL SHUT OFF
Fuel Shut Off / From: EG000001 		$79.53 1
12A690 LR065057
WIRING - ENGINE
From: EG000001 / To: GG134737 		$2,665.29 1
12A690 LR083494
WIRING - ENGINE
From: GG134738 		$2,558.38 1
14A206A LR057240
BRACKET - WIRING
Transmission Control Harness / From: EG000001 		$22.57 1
14A206B LR047596
BRACKET - WIRING
From: EG000001 		$7.16 1
14A301 LR060246
BRACKET - WIRING
From: EG000001 		$13.47 1
14A303 LR052669
CABLE - BATTERY TO STARTER MOTOR
Starter - Stop/Start System / Link, Starter Cable / From: EG000001 		$80.23 1
