Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Electrical Wiring - Engine And Dash (Engine) (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500300 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR070822 WIRING - STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR094607 WIRING - ENGINE Enquire To Order
LR078923 WIRING - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
LR047596 BRACKET - WIRING Enquire To Order
View All

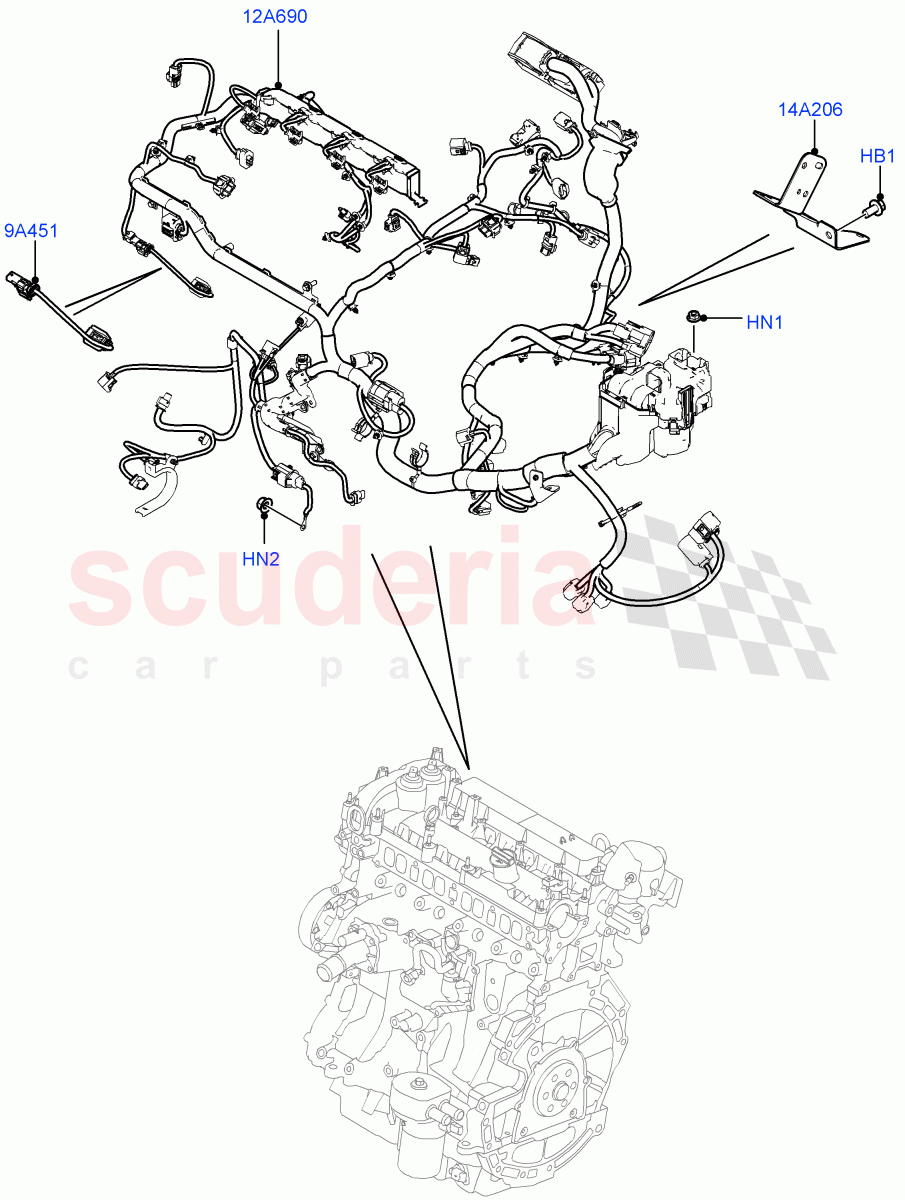

Electrical Wiring - Engine And Dash (Engine) (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V) FROMGT000001, (V) TOHT999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: GT000001 		- 1 Enquire
HN1 FN106042
NUT
HEX Flange, Hexagonal Head, M6 / From: GT000001 		- 3 Enquire
HN2 RYH500300
NUT - HEX.
Hexagonal Head, M6 / From: GT000001 		- 1 Enquire
9A451 LR070822
WIRING - STARTER MOTOR
For Engine Sensor / From: GT000001 		- 1 Enquire
12A690 LR094607
WIRING - ENGINE
From: HT000001 		- 1 Enquire
12A690 LR078923
WIRING - ENGINE
From: GT000001 / To: GT999999 		- 1 Enquire
14A206 LR047596
BRACKET - WIRING
From: GT000001 		- 1 Enquire
