Switches (Steering Wheel) (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Switches (Steering Wheel) (Changsu (China)) ((V) FROMEG000001)

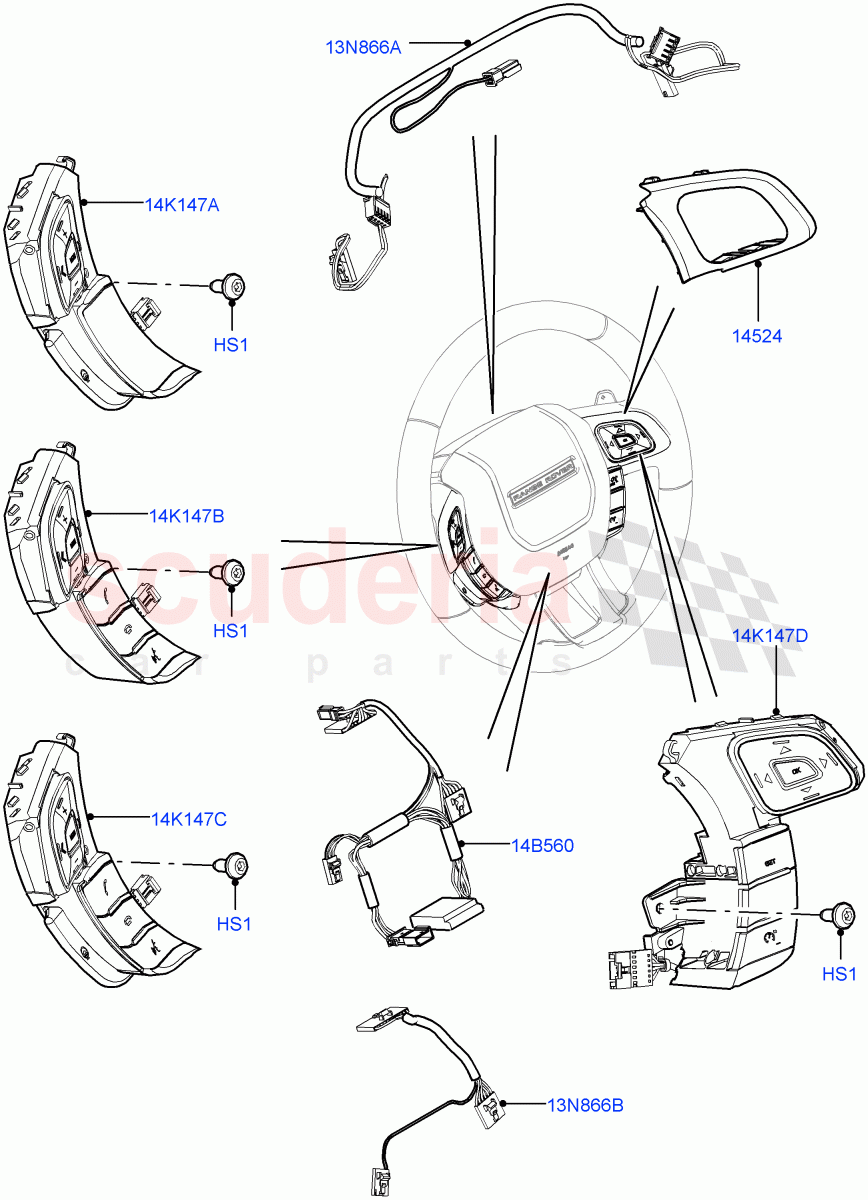

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYP500680	SCREW - PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032696	BEZEL - STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049490	MODULE - STEERING WHEEL CONTROL	Enquire	To Order
	LR072029	MODULE - STEERING WHEEL CONTROL	Enquire	To Order
	LR076026	MODULE - STEERING WHEEL CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031606	WIRE - SWITCHES	Enquire	To Order
	LR072034	WIRE - SWITCHES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050544	WIRING - STEERING WHEEL	Enquire	To Order
	LR072038	WIRING - STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048346	SWITCH - STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048347	SWITCH - STEERING WHEEL	Enquire	To Order
	LR071302	SWITCH - STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048348	SWITCH - STEERING WHEEL	Enquire	To Order
	LR071303	SWITCH - STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087451	SWITCH - STEERING WHEEL	Enquire	To Order
	LR087450	SWITCH - STEERING WHEEL	Enquire	To Order
	LR087453	SWITCH - STEERING WHEEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	RYP500680	SCREW - PAN HEAD	RYP500680 SCREW - PAN HEAD M4 x 10MM, Pan Head - Torx / From: EG000001	-	2	Enquire
13N866A	LR031606	WIRE - SWITCHES	LR031606 WIRE - SWITCHES From: EG000001 / To: GG134737	-	1	Enquire
13N866A	LR072034	WIRE - SWITCHES	LR072034 WIRE - SWITCHES From: GG134738	-	1	Enquire
13N866B	LR050544	WIRING - STEERING WHEEL	LR050544 WIRING - STEERING WHEEL Less Heated Steering Wheel / From: EG000001 / To: GG134737	-	1	Enquire
13N866B	LR072038	WIRING - STEERING WHEEL	LR072038 WIRING - STEERING WHEEL Less Heated Steering Wheel / From: GG134738	-	1	Enquire
14B560	LR049490	MODULE - STEERING WHEEL CONTROL	LR049490 MODULE - STEERING WHEEL CONTROL With Heated Steering Wheel / From: EG000001 / To: GG102365	-	1	Enquire
14B560	LR072029	MODULE - STEERING WHEEL CONTROL	LR072029 MODULE - STEERING WHEEL CONTROL With Heated Steering Wheel / From: GG134738	-	1	Enquire
14B560	LR076026	MODULE - STEERING WHEEL CONTROL	LR076026 MODULE - STEERING WHEEL CONTROL With Heated Steering Wheel / From: GG102366 / To: GG134737	-	1	Enquire
14K147A	LR048346	SWITCH - STEERING WHEEL	LR048346 SWITCH - STEERING WHEEL Less Bluetooth, Less Voice Input System, With Heated Steering Wheel / LH / From: EG000001	-	1	Enquire
14K147B	LR048347	SWITCH - STEERING WHEEL	LR048347 SWITCH - STEERING WHEEL Bluetooth Handsfree/Audiostream, Less Heated Steering Wheel / LH / From: EG000001 / To: GG134737	-	1	Enquire
14K147B	LR071302	SWITCH - STEERING WHEEL	LR071302 SWITCH - STEERING WHEEL Bluetooth Handsfree/Audiostream, Less Heated Steering Wheel / LH / From: GG134738	-	1	Enquire
14K147C	LR048348	SWITCH - STEERING WHEEL	LR048348 SWITCH - STEERING WHEEL Bluetooth Handsfree/Audiostream, With Heated Steering Wheel / LH / From: EG000001 / To: GG134737	-	1	Enquire
14K147C	LR071303	SWITCH - STEERING WHEEL	LR071303 SWITCH - STEERING WHEEL Bluetooth Handsfree/Audiostream, With Heated Steering Wheel / LH / From: GG134738	-	1	Enquire
14K147D	LR087451	SWITCH - STEERING WHEEL	LR087451 SWITCH - STEERING WHEEL With Speed Control / RH / From: GG134738	-	1	Enquire
14K147D	LR087450	SWITCH - STEERING WHEEL	LR087450 SWITCH - STEERING WHEEL Adaptive Speed Control+Queue Assist / RH / From: GG134738	-	1	Enquire
14K147D	LR087453	SWITCH - STEERING WHEEL	LR087453 SWITCH - STEERING WHEEL With Speed Control / RH / From: EG000001 / To: GG134737	-	1	Enquire
14K147D	LR087449	SWITCH - STEERING WHEEL	LR087449 SWITCH - STEERING WHEEL With Adaptive Speed Control / RH / From: EG000001 / To: GG134737	-	1	Enquire
14524	LR032696	BEZEL - STEERING WHEEL	LR032696 BEZEL - STEERING WHEEL Two Piece Kit / From: EG000001	-	1	Enquire
