Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Switches (Steering Column) (Halewood (UK))

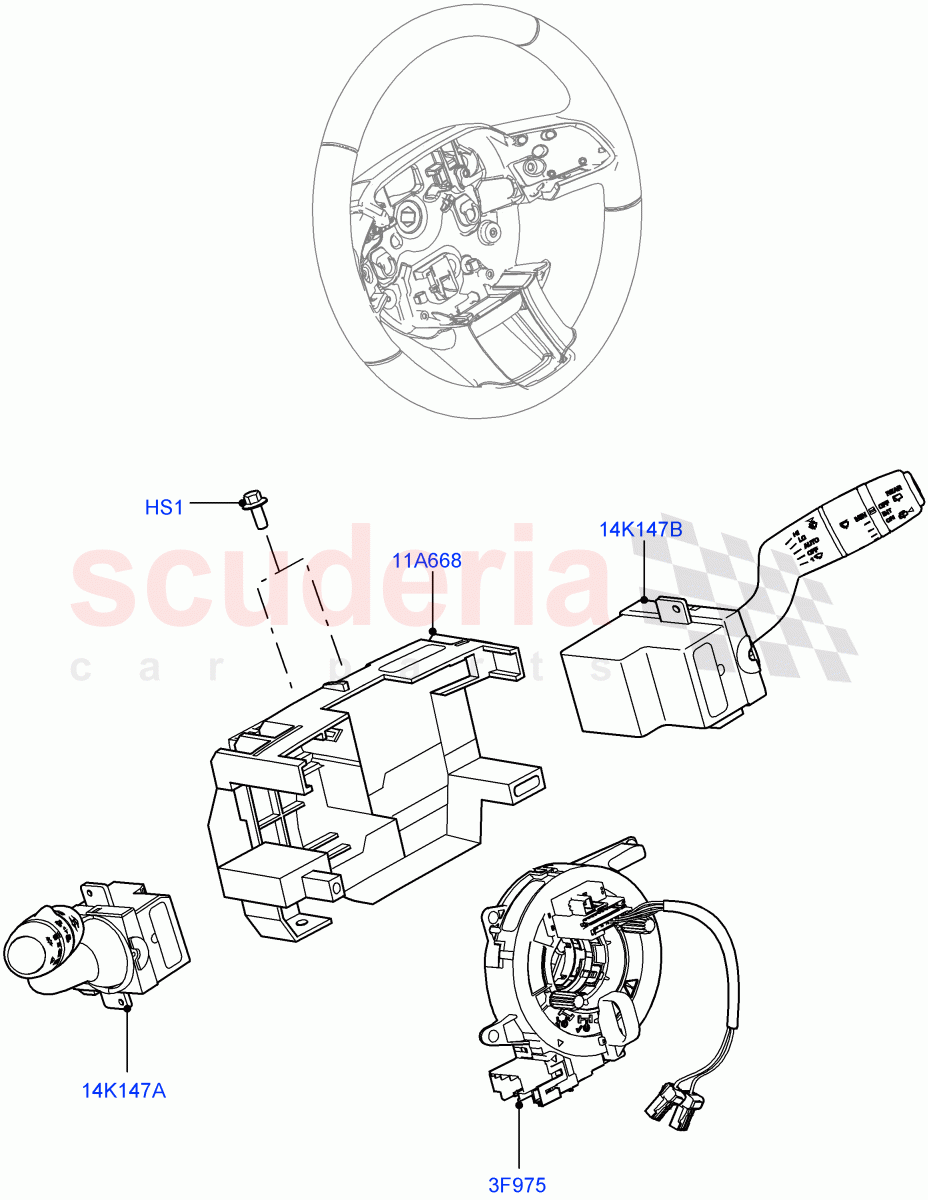

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYP500180	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042313	SENSOR - STEERING ROTATION	Enquire	To Order
	LR042314	SENSOR - STEERING ROTATION	Enquire	To Order
	LR024651	SENSOR - STEERING ROTATION	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024631	HOUSING - STEERING ANGLE SENSOR	Enquire	To Order
	LR042311	HOUSING - STEERING ANGLE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024624	SWITCH - DIRECTION INDICATOR	Enquire	To Order
	LR024625	SWITCH - DIRECTION INDICATOR	Enquire	To Order
	LR024626	SWITCH - DIRECTION INDICATOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024628	SWITCH - WASHER AND WIPER	Enquire	To Order
	LR024629	SWITCH - WASHER AND WIPER	Enquire	To Order
	LR125096	SWITCH - WASHER AND WIPER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	RYP500180	SCREW	RYP500180 SCREW M5 X 12MM, Torx	-	2	Enquire
3F975	LR042313	SENSOR - STEERING ROTATION	LR042313 SENSOR - STEERING ROTATION Less Heated Steering Wheel / From: EH000001 / To: GH142053	-	1	Enquire
3F975	LR042314	SENSOR - STEERING ROTATION	LR042314 SENSOR - STEERING ROTATION With Heated Steering Wheel / From: EH000001 / To: GH142053	-	1	Enquire
3F975	LR024651	SENSOR - STEERING ROTATION	LR024651 SENSOR - STEERING ROTATION Less Heated Steering Wheel / To: DH999999	-	1	Enquire
3F975	LR024653	SENSOR - STEERING ROTATION	LR024653 SENSOR - STEERING ROTATION With Heated Steering Wheel / To: DH999999	-	1	Enquire
3F975	LR084445	SENSOR - STEERING ROTATION	LR084445 SENSOR - STEERING ROTATION Less Heated Steering Wheel / From: GH142054 / To: HH227959	-	1	Enquire
3F975	LR101749	SENSOR - STEERING ROTATION	LR101749 SENSOR - STEERING ROTATION Less Heated Steering Wheel / From: HH227960	-	1	Enquire
3F975	LR084446	SENSOR - STEERING ROTATION	LR084446 SENSOR - STEERING ROTATION With Heated Steering Wheel / From: GH142054 / To: HH227959	-	1	Enquire
3F975	LR101748	SENSOR - STEERING ROTATION	LR101748 SENSOR - STEERING ROTATION With Heated Steering Wheel / From: HH227960	-	1	Enquire
11A668	LR024631	HOUSING - STEERING ANGLE SENSOR	LR024631 HOUSING - STEERING ANGLE SENSOR Housing Assy / To: DH999999	-	1	Enquire
11A668	LR042311	HOUSING - STEERING ANGLE SENSOR	LR042311 HOUSING - STEERING ANGLE SENSOR Housing Assy / From: EH000001	-	1	Enquire
14K147A	LR024624	SWITCH - DIRECTION INDICATOR	LR024624 SWITCH - DIRECTION INDICATOR Less Front Fog Lamps, With Conventional Headlamp Control / To: HH999999	-	1	Enquire
14K147A	LR024625	SWITCH - DIRECTION INDICATOR	LR024625 SWITCH - DIRECTION INDICATOR With Conventional Headlamp Control, With Front Fog Lamps / To: CH599999	-	1	Enquire
14K147A	LR024626	SWITCH - DIRECTION INDICATOR	LR024626 SWITCH - DIRECTION INDICATOR Less Front Fog Lamps, With Automatic Headlamp On/Off / To: CH599999	-	1	Enquire
14K147A	LR024627	SWITCH - DIRECTION INDICATOR	LR024627 SWITCH - DIRECTION INDICATOR With Automatic Headlamp On/Off, With Front Fog Lamps	-	1	Enquire
14K147A	LR125094	SWITCH - DIRECTION INDICATOR	LR125094 SWITCH - DIRECTION INDICATOR Less Front Fog Lamps, With Automatic Headlamp On/Off / From: CH600000	-	1	Enquire
14K147A	LR125091	SWITCH - DIRECTION INDICATOR	LR125091 SWITCH - DIRECTION INDICATOR With Conventional Headlamp Control, With Smoked Front Fog Lamps / From: CH600000	-	1	Enquire
14K147B	LR024628	SWITCH - WASHER AND WIPER	LR024628 SWITCH - WASHER AND WIPER Less Rain Sensor - Front W/Wiper / To: CH616708	-	1	Enquire
14K147B	LR024629	SWITCH - WASHER AND WIPER	LR024629 SWITCH - WASHER AND WIPER Rain Sensor - Fr Windscreen Wiper	-	1	Enquire
14K147B	LR125096	SWITCH - WASHER AND WIPER	LR125096 SWITCH - WASHER AND WIPER Less Rain Sensor - Front W/Wiper / From: CH616709	-	1	Enquire
