Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034126 CLIP - WIRING $9.62 To Order
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.90 To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW $0.54 To Order
Photo Part No Description Price (each) Stock
LR064942 WIRING - ENGINE COMPARTMENT $2,722.90 To Order
LR064943 WIRING - ENGINE COMPARTMENT $3,618.83 To Order
LR064944 WIRING - ENGINE COMPARTMENT $3,446.51 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028069 WIRING - WIPER MOTOR $106.08 To Order
Photo Part No Description Price (each) Stock
LR041240 WIRE - ENGINE EARTH $58.62 To Order
Photo Part No Description Price (each) Stock
LR077643 RELAY $26.72 To Order
Photo Part No Description Price (each) Stock
LR047607 BRACKET - WIRING $55.22 To Order
LR116243 BRACKET - NON AUXILIARY COOLER $25.05 To Order
View All

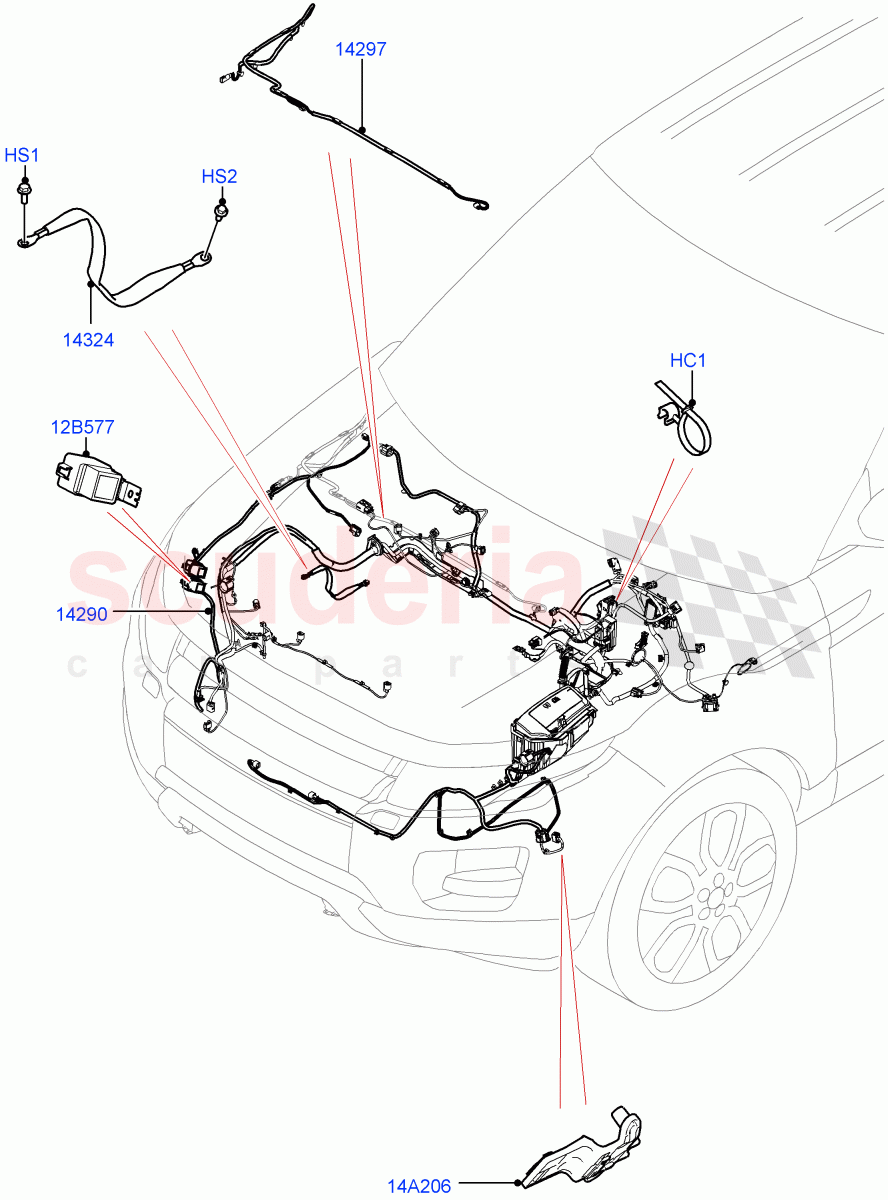

Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR034126
CLIP - WIRING
Clip And Strap Assy / From: EG000001 		$9.62 1
HS1 RYP500200
SCREW
Hexagonal Head, M6 X 20MM / From: EG000001 		$0.90 1
HS2 LR023697
SCREW
M6 X 16MM / From: EG000001 		$0.54 1
12B577 LR077643
RELAY
Headlamp / From: GG134738 		$26.72 1
14A206 LR047607
BRACKET - WIRING
From: EG000001 / To: GG999999 		$55.22 1
14A206 LR116243
BRACKET - NON AUXILIARY COOLER
2.0L I4 DSL MID DOHC AJ200 / From: HG000001 		$25.05 1
14290 LR064942
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Fuel Heater W/Pk Heat Less Remote, Less Camera System, Magnetic Damping System / From: EG000001 / To: GG134737 		$2,722.90 1
14290 LR064943
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Fuel Heater W/Pk Heat Less Remote, Magnetic Damping System, Surround Camera System / From: EG000001 / To: GG134737 		$3,618.83 1
14290 LR064944
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Fuel Fired Heater With Park Heat, Less Adaptive Damping, Rear View Camera-Fixed, With Adaptive Speed Control, With BI - Xenon Headlamps / From: EG000001 / To: GG134737 		$3,446.51 1
14290 LR064945
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Fuel Fired Heater With Park Heat, Less Adaptive Damping, Surround Camera System, With Adaptive Speed Control / From: EG000001 / To: GG134737 		$3,446.51 1
14290 LR064946
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Less Camera System, Magnetic Damping System, With Ptc Heater / From: EG000001 / To: GG134737 		$2,619.01 1
14290 LR064947
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Magnetic Damping System, Surround Camera System, With Ptc Heater / From: EG000001 / To: GG134737 		$2,619.01 1
14290 LR064948
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Less Adaptive Damping, Rear View Camera-Fixed, With Ptc Heater / From: EG000001 / To: GG134737 		$2,587.23 1
14290 LR064949
WIRING - ENGINE COMPARTMENT
9 Speed Auto AWD, Less Adaptive Damping, Surround Camera System, With Ptc Heater / From: EG000001 / To: GG134737 		$2,619.01 1
14290 LR088995
ENGINE BAY HARNESS
Requires VIN To Order / KSK harness / From: GG134738 		$2,627.25 1
14297 LR028069
WIRING - WIPER MOTOR
With Heated Washer Jet / From: EG000001 		$106.08 1
14324 LR041240
WIRE - ENGINE EARTH
Grounding Cable From Engine Support To Chassis Member / From: EG000001 		$58.62 1
