Switches (Steering Column) (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Switches (Steering Column) (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP500180 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
LR042313 SENSOR - STEERING ROTATION $224.45 To Order
LR042314 SENSOR - STEERING ROTATION $140.48 To Order
Photo Part No Description Price (each) Stock
LR042311 HOUSING - STEERING ANGLE SENSOR $96.78 To Order
Photo Part No Description Price (each) Stock
LR024627 SWITCH - DIRECTION INDICATOR $132.26 To Order
Photo Part No Description Price (each) Stock
LR024629 SWITCH - WASHER AND WIPER $195.82 To Order
View All

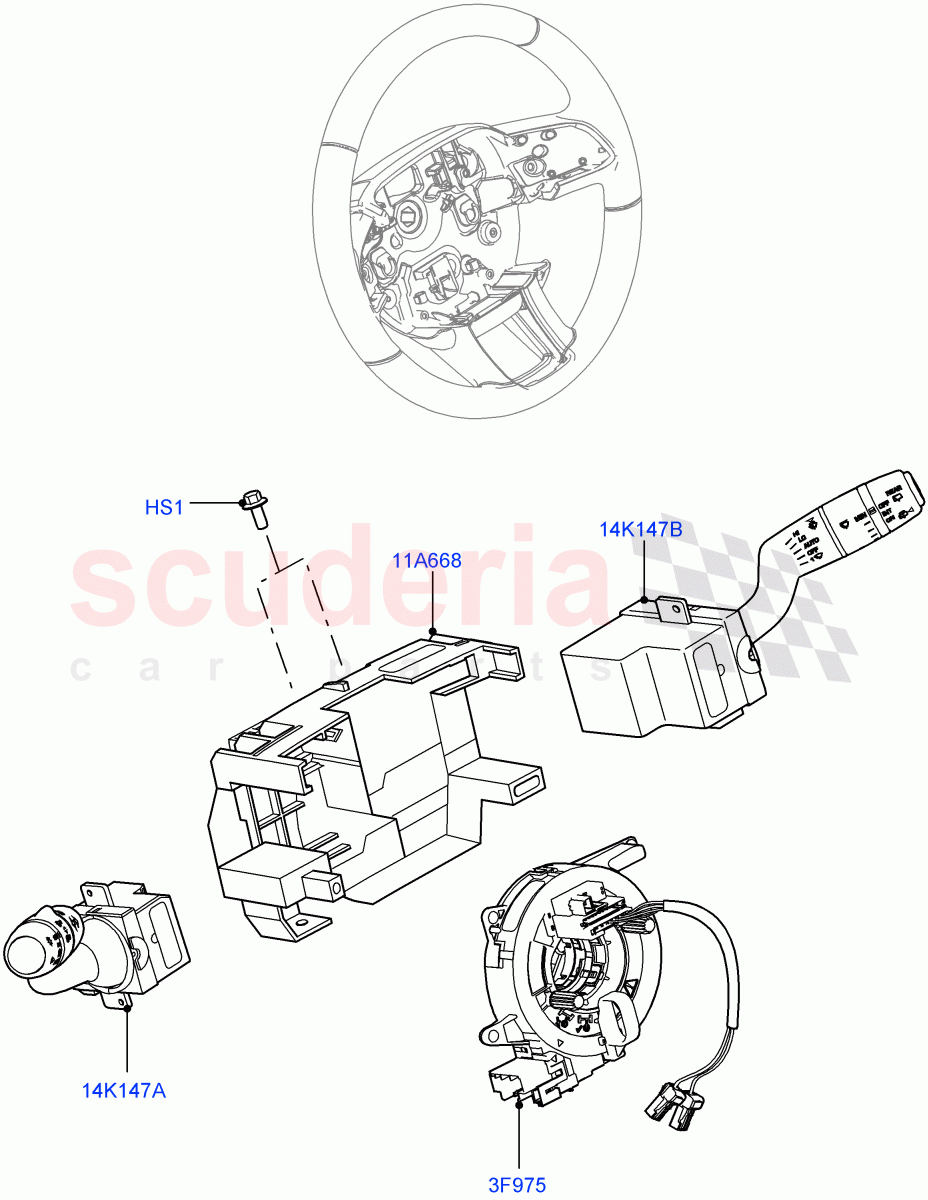

Switches (Steering Column) (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYP500180
SCREW
M5 X 12MM, Torx / From: EG000001 		$0.35 2
3F975 LR042313
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / From: EG000001 		$224.45 1
3F975 LR042314
SENSOR - STEERING ROTATION
With Heated Steering Wheel / From: EG000001 		$140.48 1
11A668 LR042311
HOUSING - STEERING ANGLE SENSOR
Housing Assy / From: EG000001 		$96.78 1
14K147A LR024627
SWITCH - DIRECTION INDICATOR
From: EG000001 		$132.26 1
14K147B LR024629
SWITCH - WASHER AND WIPER
Rain Sensor - Fr Windscreen Wiper / From: EG000001 		$195.82 1
