Electrical Wiring - Engine And Dash (Engine) (2.0L I4 High Dohc Aj200 Petrol, Changsu (China), 2.0L...

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Electrical Wiring - Engine And Dash (Engine) (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR042803 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR092199 WIRE - ALTERNATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR099966 WIRING - FUEL INJECTORS Enquire To Order
Photo Part No Description Price (each) Stock
LR116444 WIRING - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
LR111488 BRACKET - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR111487 BRACKET - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR107493 BRACKET - WIRING Enquire To Order
View All

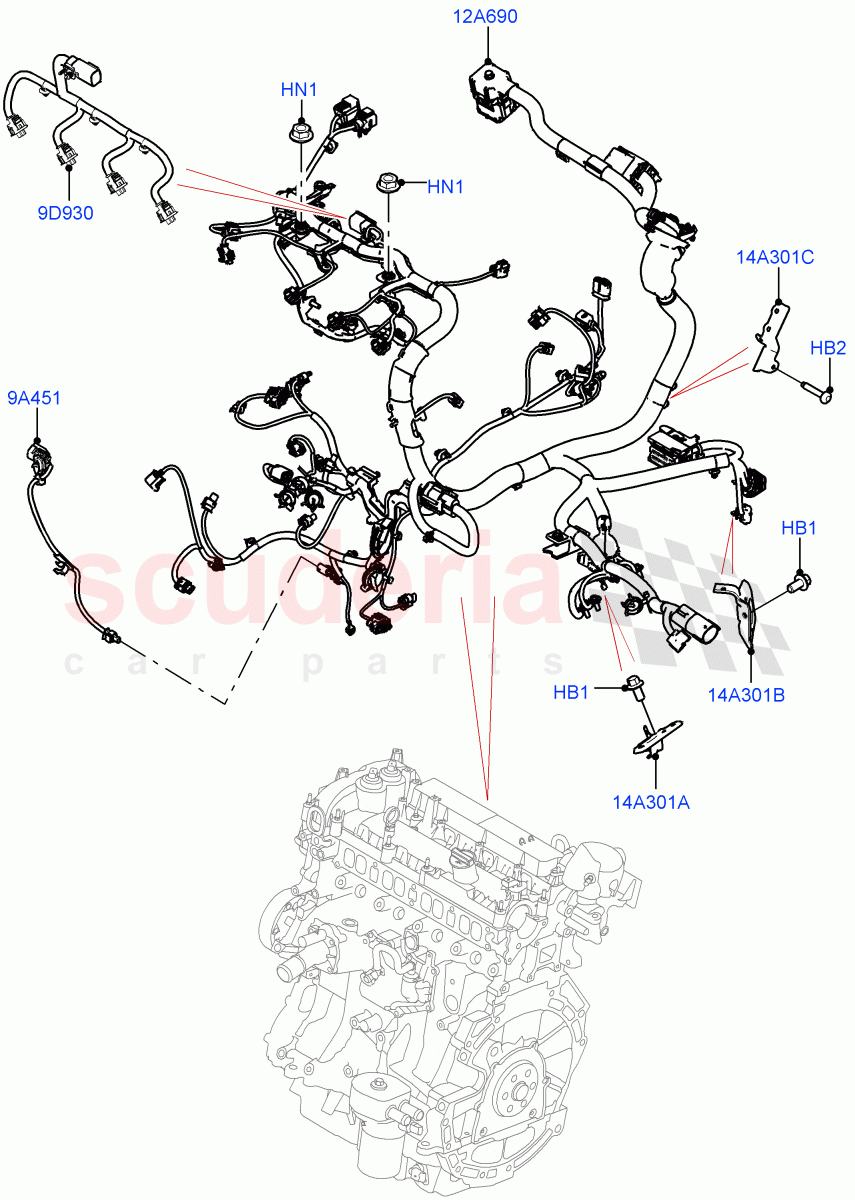

Electrical Wiring - Engine And Dash (Engine) (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHG161788) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: HG161788 		- 2 Enquire
HB2 LR042803
BOLT
M6 x 28MM, Torx / From: HG161788 		- 1 Enquire
HN1 LR087242
NUT - HEX.
M6 / From: HG161788 		- 2 Enquire
9A451 LR092199
WIRE - ALTERNATOR
From: HG161788 		- 1 Enquire
9D930 LR099966
WIRING - FUEL INJECTORS
Injector Harness / From: HG161788 		- 1 Enquire
12A690 LR116444
WIRING - ENGINE
Engine / From: HG161788 		- 1 Enquire
14A301A LR111488
BRACKET - WIRING
From: HG161788 		- 1 Enquire
14A301B LR111487
BRACKET - WIRING
From: HG161788 		- 1 Enquire
14A301C LR107493
BRACKET - WIRING
From: HG161788 		- 1 Enquire
