Speakers (Itatiaia (Brazil), Hi Line Audio System - 600 W) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Speakers (Itatiaia (Brazil), Hi Line Audio System - 600 W) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BNP4106 NUT $1.01 To Order
Photo Part No Description Price (each) Stock
LR066957 SCREW AND WASHER $4.25 To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
LR029193 SCREW $1.92 To Order
Photo Part No Description Price (each) Stock
LR025875 SPEAKER $72.69 To Order
Photo Part No Description Price (each) Stock
LR025876 SPEAKER $64.41 To Order
Photo Part No Description Price (each) Stock
LR079254 SPEAKER $117.86 To Order
Photo Part No Description Price (each) Stock
LR070142 SPEAKER $675.08 To Order
View All

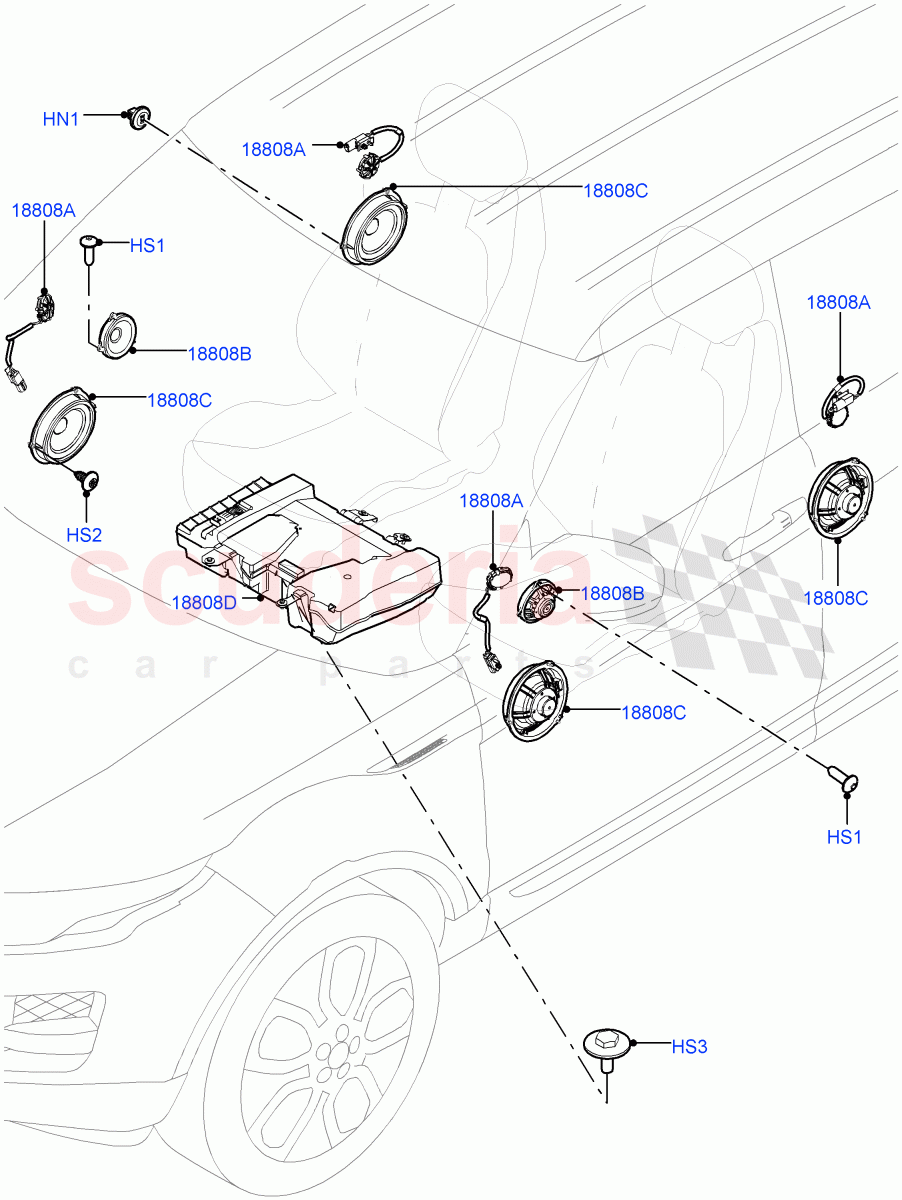

Speakers (Itatiaia (Brazil), Hi Line Audio System - 600 W) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 BNP4106
NUT
3 Door / 4.2 X 6.7 X 6.7, Plastic / From: GT000001 		$1.01 6
HS1 LR066957
SCREW AND WASHER
4.2 x 16MM / From: GT000001 		$4.25 6
HS2 VYP500060
SCREW
4.8 X 16MM, Torx / From: GT000001
IN STOCK 		$0.47 12
HS3 LR029193
SCREW
M6 X 16MM / From: GT000001 		$1.92 4
18808A LR025875
SPEAKER
Tweeter / From: GT000001 		$72.69 4
18808B LR025876
SPEAKER
100MM, Mid Range / From: GT000001 		$64.41 2
18808C LR079254
SPEAKER
165MM, Woofer / From: GT000001 		$117.86 4
18808D LR070142
SPEAKER
Sub-Woofer / From: GT000001 		$675.08 1
