Front Brake Discs And Calipers (Changsu (China)) ((V) Fromeg000001, (V) Togg134737)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Brake Discs And Calipers (Changsu (China)) ((V) FROMEG000001, (V) TOGG134737)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR058339 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR018509 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR068925 DISC - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR027309 BRAKE PADS - LESS SPRINGS Enquire To Order
Photo Part No Description Price (each) Stock
LR000377 SCREW - BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR028027 KIT - CALIPER SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR015386 CALIPER - BRAKE - LESS PADS Enquire To Order
LR015387 CALIPER - BRAKE - LESS PADS Enquire To Order
Photo Part No Description Price (each) Stock
LR069759 BRACKET - BRAKE CALIPER Enquire To Order
Photo Part No Description Price (each) Stock
LR002526 SPRING - BRAKE CALIPER Enquire To Order
Photo Part No Description Price (each) Stock
LR027111 SHIELD - BRAKE DISC SPLASH Enquire To Order
LR027110 SHIELD - BRAKE DISC SPLASH Enquire To Order
Photo Part No Description Price (each) Stock
LR027312 CAP - BLEED SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000751 KIT - CALIPER REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR003977 KIT - RETAINING PIN Enquire To Order
View All

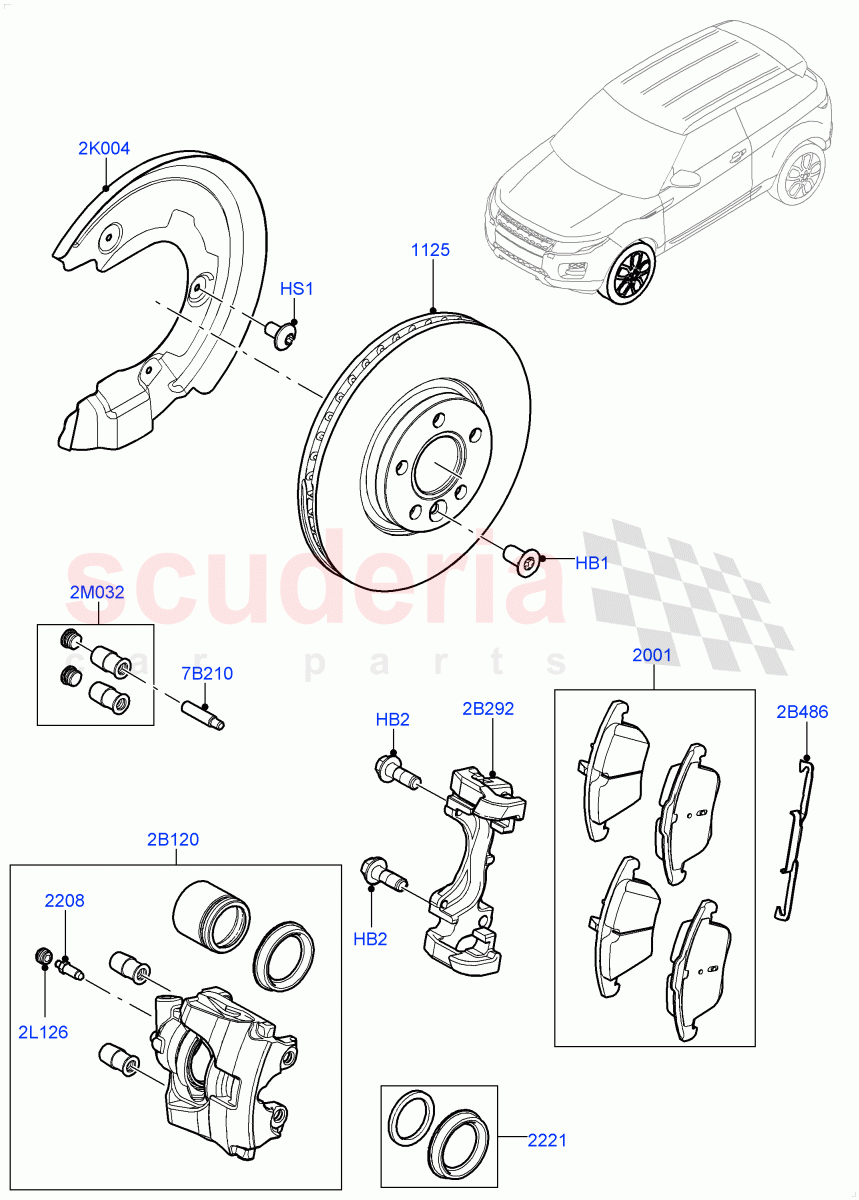

Front Brake Discs And Calipers (Changsu (China)) ((V) FROMEG000001, (V) TOGG134737) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: EG000001 / To: GG134737 		- 2 Enquire
HB2 LR058339
BOLT
M12 X 42MM / From: EG000001 / To: GG134737 		- 4 Enquire
HS1 LR018509
SCREW
M6 X 10MM, Torx / From: EG000001 / To: GG134737 		- 6 Enquire
2B120 LR015386
CALIPER - BRAKE - LESS PADS
RH / From: EG000001 / To: GG134737 		- 1 Enquire
2B120 LR015387
CALIPER - BRAKE - LESS PADS
LH / From: EG000001 / To: GG134737 		- 1 Enquire
2B292 LR069759
BRACKET - BRAKE CALIPER
RH/LH, To Caliper / From: EG000001 / To: GG134737 		- 2 Enquire
2B486 LR002526
SPRING - BRAKE CALIPER
From: EG000001 / To: GG134737 		- 2 Enquire
2K004 LR027111
SHIELD - BRAKE DISC SPLASH
RH / From: EG000001 / To: GG134737 		- 1 Enquire
2K004 LR027110
SHIELD - BRAKE DISC SPLASH
LH / From: EG000001 / To: GG134737 		- 1 Enquire
2L126 LR027312
CAP - BLEED SCREW
From: EG000001 / To: GG134737 		- 2 Enquire
2M032 LR000751
KIT - CALIPER REPAIR
From: EG000001 / To: GG134737 		- 2 Enquire
7B210 LR003977
KIT - RETAINING PIN
Pin - Slide / From: EG000001 / To: GG134737 		- 4 Enquire
1125 LR068925
DISC - BRAKE
300MM, For 16" Brakes, RH/LH / From: EG000001 		- 2 Enquire
2001 LR027309
BRAKE PADS - LESS SPRINGS
For 16" Brakes, Less Clips / From: EG000001 / To: GG134737 		- 1 Enquire
2208 LR000377
SCREW - BLEED
With Cap / From: EG000001 / To: GG134737 		- 2 Enquire
2221 LR028027
KIT - CALIPER SEAL
Boot, Seal - Piston / From: EG000001 / To: GG134737 		- 2 Enquire
