Front Brake Pipes (Lhd, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Brake Pipes (LHD, Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000084 CLIP $0.63 To Order
Photo Part No Description Price (each) Stock
LR000061 CLIP $0.50 To Order
Photo Part No Description Price (each) Stock
SYC100530 CLIP $2.08 IN STOCK
Photo Part No Description Price (each) Stock
LR000062 RING - RETAINING $1.26 To Order
Photo Part No Description Price (each) Stock
LR075356 HOSE - BRAKE $31.48 To Order
LR075355 HOSE - BRAKE $59.94 To Order
LR095287 HOSE - BRAKE $61.13 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR047421 TUBE - BRAKE - NYLON $87.42 To Order
Photo Part No Description Price (each) Stock
LR072027 KIT - BRAKE TUBES $127.34 To Order
Photo Part No Description Price (each) Stock
LR058018 TUBE - BRAKE $47.04 To Order
LR092358 TUBE - BRAKE $50.72 To Order
Photo Part No Description Price (each) Stock
LR058005 TUBE - BRAKE $51.65 To Order
View All

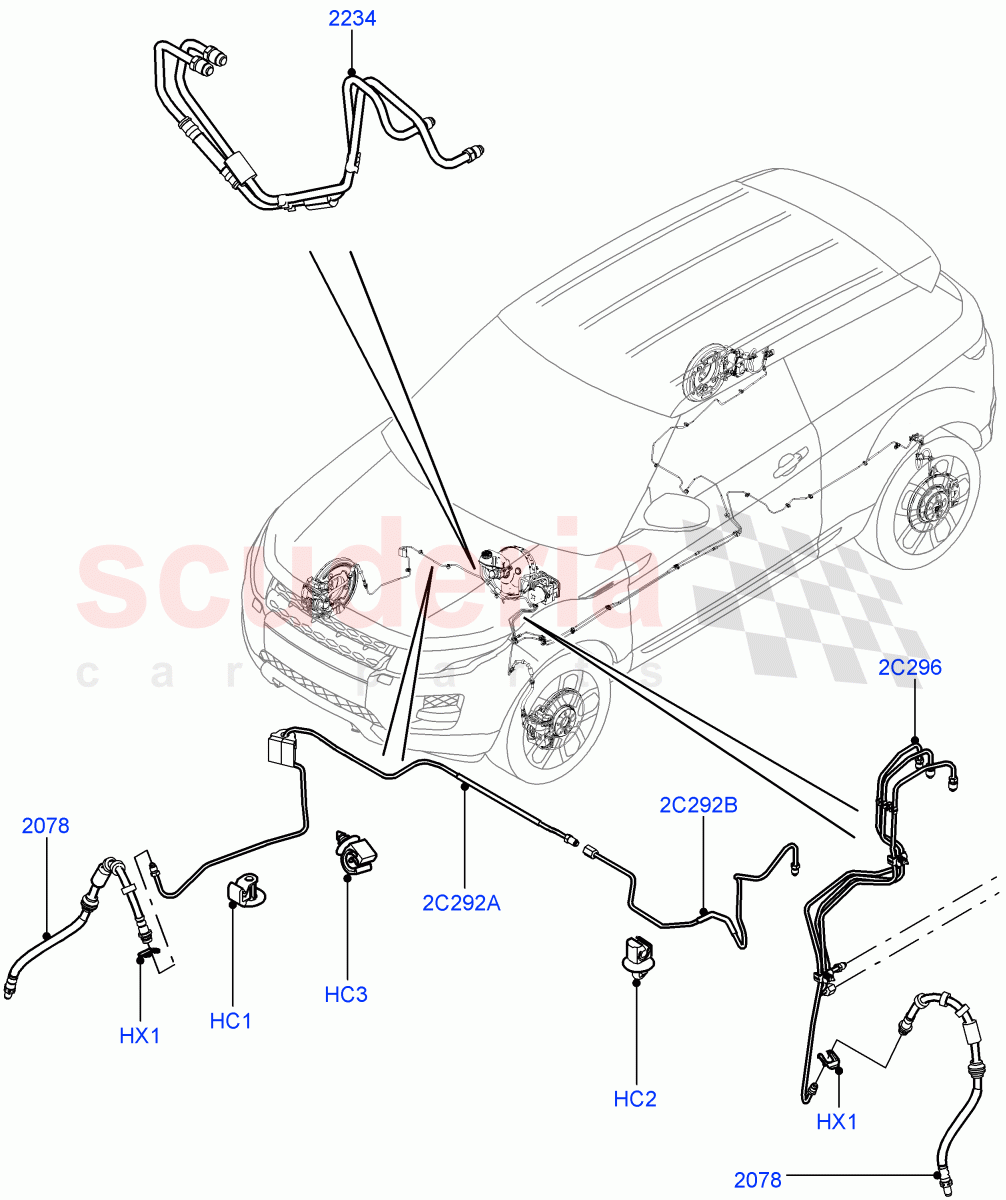

Front Brake Pipes (LHD, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR000084
CLIP
4.5-4.8 X M5, Single / From: GT000001 		$0.63 2
HC2 LR000061
CLIP
4.8 X 8 X 4, Single / From: GT000001 		$0.50 2
HC3 SYC100530
CLIP
Single / From: GT000001
IN STOCK 		$2.08 1
HX1 LR000062
RING - RETAINING
13 X 1 / From: GT000001 		$1.26 2
2C292A LR058018
TUBE - BRAKE
RH, Inner, Modulator To Brake Hose / From: GT000001 / To: HT999999 		$47.04 1
2C292A LR092358
TUBE - BRAKE
RH, Inner, Modulator To Brake Hose / From: JT000001 		$50.72 1
2C292B LR058005
TUBE - BRAKE
RH, Modulator To Brake Hose, Outer / From: GT000001 		$51.65 1
2C296 LR072027
KIT - BRAKE TUBES
From: GT000001 		$127.34 1
2078 LR075356
HOSE - BRAKE
RH, Flexible, To Caliper / From: GT000001 / To: HT999999 		$31.48 1
2078 LR075355
HOSE - BRAKE
LH, Flexible, To Caliper / From: GT000001 / To: HT999999 		$59.94 1
2078 LR095287
HOSE - BRAKE
Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / From: JT000001 		$61.13 1
2078 LR095288
HOSE - BRAKE
Front Disc And Caliper Size 18 / RH, Flexible, To Caliper / From: JT003678 		$68.28 1
2078 LR095289
HOSE - BRAKE
Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / From: JT000001 		$61.13 1
2078 LR095286
HOSE - BRAKE
Front Disc And Caliper Size 18 / LH, Flexible, To Caliper / From: JT000001 / To: JT003677 		$69.18 1
2078 LR083651
HOSE - BRAKE
Front Disc And Caliper Size 18 / RH, Flexible, To Caliper / From: JT002531 / To: JT003677 		$69.65 1
2078 LR135816
HOSE - BRAKE
Front Disc And Caliper Size 18 / LH, Flexible, To Caliper / From: JT003678 		$67.83 1
2234 LR047421
TUBE - BRAKE - NYLON
Modulator To Brake Master Cylinder / From: GT000001 		$87.42 1
