Front Brake Pipes (Lhd, Halewood (Uk)) ((V) Fromeh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Brake Pipes (LHD, Halewood (UK)) ((V) FROMEH000001)

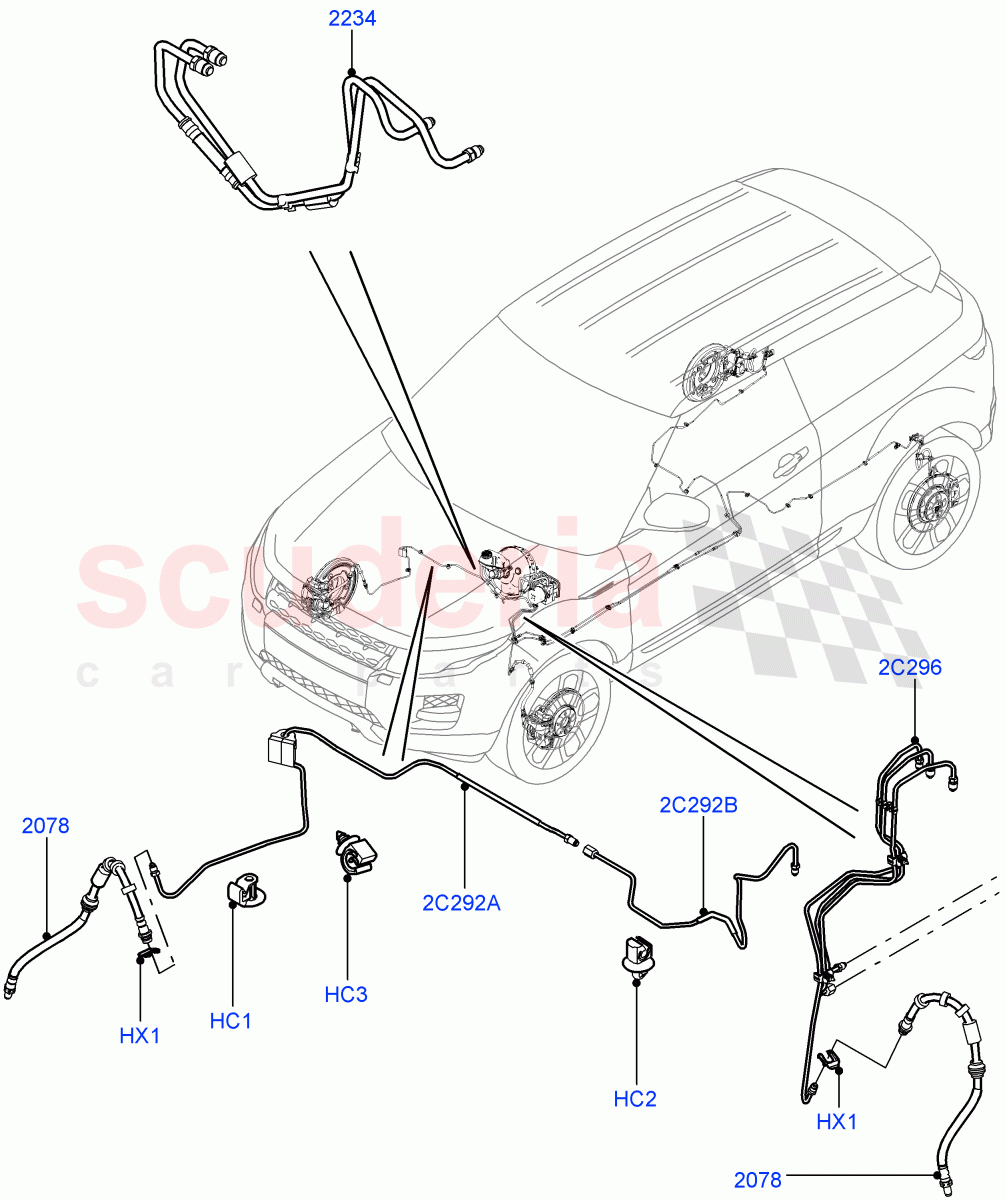

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000084 CLIP Enquire To Order
LR092361 CLIP - PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR000061 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
SYC100530 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR000062 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR045439 HOSE - BRAKE Enquire To Order
LR045439 HOSE - BRAKE Enquire To Order
LR075356 HOSE - BRAKE Enquire To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR047421 TUBE - BRAKE - NYLON Enquire To Order
Photo Part No Description Price (each) Stock
LR047423 KIT - BRAKE TUBES Enquire To Order
LR064609 KIT - BRAKE TUBES Enquire To Order
LR072027 KIT - BRAKE TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR047414 TUBE - BRAKE Enquire To Order
LR058018 TUBE - BRAKE Enquire To Order
LR092358 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR047415 Tube - Brake Enquire To Order
LR058005 TUBE - BRAKE Enquire To Order
LR074632 TUBE - BRAKE Enquire To Order
View All
Front Brake Pipes (LHD, Halewood (UK)) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR000084
CLIP
4.5-4.8 X M5, Single / From: EH000001 / To: HH214393 		- 2 Enquire
HC1 LR092361
CLIP - PIPE
4.5-4.8 X M5, Single / From: HH214394 		- 2 Enquire
HC2 LR000061
CLIP
4.8 X 8 X 4, Single / From: EH000001 		- 2 Enquire
HC3 SYC100530
CLIP
Single / From: EH000001 		- 1 Enquire
HX1 LR000062
RING - RETAINING
13 X 1 / From: EH000001 		- 2 Enquire
2C292A LR047414
TUBE - BRAKE
RH, Inner, Modulator To Brake Hose / From: EH000001 / To: EH868483 		- 1 Enquire
2C292A LR058018
TUBE - BRAKE
RH, Inner, Modulator To Brake Hose / From: EH868484 / To: HH999999 		- 1 Enquire
2C292A LR092358
TUBE - BRAKE
RH, Inner, Modulator To Brake Hose / From: JH000001 		- 1 Enquire
2C292B LR047415
Tube - Brake
RH, Modulator To Brake Hose, Outer / From: EH000001 / To: EH868483 		- 1 Enquire
2C292B LR058005
TUBE - BRAKE
RH, Modulator To Brake Hose, Outer / From: EH868484 / To: FH077413 		- 1 Enquire
2C292B LR074632
TUBE - BRAKE
RH, Modulator To Brake Hose, Outer / From: FH077414 		- 1 Enquire
2C296 LR047423
KIT - BRAKE TUBES
From: EH000001 / To: EH932495 		- 1 Enquire
2C296 LR064609
KIT - BRAKE TUBES
From: EH932496 / To: FH999999 		- 1 Enquire
2C296 LR072027
KIT - BRAKE TUBES
From: GH000001 		- 1 Enquire
2078 LR045439
HOSE - BRAKE
Flexible, RH/LH, To Caliper / From: EH000001 / To: FH999999 		- 2 Enquire
2078 LR045439
HOSE - BRAKE
6 Speed Manual Trans-JLR M66 2WD / Flexible, RH/LH, To Caliper / From: GH000001 / To: HH227749 		- 2 Enquire
2078 LR075356
HOSE - BRAKE
9 Speed Auto AWD / RH, Flexible, To Caliper / From: GH000001 / To: GH999999 		- 1 Enquire
2078 LR075356
HOSE - BRAKE
Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / From: HH000001 / To: HH227889 		- 1 Enquire
2078 LR075355
HOSE - BRAKE
9 Speed Auto AWD / LH, Flexible, To Caliper / From: GH000001 / To: GH999999 		- 1 Enquire
2078 LR075355
HOSE - BRAKE
Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / From: HH000001 / To: HH227889 		- 1 Enquire
2078 LR083651
HOSE - BRAKE
Front Disc And Caliper Size 18 / RH, Flexible, To Caliper / From: HH000001 / To: HH234787 		- 1 Enquire
2078 LR083652
HOSE - BRAKE
Front Disc And Caliper Size 18 / LH, Flexible, To Caliper / From: HH000001 / To: HH234787 		- 1 Enquire
2078 LR095287
HOSE - BRAKE
Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / From: HH227890 / To: KH329018 		- 1 Enquire
2078 LR095289
HOSE - BRAKE
Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / From: HH227890 / To: KH329018 		- 1 Enquire
2078 LR095290
HOSE - BRAKE
Front Disc And Caliper Size 16 / Flexible, RH/LH, To Caliper / From: HH227750 / To: KH329018 		- 2 Enquire
2078 LR095288
HOSE - BRAKE
Front Disc And Caliper Size 18 / RH, Flexible, To Caliper / From: HH234788 / To: KH329018 		- 1 Enquire
2078 LR095286
HOSE - BRAKE
Front Disc And Caliper Size 18 / LH, Flexible, To Caliper / From: HH234788 / To: KH329018 		- 1 Enquire
2078 LR135811
HOSE - BRAKE
Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / From: KH329019 		- 1 Enquire
2078 LR135813
HOSE - BRAKE
Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / From: KH329019 		- 1 Enquire
2078 LR135816
HOSE - BRAKE
Front Disc And Caliper Size 18 / LH, Flexible, To Caliper / From: KH329019 		- 1 Enquire
2078 LR135809
HOSE - BRAKE
Front Disc And Caliper Size 16 / Flexible, RH/LH, To Caliper / From: KH329019 		- 2 Enquire
2078 LR135815
HOSE - BRAKE
Front Disc And Caliper Size 18 / RH, Flexible, To Caliper / From: KH329019 		- 1 Enquire
2234 LR047421
TUBE - BRAKE - NYLON
Modulator To Brake Master Cylinder / From: EH000001 		- 1 Enquire
