Name: Anti-Lock Braking System (Halewood (UK)) ((V) FROMGH000001)
Rating: 4.1 (1 reviews)

Anti-Lock Braking System (Halewood (UK)) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Anti-Lock Braking System (Halewood (UK)) ((V) FROMGH000001)

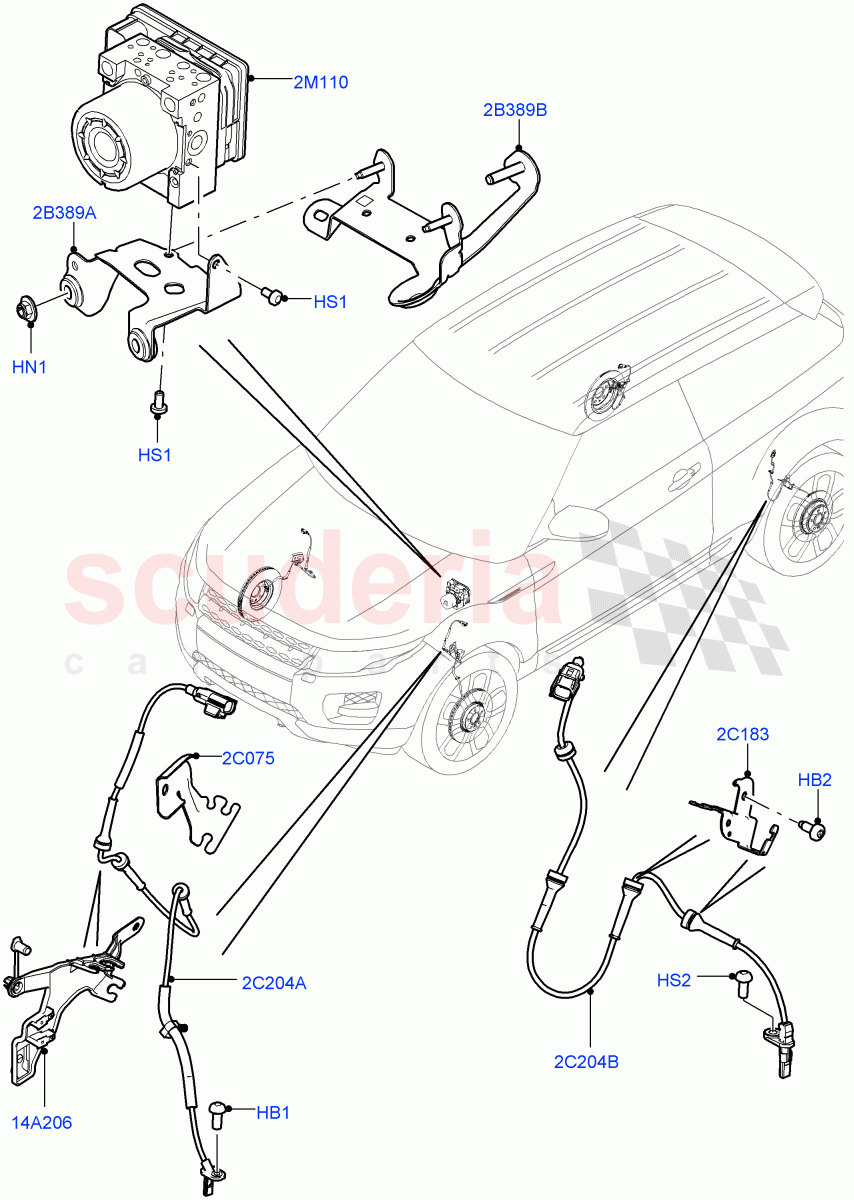

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024165	BOLT	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500540	NUT - SPECIAL	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500900	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061664	BRACKET - ABS SENSOR MOUNTING	$28.80	To Order
	LR024198	BRACKET - ABS SENSOR MOUNTING	$24.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072022	BRACKET - ABS SENSOR MOUNTING	$54.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079449	MODULATOR - ABS	$3,020.51	To Order
	LR079396	MODULATOR - ABS	$2,733.34	To Order
	LR084560	MODULATOR - ABS	$2,544.46	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028537	BRACKET - WIRING	$3.86	To Order
	LR028539	BRACKET - WIRING	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047449	BRACKET - ABS MODULATOR	$31.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048562	BRACKET - ABS SENSOR MOUNTING	$19.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071974	SENSOR - TRIPMINDER	$186.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066868	SENSOR - ABS	$105.92	To Order
	LR082224	SENSOR - ABS	$156.06	To Order
	LR089146	SENSOR - ABS	$180.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR024165	BOLT	LR024165 BOLT M5 X 12MM, Torx / From: GH000001	$2.78	2
HB2	XYG500160	BOLT IN STOCK	XYG500160 BOLT M6 x 12MM, Torx / From: GH000001 IN STOCK	$0.88	2
HN1	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL M6 / From: GH000001	$1.19	2
HS1	RYP500900	SCREW	RYP500900 SCREW M6 x 12MM, Torx / From: GH000001	$0.63	3
HS2	RYP500920	SCREW IN STOCK	RYP500920 SCREW M6 X 14MM, Torx / From: GH000001 IN STOCK	$0.72	2
2B389A	LR047449	BRACKET - ABS MODULATOR	LR047449 BRACKET - ABS MODULATOR ABS Modulator, Upper / From: GH000001	$31.40	1
2B389B	LR048562	BRACKET - ABS SENSOR MOUNTING	LR048562 BRACKET - ABS SENSOR MOUNTING ABS Modulator, Lower, Support Bracket / From: GH000001	$19.04	1
2C075	LR061664	BRACKET - ABS SENSOR MOUNTING	LR061664 BRACKET - ABS SENSOR MOUNTING LH, Front / From: GH000001	$28.80	1
2C075	LR024198	BRACKET - ABS SENSOR MOUNTING	LR024198 BRACKET - ABS SENSOR MOUNTING RH, Front / From: GH000001	$24.23	1
2C183	LR072022	BRACKET - ABS SENSOR MOUNTING	LR072022 BRACKET - ABS SENSOR MOUNTING From: GH000001	$54.38	1
2C204A	LR071974	SENSOR - TRIPMINDER	LR071974 SENSOR - TRIPMINDER ABS, Front / From: GH000001	$186.70	2
2C204B	LR066868	SENSOR - ABS	LR066868 SENSOR - ABS ABS, Rear / From: GH000001 / To: GH101987	$105.92	2
2C204B	LR082224	SENSOR - ABS	LR082224 SENSOR - ABS ABS, Rear / From: GH101988 / To: GH161138	$156.06	2
2C204B	LR089146	SENSOR - ABS	LR089146 SENSOR - ABS ABS, Rear / From: GH161139	$180.53	2
2M110	LR079449	MODULATOR - ABS	LR079449 MODULATOR - ABS ABS / From: GH081547 / To: GH102207	$3,020.51	1
2M110	LR079396	MODULATOR - ABS	LR079396 MODULATOR - ABS ABS / From: GH102208 / To: GH127268	$2,733.34	1
2M110	LR084560	MODULATOR - ABS	LR084560 MODULATOR - ABS ABS / From: GH127269 / To: GH166089	$2,544.46	1
2M110	LR098365	MODULATOR - ABS	LR098365 MODULATOR - ABS ABS / From: JH000001 / To: JH319734	$2,396.16	1
2M110	LR111856	MODULATOR - ABS	LR111856 MODULATOR - ABS ABS / From: GH166090 / To: GH167132	$2,933.69	1
2M110	LR070697	MODULATOR - ABS	LR070697 MODULATOR - ABS ABS / From: GH000001 / To: GH081546	$3,020.51	1
2M110	LR122808	MODULATOR - ABS	LR122808 MODULATOR - ABS ABS / From: GH167133 / To: GH999999	$2,876.13	1
2M110	LR083665	MODULATOR - ABS	LR083665 MODULATOR - ABS ABS / From: HH000001 / To: HH999999	$2,961.23	1
2M110	LR117895	CONTROL	LR117895 CONTROL ABS / From: JH319735 / To: JH999999	$2,635.96	1
2M110	LR117212	MODULATOR - ABS	LR117212 MODULATOR - ABS ABS / From: KH000001	$2,133.51	1
14A206	LR028537	BRACKET - WIRING	LR028537 BRACKET - WIRING LH / From: GH000001	$3.86	1
14A206	LR028539	BRACKET - WIRING	LR028539 BRACKET - WIRING RH / From: GH000001	$3.98	1

Anti-Lock Braking System (Halewood (Uk)) ((V) Fromgh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Anti-Lock Braking System (Halewood (UK)) ((V) FROMGH000001)
