Rear Brake Pipes (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

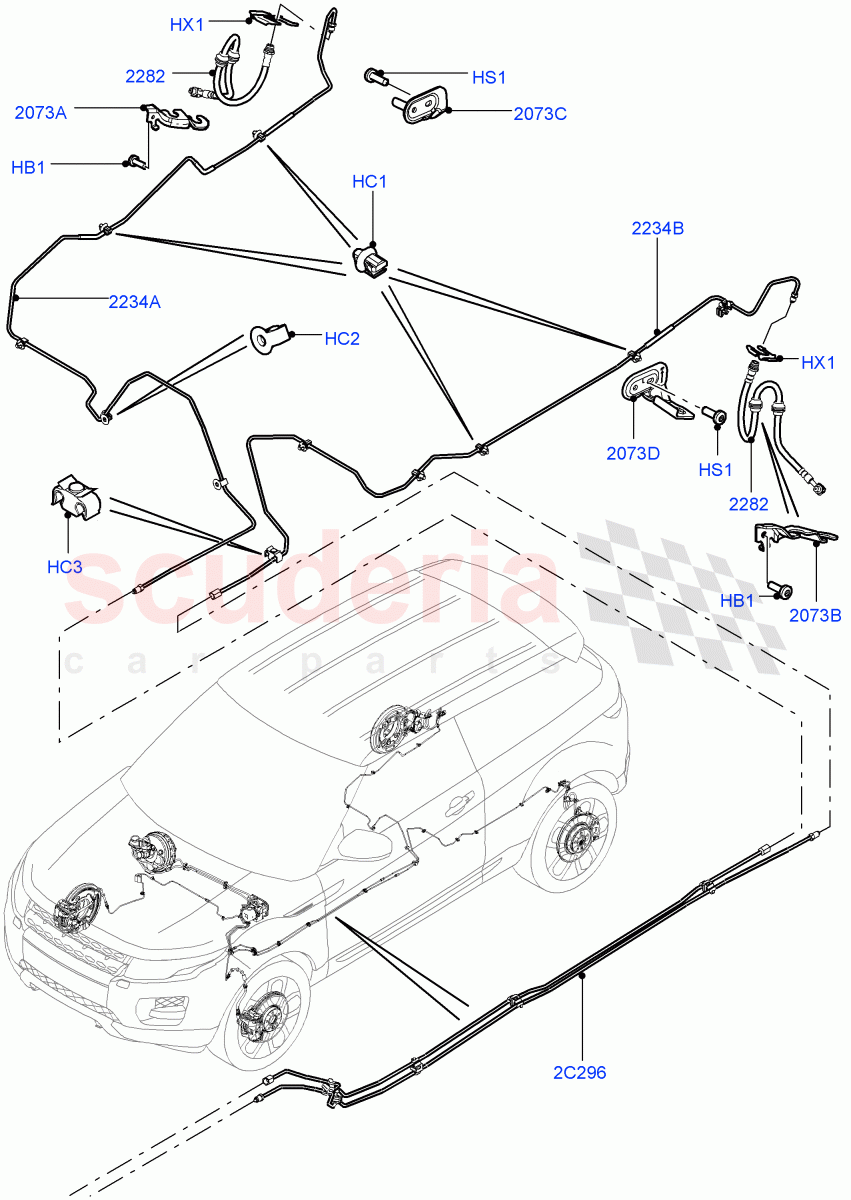

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Brake Pipes (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000084	CLIP	Enquire	To Order
	LR092361	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR1864	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003808	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000062	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044896	HOSE - BRAKE	Enquire	To Order
	LR044896	HOSE - BRAKE	Enquire	To Order
	LR072026	HOSE - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024460	BRACKET - BRAKE HOSE	Enquire	To Order
	LR071957	BRACKET - BRAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024461	BRACKET - BRAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005265	BRACKET - BRAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005266	BRACKET - BRAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024465	TUBE - BRAKE	Enquire	To Order
	LR035289	TUBE - BRAKE	Enquire	To Order
	LR041433	TUBE - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024468	TUBE	Enquire	To Order
	LR061658	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024464	PIPE - BRAKE	Enquire	To Order
	LR047431	KIT - BRAKE TUBES	Enquire	To Order
	LR079448	KIT - BRAKE TUBES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx	-	2	Enquire
HC1	LR000061	CLIP	LR000061 CLIP 4.8 X 8 X 4, Brake Hose, Single	-	8	Enquire
HC2	LR000084	CLIP	LR000084 CLIP 4.5-4.8 X M5, Single / To: HH214393	-	2	Enquire
HC2	LR092361	CLIP - PIPE	LR092361 CLIP - PIPE 4.5-4.8 X M5, Single / From: HH214394	-	2	Enquire
HC3	ANR1864	CLIP - BRAKE PIPE	ANR1864 CLIP - BRAKE PIPE Double	-	1	Enquire
HS1	LR003808	BOLT - HEX.HEAD	LR003808 BOLT - HEX.HEAD M6 X 16MM, Torx	-	4	Enquire
HX1	LR000062	RING - RETAINING	LR000062 RING - RETAINING 13 X 1	-	2	Enquire
2C296	LR024464	PIPE - BRAKE	LR024464 PIPE - BRAKE Under Floor / To: DH999999	-	1	Enquire
2C296	LR047431	KIT - BRAKE TUBES	LR047431 KIT - BRAKE TUBES Under Floor / From: EH000001 / To: EH896754	-	1	Enquire
2C296	LR079448	KIT - BRAKE TUBES	LR079448 KIT - BRAKE TUBES Under Floor / From: GH086344	-	1	Enquire
2C296	LR061017	KIT - BRAKE TUBES	LR061017 KIT - BRAKE TUBES Under Floor / From: EH896755 / To: FH035511	-	1	Enquire
2C296	LR071988	KIT - BRAKE TUBES	LR071988 KIT - BRAKE TUBES Under Floor / From: FH035512 / To: GH086343	-	1	Enquire
2073A	LR024460	BRACKET - BRAKE HOSE	LR024460 BRACKET - BRAKE HOSE RH, Brake Hose / To: FH021059	-	1	Enquire
2073A	LR071957	BRACKET - BRAKE HOSE	LR071957 BRACKET - BRAKE HOSE RH, Brake Hose / From: FH021060	-	1	Enquire
2073B	LR024461	BRACKET - BRAKE HOSE	LR024461 BRACKET - BRAKE HOSE LH, Brake Hose	-	1	Enquire
2073C	LR005265	BRACKET - BRAKE HOSE	LR005265 BRACKET - BRAKE HOSE RH, Brake Hose, Support Bracket	-	1	Enquire
2073D	LR005266	BRACKET - BRAKE HOSE	LR005266 BRACKET - BRAKE HOSE LH, Brake Hose, Support Bracket	-	1	Enquire
2234A	LR024465	TUBE - BRAKE	LR024465 TUBE - BRAKE RH / To: CH628820	-	1	Enquire
2234A	LR035289	TUBE - BRAKE	LR035289 TUBE - BRAKE RH / From: CH628821 / To: CH677714	-	1	Enquire
2234A	LR041433	TUBE - BRAKE	LR041433 TUBE - BRAKE RH / From: CH677715 / To: EH932495	-	1	Enquire
2234A	LR064714	TUBE - BRAKE	LR064714 TUBE - BRAKE RH / From: EH932496	-	1	Enquire
2234B	LR024468	TUBE	LR024468 TUBE LH / To: EH896754	-	1	Enquire
2234B	LR061658	TUBE - BRAKE	LR061658 TUBE - BRAKE LH / From: EH896755	-	1	Enquire
2282	LR044896	HOSE - BRAKE	LR044896 HOSE - BRAKE Includes Banjo Bolt, To Caliper / To: DH718193	-	2	Enquire
2282	LR044896	HOSE - BRAKE	LR044896 HOSE - BRAKE Includes Banjo Bolt, To Caliper / From: DH718194 / To: FH999999	-	2	Enquire
2282	LR072026	HOSE - BRAKE	LR072026 HOSE - BRAKE RH, Includes Banjo Bolt, To Caliper / From: GH000001	-	1	Enquire
2282	LR072025	HOSE - BRAKE	LR072025 HOSE - BRAKE LH, Includes Banjo Bolt, To Caliper / From: GH000001	-	1	Enquire
