Front Brake Discs And Calipers (Halewood (Uk), Front Disc And Caliper Size 18) ((V) Fromhh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Brake Discs And Calipers (Halewood (UK), Front Disc And Caliper Size 18) ((V) FROMHH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.05 IN STOCK
Photo Part No Description Price (each) Stock
LR058339 BOLT $4.30 IN STOCK
LR090697 BOLT $3.39 To Order
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
LR083647 DISC - BRAKE - VENTED $194.09 To Order
Photo Part No Description Price (each) Stock
LR091308 BRAKE PADS - LESS SPRINGS $272.62 To Order
LR091568 BRAKE PADS - LESS SPRINGS $466.59 To Order
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.46 IN STOCK
Photo Part No Description Price (each) Stock
LR015525 COVER - DUST $23.72 To Order
Photo Part No Description Price (each) Stock
LR020053 GREASE - CHASSIS LUBRICATION $3.48 IN STOCK
Photo Part No Description Price (each) Stock
LR091302 CALIPER - BRAKE - LESS PADS $510.61 To Order
LR091303 CALIPER - BRAKE - LESS PADS $510.61 To Order
Photo Part No Description Price (each) Stock
LR101970 BRACKET - BRAKE CALIPER $149.37 To Order
LR101971 BRACKET - BRAKE CALIPER $139.65 To Order
Photo Part No Description Price (each) Stock
LR091306 KIT - LOCATING PIN BOLTS $21.42 To Order
Photo Part No Description Price (each) Stock
LR083650 SHIELD - SPLASH $84.08 To Order
LR083649 SHIELD - SPLASH $84.08 To Order
LR118812 SHIELD - SPLASH $73.60 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
STC1913 CAP - BLEED SCREW $5.90 IN STOCK
Photo Part No Description Price (each) Stock
LR091309 CALIPER BRAKE PAD MTG PARTS $26.27 To Order
LR086604 KIT - CALIPER BRAKE PAD MTG PARTS $29.47 To Order
Photo Part No Description Price (each) Stock
LR083646 WIRE - BRAKE PAD WEAR WARNING $39.56 To Order
Photo Part No Description Price (each) Stock
LR091307 BRACKET - WIRING $31.07 To Order
Photo Part No Description Price (each) Stock
LR079314 BRACKET - WIRING CONNECTOR $35.24 To Order
View All

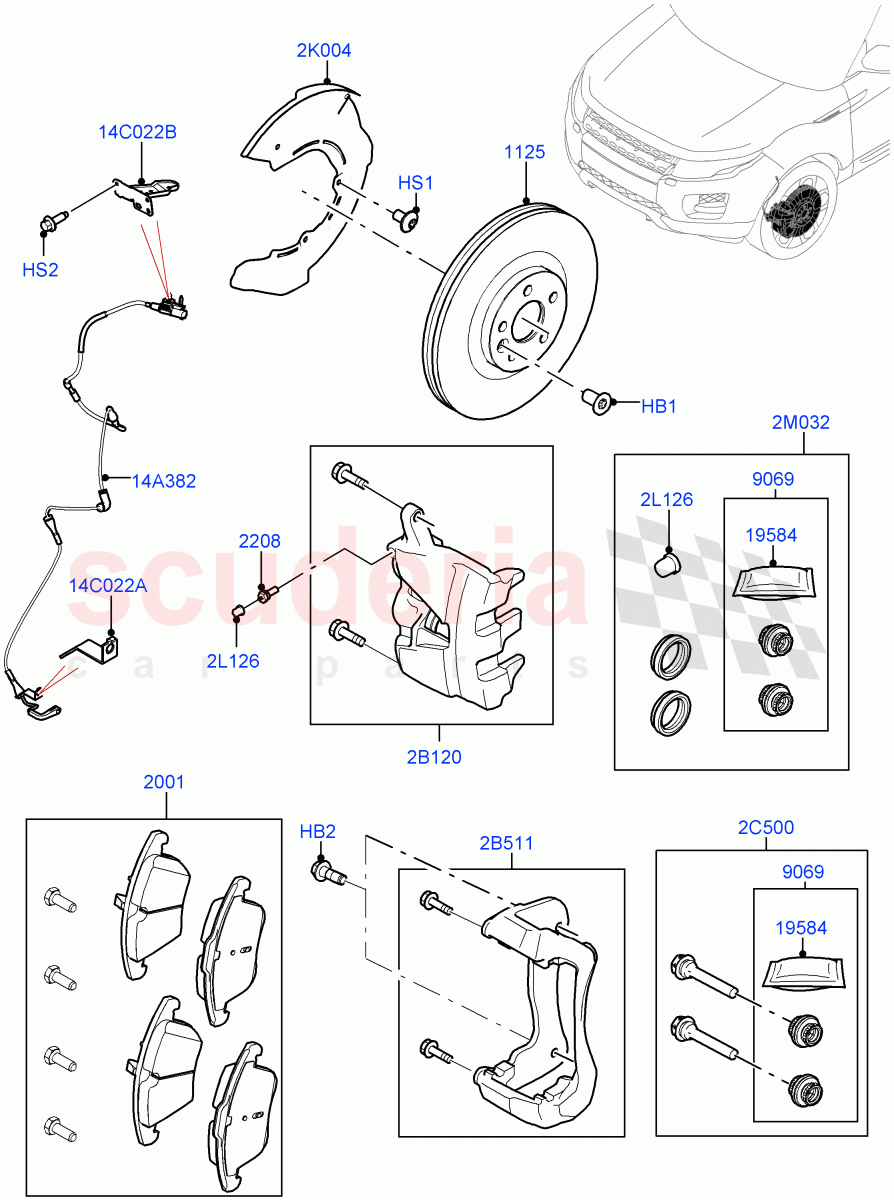

Front Brake Discs And Calipers (Halewood (UK), Front Disc And Caliper Size 18) ((V) FROMHH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: HH000001
IN STOCK 		$3.05 2
HB2 LR058339
BOLT
M12 X 42MM / From: HH000001 / To: HH226668
IN STOCK 		$4.30 4
HB2 LR090697
BOLT
Hexagonal Head, M14 X 43mm / From: HH226669 		$3.39 4
HS1 LR018509
SCREW
M6 X 10MM, Torx / From: HH000001
IN STOCK 		$1.19 6
HS2 RYG500190
SCREW
Hexagonal Head, M6 X 16MM / From: HH000001
IN STOCK 		$0.70 2
2B120 LR091302
CALIPER - BRAKE - LESS PADS
RH, For 18" Brakes / From: HH000001 		$510.61 1
2B120 LR091303
CALIPER - BRAKE - LESS PADS
LH, For 18" Brakes / From: HH000001 		$510.61 1
2B511 LR101970
BRACKET - BRAKE CALIPER
RH / From: HH000001 		$149.37 1
2B511 LR101971
BRACKET - BRAKE CALIPER
LH / From: HH000001 		$139.65 1
2C500 LR091306
KIT - LOCATING PIN BOLTS
Caliper Set, Pin And Boot / From: HH000001 		$21.42 2
2K004 LR083650
SHIELD - SPLASH
LH / From: HH000001 / To: KH354088 		$84.08 1
2K004 LR083649
SHIELD - SPLASH
RH / From: HH000001 / To: KH354088 		$84.08 1
2K004 LR118812
SHIELD - SPLASH
RH / From: KH354089 		$73.60 1
2K004 LR118811
SHIELD - SPLASH
LH / From: KH354089 		$73.60 1
2L126 STC1913
CAP - BLEED SCREW
From: HH000001
IN STOCK 		$5.90 2
2M032 LR091309
CALIPER BRAKE PAD MTG PARTS
Caliper Set / From: HH000001 / To: HH226514 		$26.27 2
2M032 LR086604
KIT - CALIPER BRAKE PAD MTG PARTS
Caliper Set / From: HH226515 		$29.47 2
14A382 LR083646
WIRE - BRAKE PAD WEAR WARNING
From: HH000001 		$39.56 1
14C022A LR091307
BRACKET - WIRING
From: HH000001 		$31.07 1
14C022B LR079314
BRACKET - WIRING CONNECTOR
From: HH000001 		$35.24 1
1125 LR083647
DISC - BRAKE - VENTED
349MM, For 18" Brakes, RH/LH / From: HH000001 		$194.09 2
2001 LR091308
BRAKE PADS - LESS SPRINGS
For 18" Brakes, Less Clips, Standard Performance / From: HH000001 		$272.62 1
2001 LR091568
BRAKE PADS - LESS SPRINGS
European Markets / Dealer Fit Only, For 18" Brakes, High Performance, Less Clips / From: HH000001 		$466.59 1
2208 LR015523
SCREW - BLEED
From: HH000001
IN STOCK 		$6.46 2
9069 LR015525
COVER - DUST
Boot / From: HH000001 		$23.72 2
19584 LR020053
GREASE - CHASSIS LUBRICATION
From: HH000001
IN STOCK 		$3.48 1
