Brake And Clutch Controls (All 6 Speed Manual Volvo M66, Halewood (Uk), Standard Foot Pedal Pad...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Brake And Clutch Controls (All 6 Speed Manual Volvo M66, Halewood (UK), Standard Foot Pedal Pad...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005345 NUT Enquire To Order
LR005345 NUT Enquire To Order
LR005345 NUT Enquire To Order
Photo Part No Description Price (each) Stock
XKB500170 SWITCH - STOP LIGHT Enquire To Order
LR032956 SWITCH - STOP LIGHT Enquire To Order
LR047598 SWITCH - STOP LIGHT Enquire To Order
Photo Part No Description Price (each) Stock
LR027627 PEDAL AND BRACKET Enquire To Order
LR117710 PEDAL AND BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR027628 PEDAL AND BRACKET Enquire To Order
LR061022 PEDAL AND BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR007254 PAD - PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
LR005273 PAD - PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
LR044439 CYLINDER - CLUTCH MASTER Enquire To Order
LR044440 CYLINDER - CLUTCH MASTER Enquire To Order
Photo Part No Description Price (each) Stock
LR000369 SWITCH - MULTIPLE FUNCTION Enquire To Order
Photo Part No Description Price (each) Stock
LR007255 PIN - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
XKB500180 SWITCH - SPEED CONTROL INHIBITOR Enquire To Order
LR032955 SWITCH - SPEED CONTROL INHIBITOR Enquire To Order
Photo Part No Description Price (each) Stock
LR003563 SWITCH - CLUTCH CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR024700 SPRING - CLUTCH PEDAL RETRACTING Enquire To Order
LR136412 SPRING - CLUTCH PEDAL RETRACTING Enquire To Order
Photo Part No Description Price (each) Stock
LR024698 SPRING - CLUTCH PEDAL RETRACTING Enquire To Order
LR136413 SPRING - CLUTCH PEDAL RETRACTING Enquire To Order
Photo Part No Description Price (each) Stock
LR040242 PEDAL - CLUTCH Enquire To Order
LR047592 PEDAL - CLUTCH Enquire To Order
LR072066 PEDAL - CLUTCH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027634 PEDAL - CLUTCH Enquire To Order
Photo Part No Description Price (each) Stock
LR040243 PEDAL - CLUTCH Enquire To Order
LR047593 PEDAL - CLUTCH Enquire To Order
LR072068 PEDAL - CLUTCH Enquire To Order
Photo Part No Description Price (each) Stock
LR027636 PEDAL - CLUTCH Enquire To Order
View All

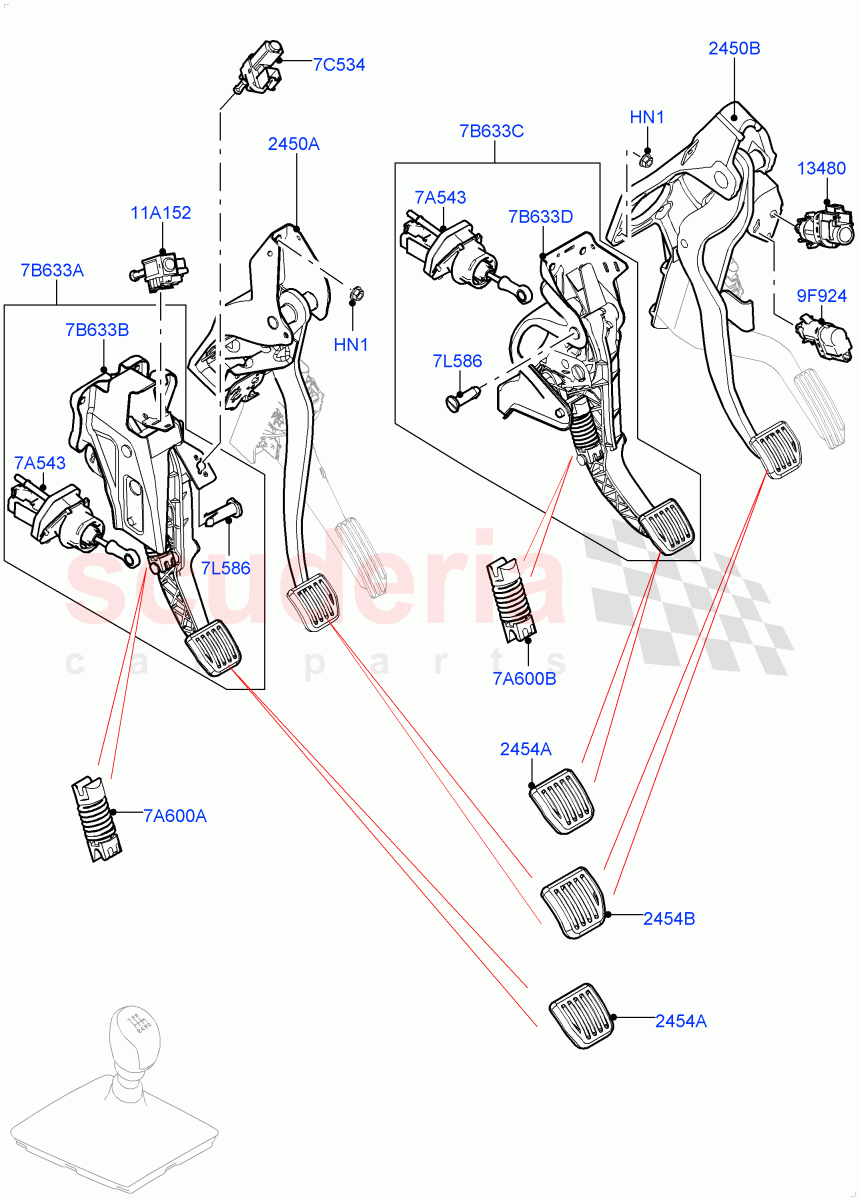

Brake And Clutch Controls (All 6 Speed Manual Volvo M66, Halewood (UK), Standard Foot Pedal Pad Design) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR005345
NUT
LHD / Clutch, Hexagonal Head, M8 		- 4 Enquire
HN1 LR005345
NUT
RHD / Clutch, Hexagonal Head, M8 		- 3 Enquire
HN1 LR005345
NUT
Brake, Hexagonal Head, M8 		- 5 Enquire
7A543 LR044439
CYLINDER - CLUTCH MASTER
LHD 		- 1 Enquire
7A543 LR044440
CYLINDER - CLUTCH MASTER
RHD 		- 1 Enquire
7A600A LR024700
SPRING - CLUTCH PEDAL RETRACTING
LHD / Clutch Pedal / To: FH999999 		- 1 Enquire
7A600A LR136412
SPRING - CLUTCH PEDAL RETRACTING
LHD / Clutch Pedal / From: GH000001 		- 1 Enquire
7A600B LR024698
SPRING - CLUTCH PEDAL RETRACTING
RHD / Clutch Pedal / To: FH999999 		- 1 Enquire
7A600B LR136413
SPRING - CLUTCH PEDAL RETRACTING
RHD / Clutch Pedal / From: GH000001 		- 1 Enquire
7B633A LR040242
PEDAL - CLUTCH
LHD / With Clutch Master Cylinder / To: DH762114 		- 1 Enquire
7B633A LR047592
PEDAL - CLUTCH
LHD / With Clutch Master Cylinder / From: DH762115 / To: FH999999 		- 1 Enquire
7B633A LR072066
PEDAL - CLUTCH
LHD / With Clutch Master Cylinder / From: GH000001 / To: KH335708 		- 1 Enquire
7B633A LR137624
PEDAL - CLUTCH
LHD / With Clutch Master Cylinder / From: KH335709 		- 1 Enquire
7B633B LR027634
PEDAL - CLUTCH
LHD / Less Clutch Master Cylinder 		- 1 Enquire
7B633C LR040243
PEDAL - CLUTCH
RHD / With Clutch Master Cylinder / To: DH762114 		- 1 Enquire
7B633C LR047593
PEDAL - CLUTCH
RHD / With Clutch Master Cylinder / From: DH762115 / To: FH999999 		- 1 Enquire
7B633C LR072068
PEDAL - CLUTCH
RHD / With Clutch Master Cylinder / From: GH000001 		- 1 Enquire
7B633D LR027636
PEDAL - CLUTCH
RHD / Less Clutch Master Cylinder, Less Spring 		- 1 Enquire
7C534 LR000369
SWITCH - MULTIPLE FUNCTION
Starter - Stop/Start System 		- 1 Enquire
7L586 LR007255
PIN - LOCKING 		- 1 Enquire
9F924 XKB500180
SWITCH - SPEED CONTROL INHIBITOR
Inhibitor Switch Speed Control / To: CH606043 		- 1 Enquire
9F924 LR032955
SWITCH - SPEED CONTROL INHIBITOR
Inhibitor Switch Speed Control / From: CH606044 / To: DH999999 		- 1 Enquire
11A152 LR003563
SWITCH - CLUTCH CONTROL 		- 1 Enquire
2450A LR027627
PEDAL AND BRACKET
LHD / Brake / To: JH999999 		- 1 Enquire
2450A LR117710
PEDAL AND BRACKET
LHD / Brake / From: KH000001 		- 1 Enquire
2450B LR027628
PEDAL AND BRACKET
RHD / Brake / To: CH599999 		- 1 Enquire
2450B LR061022
PEDAL AND BRACKET
RHD / Brake, Brake Pedal / From: CH600000 		- 1 Enquire
2454A LR007254
PAD - PEDAL
Standard Foot Pedal Pad Design / Clutch Pedal 		- 1 Enquire
2454B LR005273
PAD - PEDAL
Standard Foot Pedal Pad Design / Brake Pedal 		- 1 Enquire
13480 XKB500170
SWITCH - STOP LIGHT
Stop Lamp / To: CH606043 		- 1 Enquire
13480 LR032956
SWITCH - STOP LIGHT
Stop Lamp / From: CH606044 / To: DH999999 		- 1 Enquire
13480 LR047598
SWITCH - STOP LIGHT
Inhibitor Switch Speed Control, Stop Lamp / From: EH000001 		- 1 Enquire
