Name: Front Brake Pipes (RHD, Halewood (UK)) ((V) TODH999999)
Rating: 5.0 (1 reviews)

View All

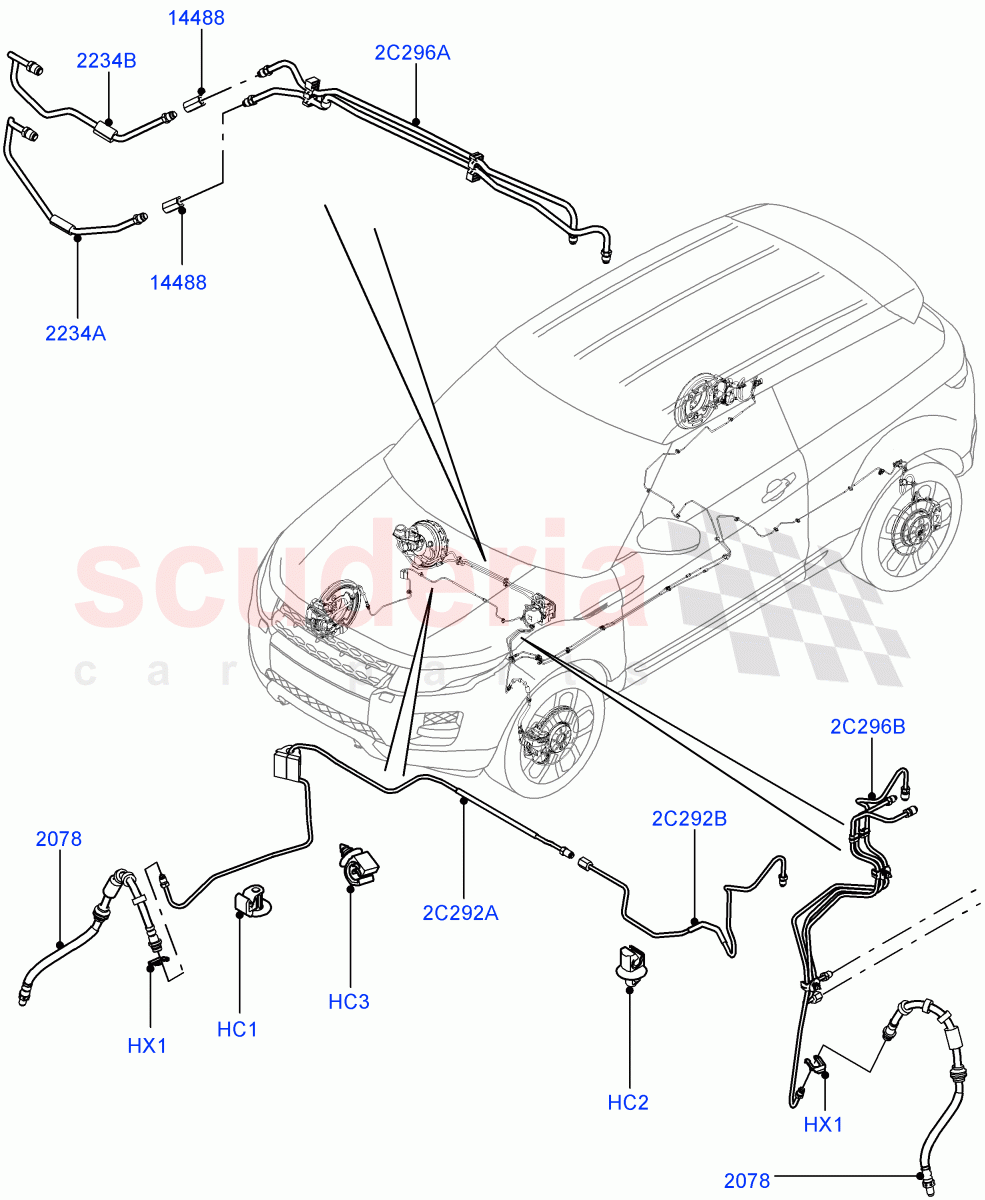

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000084	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000061	CLIP	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC100530	CLIP	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000062	RING - RETAINING	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002600	CONNECTOR - 3-WAY	$14.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005261	TUBE - BRAKE - NYLON	$25.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005262	TUBE - BRAKE - NYLON	$25.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024462	TUBE - BRAKE	$56.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024463	TUBE - BRAKE	$46.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008789	KIT - BRAKE TUBES	$49.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002939	PIPE - BRAKE	$53.84	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR000084	CLIP	LR000084 CLIP 4.5-4.8 X M5, Single	$0.63	2
HC2	LR000061	CLIP	LR000061 CLIP 4.8 X 8 X 4, Single	$0.50	1
HC3	SYC100530	CLIP IN STOCK	SYC100530 CLIP Single IN STOCK	$2.08	1
HX1	LR000062	RING - RETAINING	LR000062 RING - RETAINING 13 X 1	$1.26	2
2C292A	LR024462	TUBE - BRAKE	LR024462 TUBE - BRAKE RH, Modulator To Brake Hose, Outer	$56.34	1
2C292B	LR024463	TUBE - BRAKE	LR024463 TUBE - BRAKE RH, Inner, Modulator To Brake Hose	$46.10	1
2C296A	LR008789	KIT - BRAKE TUBES	LR008789 KIT - BRAKE TUBES	$49.79	1
2C296B	LR002939	PIPE - BRAKE	LR002939 PIPE - BRAKE	$53.84	1
2078	LR024470	HOSE - BRAKE	LR024470 HOSE - BRAKE Flexible, To Caliper / To: DH718193	$35.95	2
2078	LR045439	HOSE - BRAKE	LR045439 HOSE - BRAKE Flexible, RH/LH, To Caliper / From: DH718194	$31.48	2
2234A	LR005261	TUBE - BRAKE - NYLON	LR005261 TUBE - BRAKE - NYLON Master Cylinder Primary	$25.07	1
2234B	LR005262	TUBE - BRAKE - NYLON	LR005262 TUBE - BRAKE - NYLON Master Cylinder Secondary	$25.58	1
14488	LR002600	CONNECTOR - 3-WAY	LR002600 CONNECTOR - 3-WAY Brake Tube	$14.44	2

Front Brake Pipes (Rhd, Halewood (Uk)) ((V) Todh999999)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]
