Windscreen Wiper ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

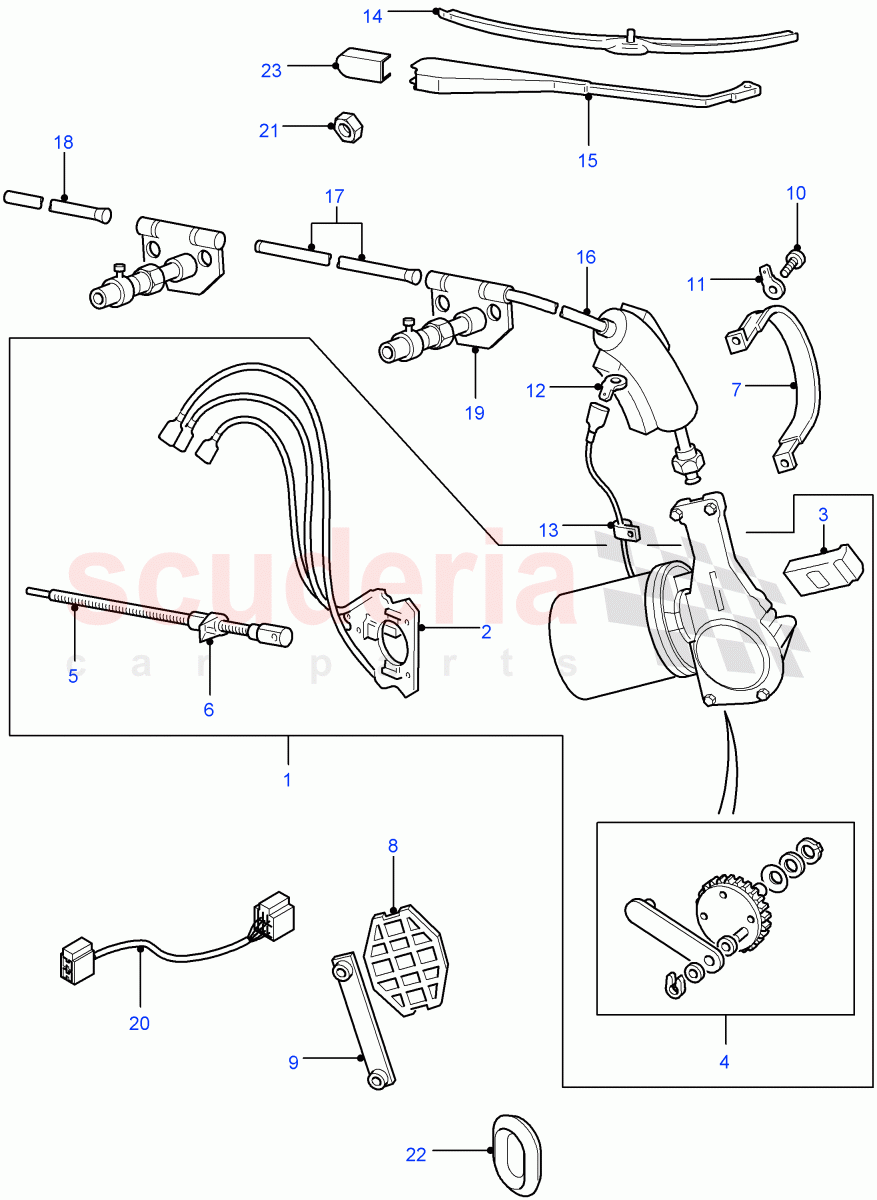

Land Rover Defender (2007-2016) - Windscreen Wiper ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DLB500170	MOTOR - WIPER	Enquire	To Order
	LR041307	MOTOR - WIPER	Enquire	To Order
	LR055350	MOTOR - WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DLZ000010	BRUSH - WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	520160	SWITCH	Enquire	To Order
	LR057182	SWITCH - WIPER MTR REAR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DLW000020	LINKAGE - WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DLE000010	LINKAGE - WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DLY000010	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DLC500010	BRACKET - WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DKE000010	PAD - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC2607	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SE106161L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	505205	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC712	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	570351	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154774	BLADES - WIPER	Enquire	To Order
	LR154774	BLADES - WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DKB000061PMD	ARM - WIPER	Enquire	To Order
	DKB000051PMD	ARM - WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DOS000020	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DOS500040	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DOS500030	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DKU500010	HOUSING - WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YMQ000610	WIRE	Enquire	To Order
	LR016445	WIRE	Enquire	To Order
	LR060126	WIRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DLP500010	NUT - WIPER ARM PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYB000030	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058466	CAP - WIPER ARM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	DLB500170	MOTOR - WIPER	DLB500170 MOTOR - WIPER To: CA422647	-	1	Enquire
1	LR041307	MOTOR - WIPER	LR041307 MOTOR - WIPER From: CA422648 / To: DA440631	-	1	Enquire
1	LR055350	MOTOR - WIPER	LR055350 MOTOR - WIPER From: DA440632	-	1	Enquire
2	DLZ000010	BRUSH - WIPER MOTOR	DLZ000010 BRUSH - WIPER MOTOR	-	1	Enquire
3	520160	SWITCH	520160 SWITCH To: DA440631	-	1	Enquire
3	LR057182	SWITCH - WIPER MTR REAR WINDOW	LR057182 SWITCH - WIPER MTR REAR WINDOW From: DA440632	-	1	Enquire
4	DLW000020	LINKAGE - WIPER	DLW000020 LINKAGE - WIPER	-	1	Enquire
5	DLE000010	LINKAGE - WIPER	DLE000010 LINKAGE - WIPER	-	1	Enquire
6	DLY000010	SPACER	DLY000010 SPACER	-	1	Enquire
7	DLC500010	BRACKET - WIPER MOTOR	DLC500010 BRACKET - WIPER MOTOR	-	1	Enquire
8	DKE000010	PAD - RUBBER	DKE000010 PAD - RUBBER	-	1	Enquire
9	MTC2607	NUT - HEX.	MTC2607 NUT - HEX.	-	1	Enquire
10	SE106161L	SCREW	SE106161L SCREW M6 X 16MM	-	2	Enquire
11	505205	CONNECTOR	505205 CONNECTOR wiper earth	-	1	Enquire
12	STC712	CONNECTOR	STC712 CONNECTOR wiper earth	-	1	Enquire
13	570351	CLIP - CABLE	570351 CLIP - CABLE	-	1	Enquire
14	LR154774	BLADES - WIPER	LR154774 BLADES - WIPER 315mm / To: GA479883	-	2	Enquire
14	LR154774	BLADES - WIPER	LR154774 BLADES - WIPER 315mm / From: GA479884	-	2	Enquire
15	DKB000061PMD	ARM - WIPER	DKB000061PMD ARM - WIPER RHD	-	2	Enquire
15	DKB000051PMD	ARM - WIPER	DKB000051PMD ARM - WIPER LHD	-	2	Enquire
16	DOS000020	CLAMP	DOS000020 CLAMP motor to wheel box	-	1	Enquire
17	DOS500040	TUBE	DOS500040 TUBE intermediate section	-	1	Enquire
18	DOS500030	TUBE	DOS500030 TUBE wheel box to end	-	1	Enquire
19	DKU500010	HOUSING - WIPER MOTOR	DKU500010 HOUSING - WIPER MOTOR	-	2	Enquire
20	YMQ000610	WIRE	YMQ000610 WIRE windscreen wiper motor / To: 8A999999	-	1	Enquire
20	LR016445	WIRE	LR016445 WIRE windscreen wiper motor / From: 9A000001	-	1	Enquire
20	LR060126	WIRE	LR060126 WIRE With Engine Traction Control Brake / From: FA000001	-	1	Enquire
21	DLP500010	NUT - WIPER ARM PIVOT	DLP500010 NUT - WIPER ARM PIVOT	-	2	Enquire
22	DYB000030	PLUG	DYB000030 PLUG	-	1	Enquire
23	LR058466	CAP - WIPER ARM	LR058466 CAP - WIPER ARM	-	1	Enquire
