Land Rover Defender (2007-2016) - Harness-Chassis ((V) FROM7A000001)

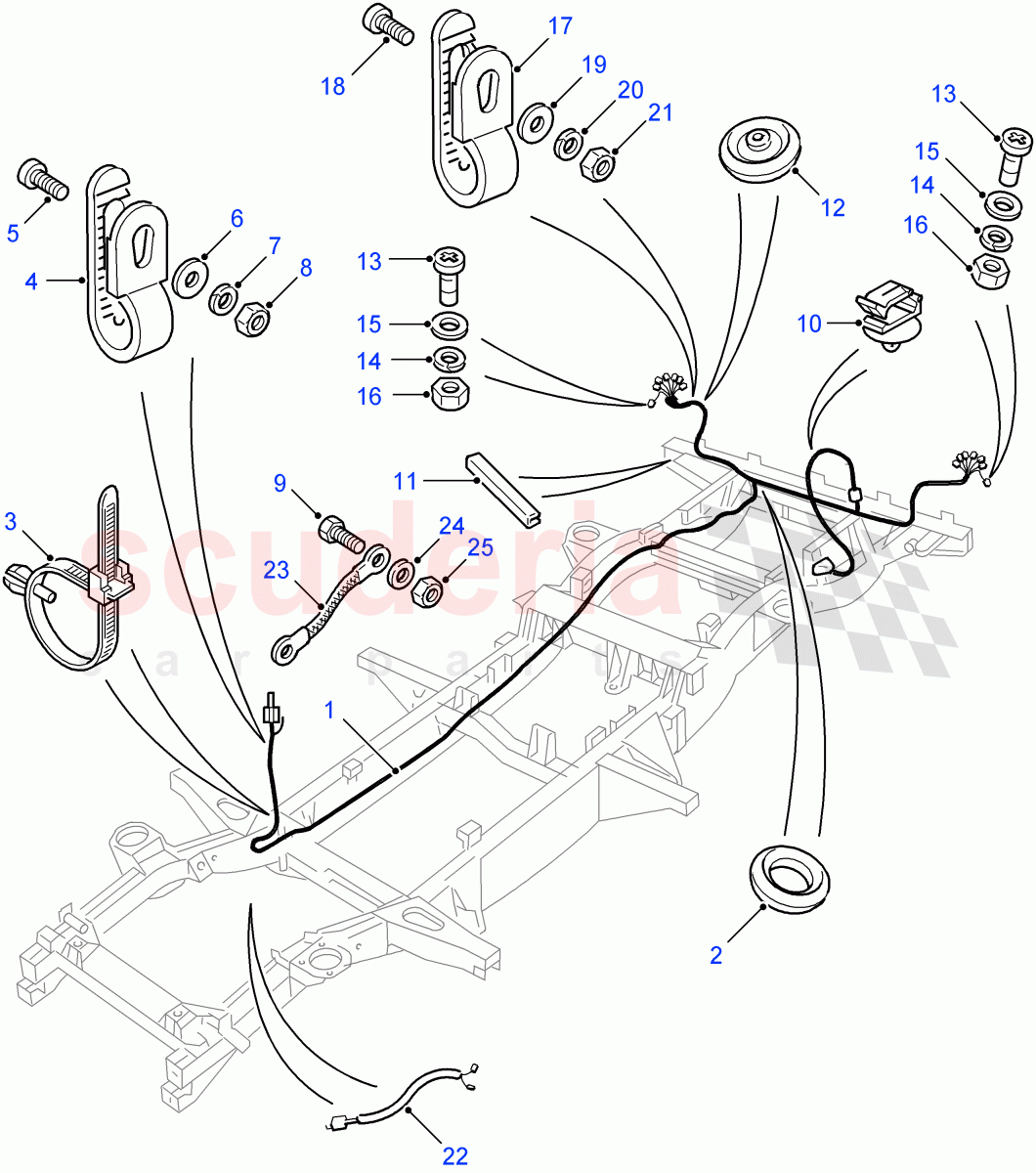

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	YNN501050	WIRING	Enquire	To Order
	YNN501060	WIRING	Enquire	To Order
	YNN501070	WIRING	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	589452	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AAU3686	STRAP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	C39377L	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SE105121L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ105001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL105001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NH105041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU1090L	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EDV500210	FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269257	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SE105121L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WM702001L	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA105001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NH105041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	C393771L	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SE105121L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ105001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL105001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NH105041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PRC8928	WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRC8681	LEAD - BONDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WC108057	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NH108041L	NUT - HEX.	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	YNN501050	WIRING	YNN501050 WIRING 90" Wheelbase / Chassis / To: 9A999999	-	1	Enquire
1	YNN501060	WIRING	YNN501060 WIRING 110" Wheelbase, Less Tailgate / Chassis / To: 9A999999	-	1	Enquire
1	YNN501070	WIRING	YNN501070 WIRING 130" Wheelbase / Chassis / To: 9A999999	-	1	Enquire
1	LR016440	WIRING	LR016440 WIRING 90" Wheelbase / Chassis / From: AA000001 / To: BA999999	-	1	Enquire
1	LR016442	WIRING	LR016442 WIRING 130" Wheelbase / Chassis / From: AA000001 / To: BA999999	-	1	Enquire
1	LR016441	WIRING	LR016441 WIRING 110" Wheelbase, With Lower Tailgate / Chassis / From: AA000001 / To: BA999999	-	1	Enquire
1	LR029653	WIRING - CHASSIS	LR029653 WIRING - CHASSIS 90" Wheelbase / Chassis / From: CA000001 / To: CA999999	-	1	Enquire
1	LR029655	WIRING - CHASSIS	LR029655 WIRING - CHASSIS 110" Wheelbase, With Lower Tailgate / Chassis / From: CA000001 / To: CA999999	-	1	Enquire
1	LR029656	WIRING - CHASSIS	LR029656 WIRING - CHASSIS 110" Wheelbase, With High Capacity Tailgate / Chassis / From: CA000001	-	1	Enquire
1	LR029657	WIRING - CHASSIS	LR029657 WIRING - CHASSIS 130" Wheelbase / Chassis / From: CA000001	-	1	Enquire
1	LR044233	WIRING - CHASSIS	LR044233 WIRING - CHASSIS 90" Wheelbase / Chassis / From: DA000001	-	1	Enquire
1	LR044234	WIRING - CHASSIS	LR044234 WIRING - CHASSIS 110" Wheelbase, Less Tailgate / Chassis / From: DA000001	-	1	Enquire
2	589452	GROMMET	589452 GROMMET 7 x 53mm, Black, cable	-	1	Enquire
3	AAU3686	STRAP - CABLE	AAU3686 STRAP - CABLE 6.5mm hole, 8.0 x 155mm	-	2	Enquire
4	C39377L	CLIP	C39377L CLIP 4.0/12.0mm, Adjustable, Plastic, White.	-	1	Enquire
5	SE105121L	SCREW	SE105121L SCREW M5 x 12, Pan Head	-	1	Enquire
6	WJ105001L	WASHER	WJ105001L WASHER M5, oversize, Plain	-	1	Enquire
7	WL105001L	WASHER	WL105001L WASHER M5, retaining	-	1	Enquire
8	NH105041L	NUT - HEX.	NH105041L NUT - HEX. M5	-	1	Enquire
9	FA108202	SCREW	FA108202 SCREW M8	-	1	Enquire
10	AFU1090L	CLIP - CABLE	AFU1090L CLIP - CABLE 8mm hole	-	3	Enquire
11	EDV500210	FINISHER	EDV500210 FINISHER	-	2	Enquire
12	269257	GROMMET	269257 GROMMET 6 x 33.5mm, Black, cable	-	1	Enquire
13	SE105121L	SCREW	SE105121L SCREW M5 x 12, Pan Head	-	2	Enquire
14	WM702001L	WASHER - SPRING	WM702001L WASHER - SPRING 3/16 dia, Square	-	2	Enquire
15	WA105001L	WASHER	WA105001L WASHER M5, Plain, Standard	-	2	Enquire
16	NH105041L	NUT - HEX.	NH105041L NUT - HEX. M5	-	2	Enquire
17	C393771L	CLIP	C393771L CLIP 11.0/20.0mm, Adjustable, Black, Plastic	-	1	Enquire
18	SE105121L	SCREW	SE105121L SCREW M5 x 12, Pan Head	-	1	Enquire
19	WJ105001L	WASHER	WJ105001L WASHER M5, oversize, Plain	-	1	Enquire
20	WL105001L	WASHER	WL105001L WASHER M5, retaining	-	1	Enquire
21	NH105041L	NUT - HEX.	NH105041L NUT - HEX. M5	-	1	Enquire
22	PRC8928	WIRING	PRC8928 WIRING overtemp switch to chassis harness / To: BA999999	-	1	Enquire
23	RRC8681	LEAD - BONDING	RRC8681 LEAD - BONDING	-	1	Enquire
24	WC108057	WASHER	WC108057 WASHER M8	-	1	Enquire
25	NH108041L	NUT - HEX.	NH108041L NUT - HEX. Hexagonal Head, M8	-	1	Enquire
