Land Rover Defender (2007-2016) - Reflectors, Fog Lamp & Reverse Lamp ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

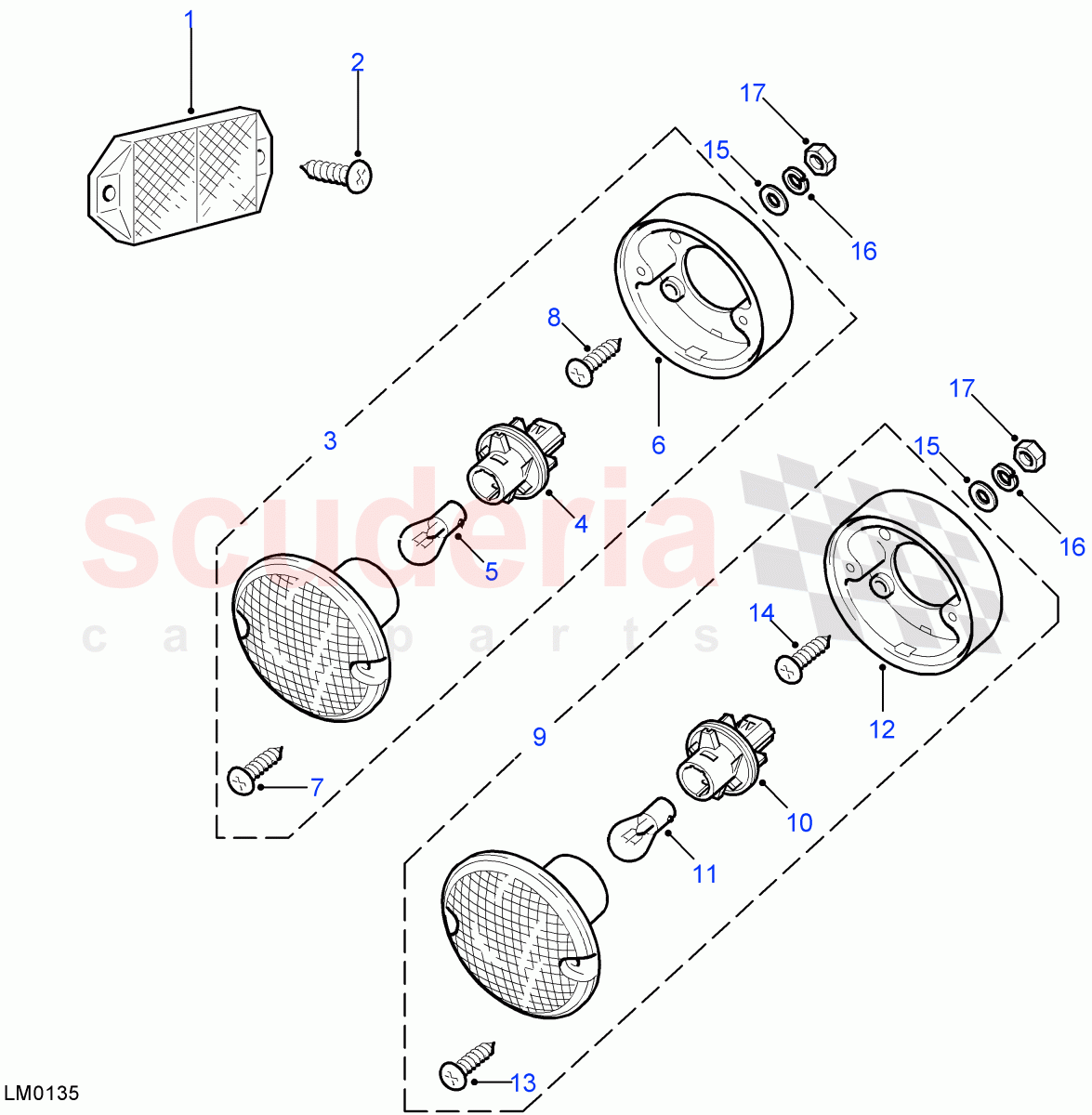

Reflectors, Fog Lamp & Reverse Lamp ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 XFF100071
REFLECTOR - REAR
rectangular, Self Adhesive 		$28.96 2
2 PYP500140
SCREW
No 8 x 1/2, Self Tapping
IN STOCK 		$0.74 4
3 XFE500010
LAMP - FOG - REAR
12V / To: DA430964 		$36.39 1
3 LR048201
LAMP - FOG - REAR
12V / From: DA430965
IN STOCK 		$100.11 1
4 XBP100180
HOLDER - BULB
21W 		$9.75 1
5 264591
BULB
12V 		$3.71 1
6 AMR3850
PLINTH 		$16.25 1
7 DA606059L
SCREW - SELF-TAPPING 		$3.70 2
8 SE105161L
SCREW
M5 x 16, Pan Head, recessed 		$2.39 2
9 XFD500010
LAMP - REVERSING
12V / To: DA430964 		$37.64 1
9 LR048202
LAMP - REVERSING
12V / From: DA430965
IN STOCK 		$100.11 1
10 XBP100180
HOLDER - BULB
21W 		$9.75 1
11 264591
BULB
12V 		$3.71 1
12 AMR3850
PLINTH 		$16.25 1
13 DA606059L
SCREW - SELF-TAPPING 		$3.70 2
14 SE105161L
SCREW
M5 x 16, Pan Head, recessed 		$2.39 2
15 WA105001L
WASHER
M5, Plain, Standard 		$1.78 4
16 WL105001L
WASHER
M5, retaining 		$1.82 4
17 NH105041L
NUT - HEX.
M5 		$4.04 4
