Relays And Fuses ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Relays And Fuses ((V) FROM7A000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YQH000120 COVER - FUSE BOX $12.25 To Order
LR021817 COVER - ADDITIONAL FUSE BOX $35.37 To Order
Photo Part No Description Price (each) Stock
YQH10004L COVER - FUSE BOX $12.75 To Order
Photo Part No Description Price (each) Stock
YQE000180 BOX - FUSE $138.59 To Order
LR021818 BOX - FUSE $175.52 To Order
Photo Part No Description Price (each) Stock
YQH10002L COVER - FUSE BOX $12.95 To Order
Photo Part No Description Price (each) Stock
STC1757 FUSIBLE LINK $7.28 To Order
STC1758 FUSIBLE LINK $7.28 To Order
STC1759 FUSIBLE LINK $6.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RTC4497 FUSE $1.38 To Order
RTC4498 FUSE $1.43 To Order
RTC4501 FUSE $2.89 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AFU3017L FUSE $0.62 To Order
Photo Part No Description Price (each) Stock
YMZ100990 WIRING $130.72 To Order
Photo Part No Description Price (each) Stock
YWB500220 RELAY $21.57 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
YWB500220 RELAY $21.57 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
YWB500210 RELAY $16.17 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
PRC6796 RELAY $91.81 To Order
Photo Part No Description Price (each) Stock
YYP500200 SCREW $0.45 To Order
View All

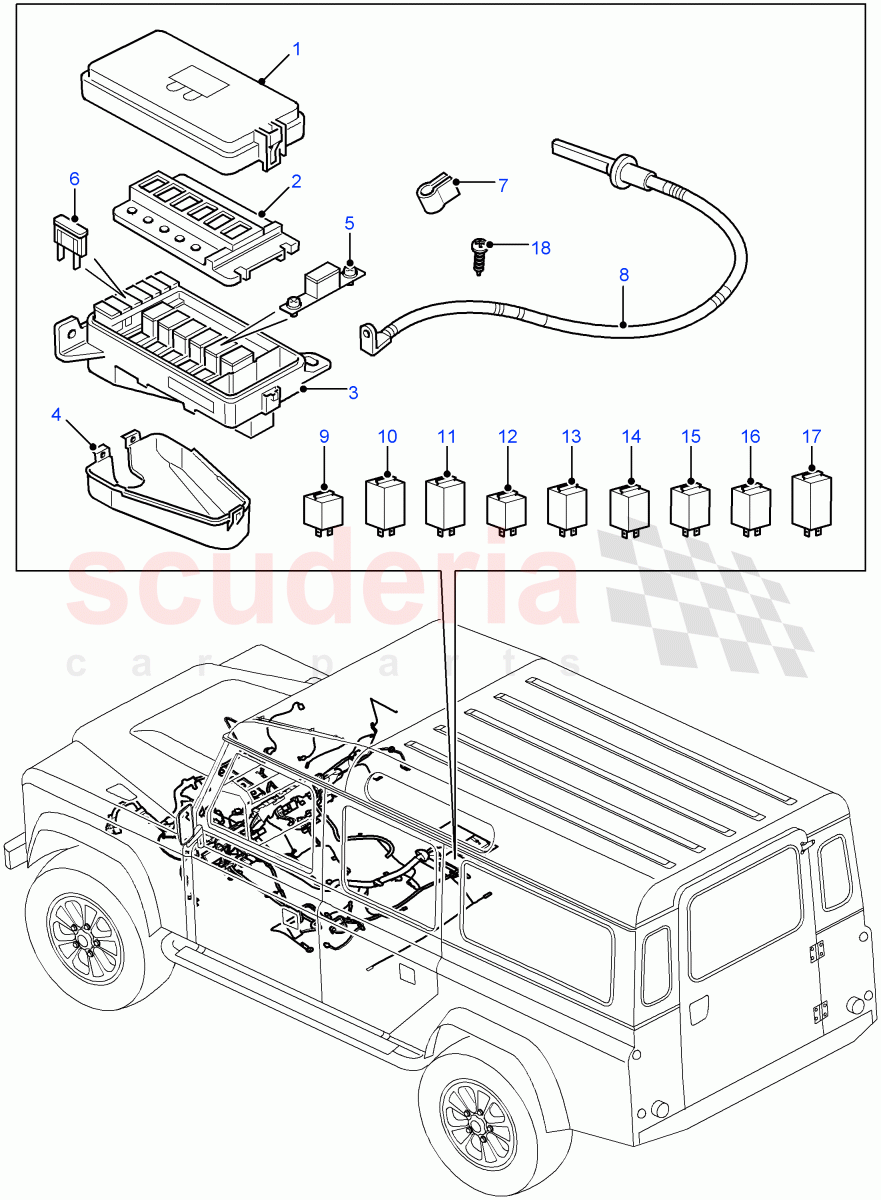

Relays And Fuses ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 YQH000120
COVER - FUSE BOX
top / To: AA999999 		$12.25 1
1 LR021817
COVER - ADDITIONAL FUSE BOX
top / From: BA000001 		$35.37 1
2 YQH10004L
COVER - FUSE BOX
Inner 		$12.75 1
3 YQE000180
BOX - FUSE
To: AA999999 		$138.59 1
3 LR021818
BOX - FUSE
From: BA000001 		$175.52 1
4 YQH10002L
COVER - FUSE BOX
bottom 		$12.95 1
5 STC1757
FUSIBLE LINK
100 AMP, Blue. 		$7.28 -
5 STC1758
FUSIBLE LINK
60 AMP, Yellow 		$7.28 -
5 STC1759
FUSIBLE LINK
40 AMP, Green 		$6.82 -
5 STC1760
FUSIBLE LINK
30 AMP, Pink. 		$7.28 -
6 RTC4497
FUSE
5 AMP, Automatic, Standard 		$1.38 -
6 RTC4498
FUSE
7.5 AMP, Automatic, standard. 		$1.43 -
6 RTC4501
FUSE
10 AMP, Automatic, Standard 		$2.89 -
6 RTC4503
FUSE
15 AMP, Automatic, standard. 		$4.24 -
6 RTC4504
FUSE
20 AMP, Automatic, standard. 		$1.57 -
7 AFU3017L
FUSE 		$0.62 1
8 YMZ100990
WIRING 		$130.72 1
9 YWB500220
RELAY
ABS pump, Grey 		$21.57 1
10 YWB500060
RELAY
Black With White Stripe, Main 		$11.56 1
11 YWB500060
RELAY
Black With White Stripe, Starter 		$11.56 1
12 YWB500220
RELAY
Glow Plug, Grey 		$21.57 1
13 YWB500060
RELAY
Air Con Clutch, Black With White Stripe 		$11.56 1
14 YWB500060
RELAY
Black With White Stripe, Cooling Fan 		$11.56 1
15 YWB500210
RELAY
Accessory, Black, REAR WIPER 		$16.17 1
16 YWB500060
RELAY
Black With White Stripe, Heated Front Screen 		$11.56 1
17 PRC6796
RELAY
front screen-timer, Grey 		$91.81 1
18 YYP500200
SCREW
Secures The Power Leads 		$0.45 -
