Name: Battery And Mountings ((V) FROM7A000001)
Rating: 4.1 (1 reviews)

View All

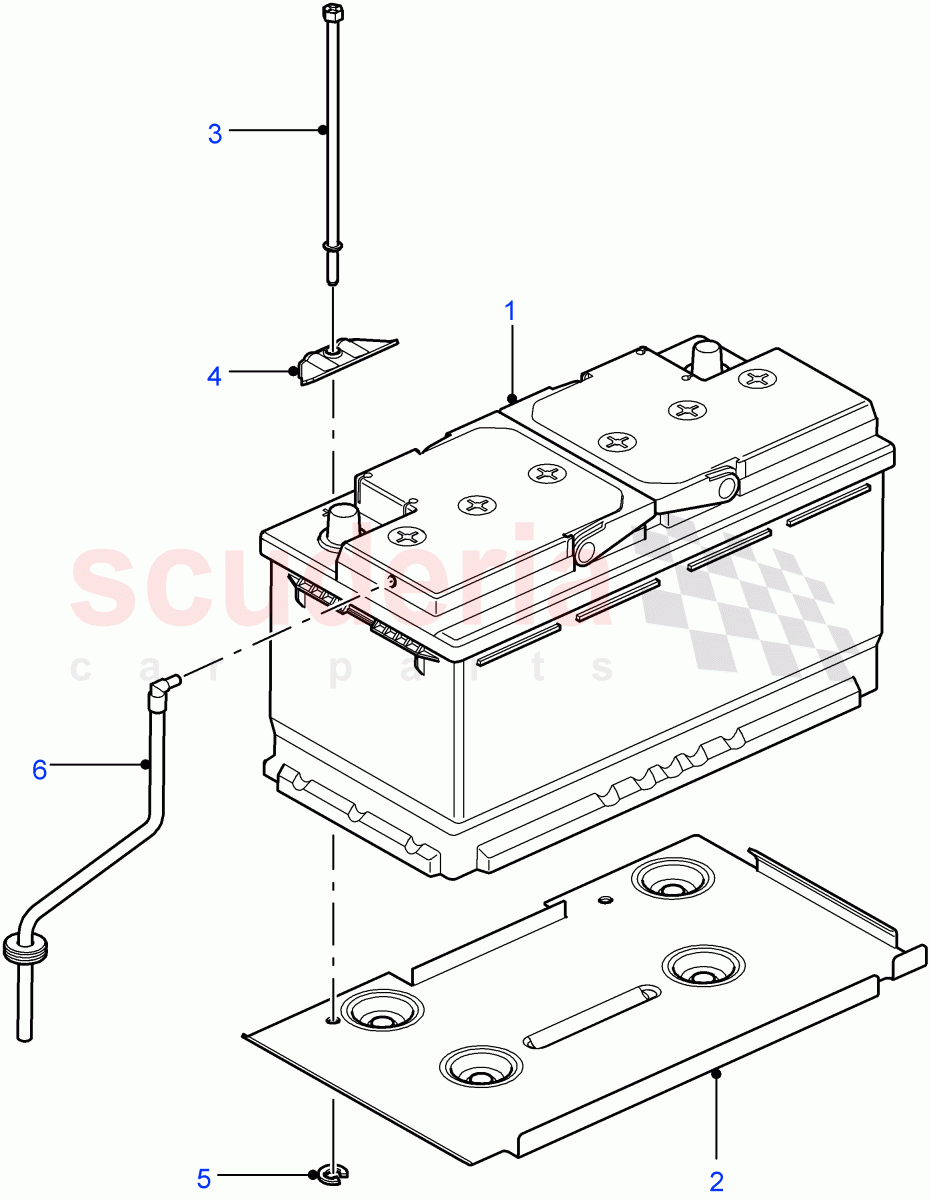

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YJC500060	TRAY - BATTERY	$80.18	To Order

Photo	Part No	Description	Price (each)	Stock
	YJH500020	BOLT - BATTERY CLAMP	$10.68	To Order

Photo	Part No	Description	Price (each)	Stock
	YYF500020	WASHER - SPRING	$1.36	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	YGD500160	BATTERY - UN2794	YGD500160 BATTERY - UN2794 Flooded Battery, Varta / To: 9A999999	$258.30	1
1	LR018680	BATTERY	LR018680 BATTERY Flooded Battery, Varta / From: AA000001 / To: AA999999	$278.98	1
1	LR030212	BATTERY	LR030212 BATTERY Flooded Battery, Varta / From: BA000001 / To: CA555554	$276.98	1
1	LR038341	BATTERY	LR038341 BATTERY Flooded Battery / From: CA555555	$266.34	1
2	YJC500060	TRAY - BATTERY	YJC500060 TRAY - BATTERY	$80.18	1
3	YJH500020	BOLT - BATTERY CLAMP	YJH500020 BOLT - BATTERY CLAMP 190MM	$10.68	2
4	YJF000010	CLAMP	YJF000010 CLAMP To: 8A999999	$24.83	1
4	LR009109	CLAMP	LR009109 CLAMP From: 9A000001	$17.88	1
5	YYF500020	WASHER - SPRING	YYF500020 WASHER - SPRING	$1.36	2
6	YGJ500050	TUBE - VENTILATION	YGJ500050 TUBE - VENTILATION Battery Venting / To: BA406788	$4.21	1
6	LR031919	TUBE - VENTILATION	LR031919 TUBE - VENTILATION Battery Venting / From: BA406789	$13.44	1

Battery And Mountings ((V) From7A000001)

Land Rover Defender (2007-2016)
