Land Rover Defender (2007-2016) - Relays And Fuses ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PRC4412 FUSE $2.13 To Order
Photo Part No Description Price (each) Stock
HAM4301L HOLDER - FUSE $2.66 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
AMR2341 RELAY $44.84 To Order
LR057366 RELAY $89.00 To Order
Photo Part No Description Price (each) Stock
YWT500050 RELAY - DIRECTION INDICATOR $87.09 To Order
LR040106 RELAY - DIRECTION INDICATOR $21.83 To Order
YWT10002L RELAY - DIR. INDIC./ FLASHER SWITCH $62.98 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
YWB500060 RELAY $11.56 To Order
Photo Part No Description Price (each) Stock
AMR1088 RELAY $21.52 To Order
Photo Part No Description Price (each) Stock
RTC4497 FUSE $1.38 To Order
RTC4498 FUSE $1.43 To Order
RTC4501 FUSE $2.89 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YQS500380 LABEL - FUSE IDENTIFICATION $2.27 To Order
YQS500390 LABEL - FUSE IDENTIFICATION $2.34 To Order
YQS500350 LABEL - FUSE IDENTIFICATION $2.30 To Order
...and 3 more part variants. See table on right for more details.
View All

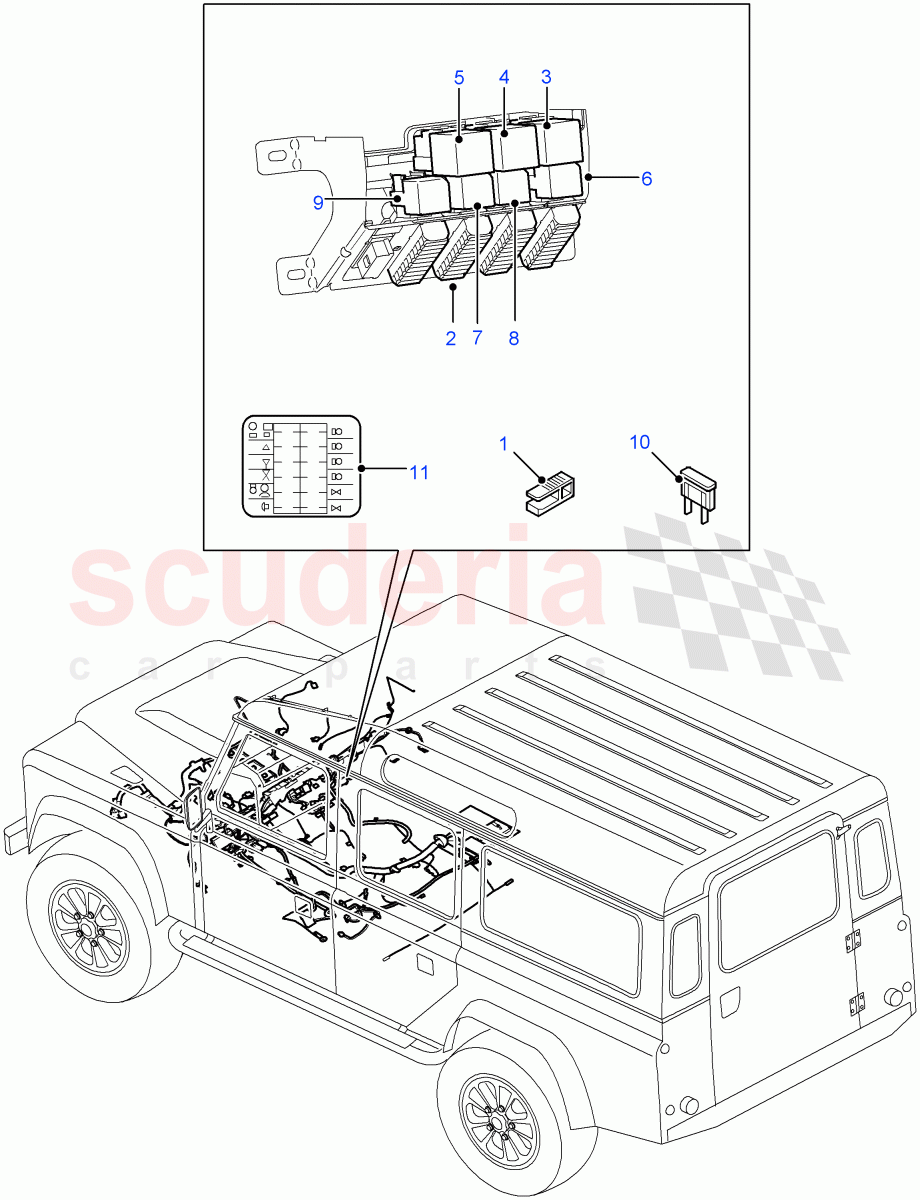

Relays And Fuses ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 PRC4412
FUSE 		$2.13 1
2 HAM4301L
HOLDER - FUSE 		$2.66 4
3 YWB500060
RELAY
Black With White Stripe 		$11.56 1
4 AMR2341
RELAY
WIPER RELAY / To: DA443234 		$44.84 1
4 LR057366
RELAY
WIPER RELAY / From: DA443235 		$89.00 1
5 YWT500050
RELAY - DIRECTION INDICATOR
FLASHER UNIT / To: BA999999 		$87.09 1
5 LR040106
RELAY - DIRECTION INDICATOR
FLASHER UNIT / From: CA000001 / To: DA999999 		$21.83 1
5 YWT10002L
RELAY - DIR. INDIC./ FLASHER SWITCH
FLASHER UNIT / From: EA000001 		$62.98 1
6 YWB500060
RELAY
Black With White Stripe, Headlamp 		$11.56 1
7 YWB500060
RELAY
Black With White Stripe, Heated Rear Window 		$11.56 1
8 YWB500060
RELAY
Black With White Stripe, window lift 		$11.56 1
9 AMR1088
RELAY
Brown, twin make 		$21.52 1
10 RTC4497
FUSE
5 AMP, Automatic, Standard 		$1.38 -
10 RTC4498
FUSE
7.5 AMP, Automatic, standard. 		$1.43 -
10 RTC4501
FUSE
10 AMP, Automatic, Standard 		$2.89 -
10 RTC4503
FUSE
15 AMP, Automatic, standard. 		$4.24 -
10 RTC4504
FUSE
20 AMP, Automatic, standard. 		$1.57 -
11 YQS500380
LABEL - FUSE IDENTIFICATION
RHD / To: 7A752618 		$2.27 1
11 YQS500390
LABEL - FUSE IDENTIFICATION
LHD / To: 7A752618 		$2.34 1
11 YQS500350
LABEL - FUSE IDENTIFICATION
From: 7A752619 / To: 9A768127 		$2.30 1
11 LR012449
LABEL - FUSE IDENTIFICATION
From: 9A768128 / To: BA999999 		$2.15 1
11 LR031689
LABEL - FUSE IDENTIFICATION
From: CA000001 / To: CA999999 		$2.15 1
11 LR041904
LABEL - FUSE IDENTIFICATION
From: DA000001 		$2.05 1
