Name: Lamps - Front - Side And Indicator ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

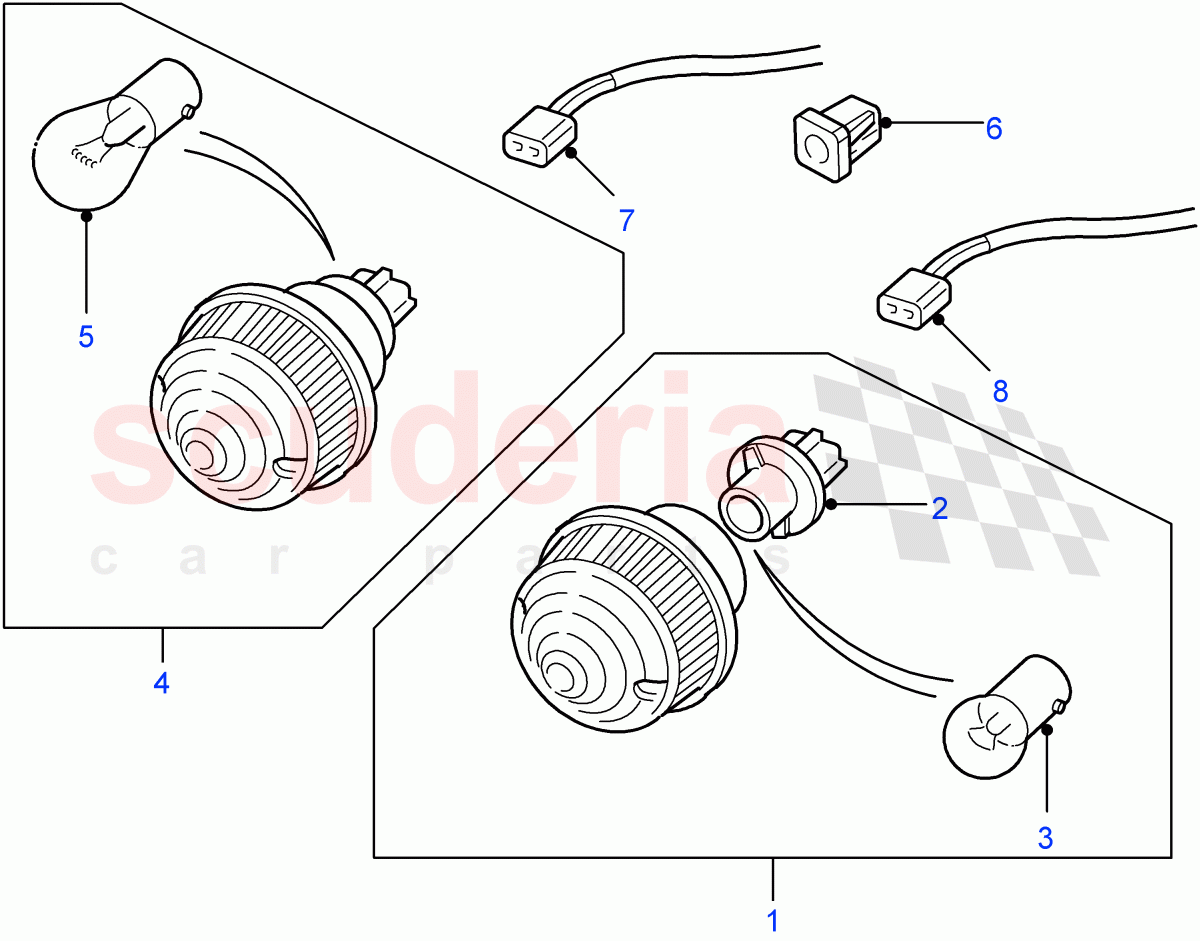

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XBP100180	HOLDER - BULB	$9.75	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	XZQ100190	BULB	$6.35	To Order

Photo	Part No	Description	Price (each)	Stock
	RTC3745	NUT - LOCKING	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1188	WIRING	$37.45	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1188	WIRING	$37.45	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	XBD500050	LAMP - SIDE MARKER	XBD500050 LAMP - SIDE MARKER 12V / To: DA430964	$19.94	2
1	LR048189	LAMP - SIDE MARKER	LR048189 LAMP - SIDE MARKER 12V / From: DA430965	$76.81	2
2	XBP100180	HOLDER - BULB	XBP100180 HOLDER - BULB 21W	$9.75	2
3	570822	BULB	570822 BULB side lamp / From: MA940005	$4.66	2
3	10211	BULB	10211 BULB sidelight	$4.21	2
4	XBD500040	LAMP - FLASHER	XBD500040 LAMP - FLASHER 12V, Amber / To: DA430964	$21.99	2
4	XBD500010	LAMP - FRONT FLASHER	XBD500010 LAMP - FRONT FLASHER 12V, Clear / To: DA430730	$49.37	2
4	LR047798	LAMP - FRONT FLASHER	LR047798 LAMP - FRONT FLASHER 12V, Clear / From: DA430731	$77.88	2
4	LR048188	LAMP - FLASHER	LR048188 LAMP - FLASHER 12V, Amber / From: DA430965	$76.81	2
5	XZQ100190	BULB	XZQ100190 BULB 12V, Amber, indicator / From: 3A000000	$6.35	2
6	RTC3745	NUT - LOCKING	RTC3745 NUT - LOCKING	$1.27	8
7	STC1188	WIRING	STC1188 WIRING	$37.45	4
8	STC1188	WIRING	STC1188 WIRING	$37.45	4

Lamps - Front - Side And Indicator ((V) From7A000001)

Land Rover Defender (2007-2016)
