Windscreen Washer ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Windscreen Washer ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

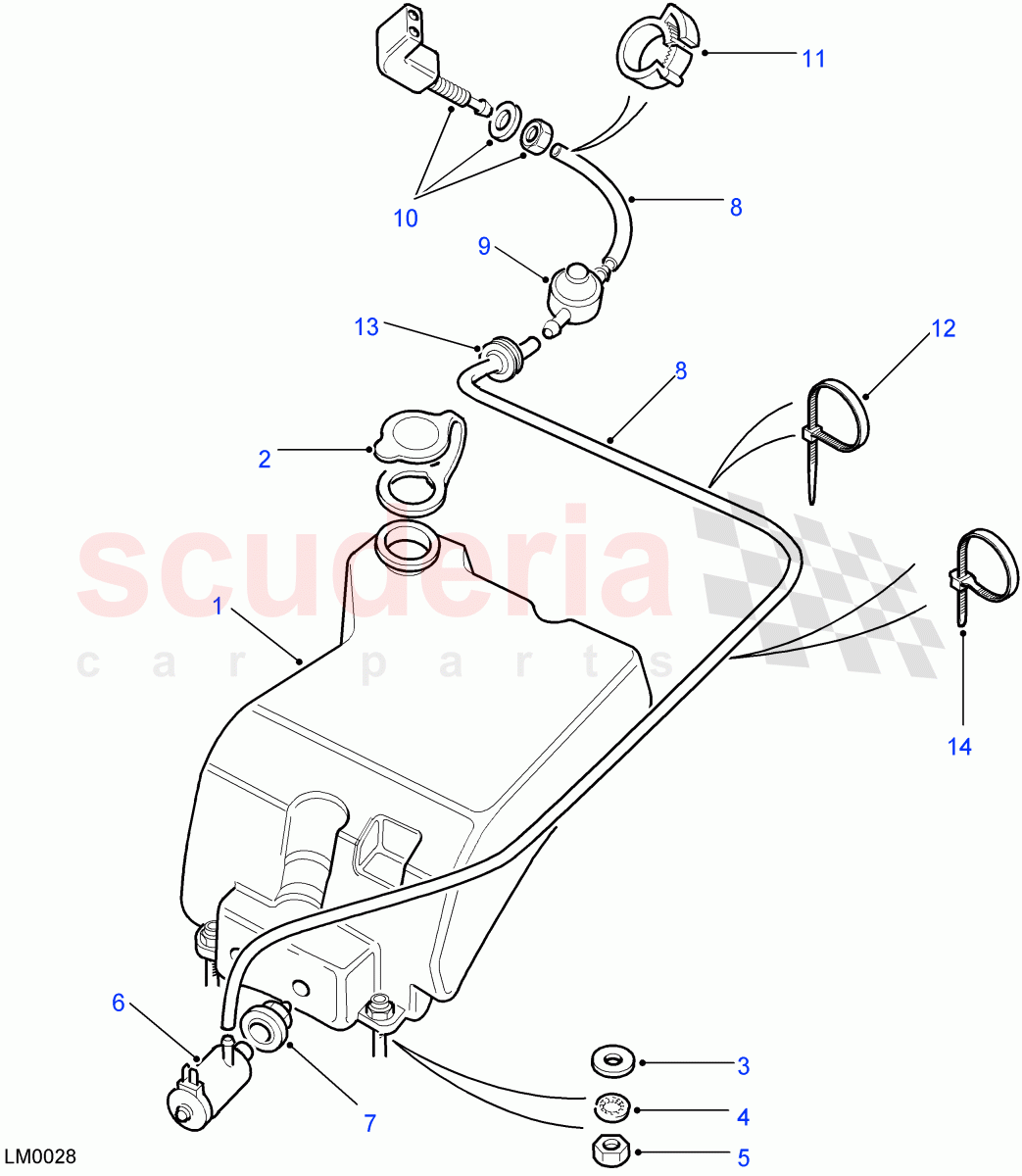

Windscreen Washer ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 DMB500130
RESERVOIR - WINDSHIELD WASHER 		$64.54 1
2 DMG10001L
CAP - WASHER RESERVOIR 		$11.66 1
3 AFU1069
WASHER 		$0.85 3
4 WF600041L
WASHER - LOCKING 		$0.59 3
5 FN106046
NUT - HEX.
M6
IN STOCK 		$1.45 3
6 DMC100550
HEADLAMP WASHER 		$62.93 1
7 AFU4506
GROMMET - WINDSHIELD WASHER PUMP 		$5.31 1
8 DNC101720
HOSE - WATER 		$77.89 -
9 AMR6676
VALVE - NON RETURN
4MM 		$6.63 1
10 AMR3025
JET - SPRAYER
twin nozzle / To: BA500001 		$17.64 1
10 LR034309
JET
twin nozzle / From: BA500002 / To: EA448481 		$25.39 1
10 LR061677
JET
twin nozzle / From: EA448482 		$15.90 1
11 AMR3012
CLIP - RETAINING 		$2.70 1
12 UKC6684L
STRAP - CABLE
3.5 x 150mm, Black, inside serated 		$0.59 3
13 AMR3550
GROMMET 		$3.93 1
14 YQR10016L
STRAP - CABLE
4.50MM, 4.6 x 165mm, 7mm hole 		$6.54 1
