Name: Vacuum Control And Air Injection (Solihull Plant Build, Vacuum Pump And Hoses) (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, LHD) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Vacuum Control And Air Injection (Solihull Plant Build, Vacuum Pump And Hoses) (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, LHD) ((V) FROMHA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Solihull Plant Build, Vacuum Pump And Hoses) (3.0 V6 Diesel, 8...

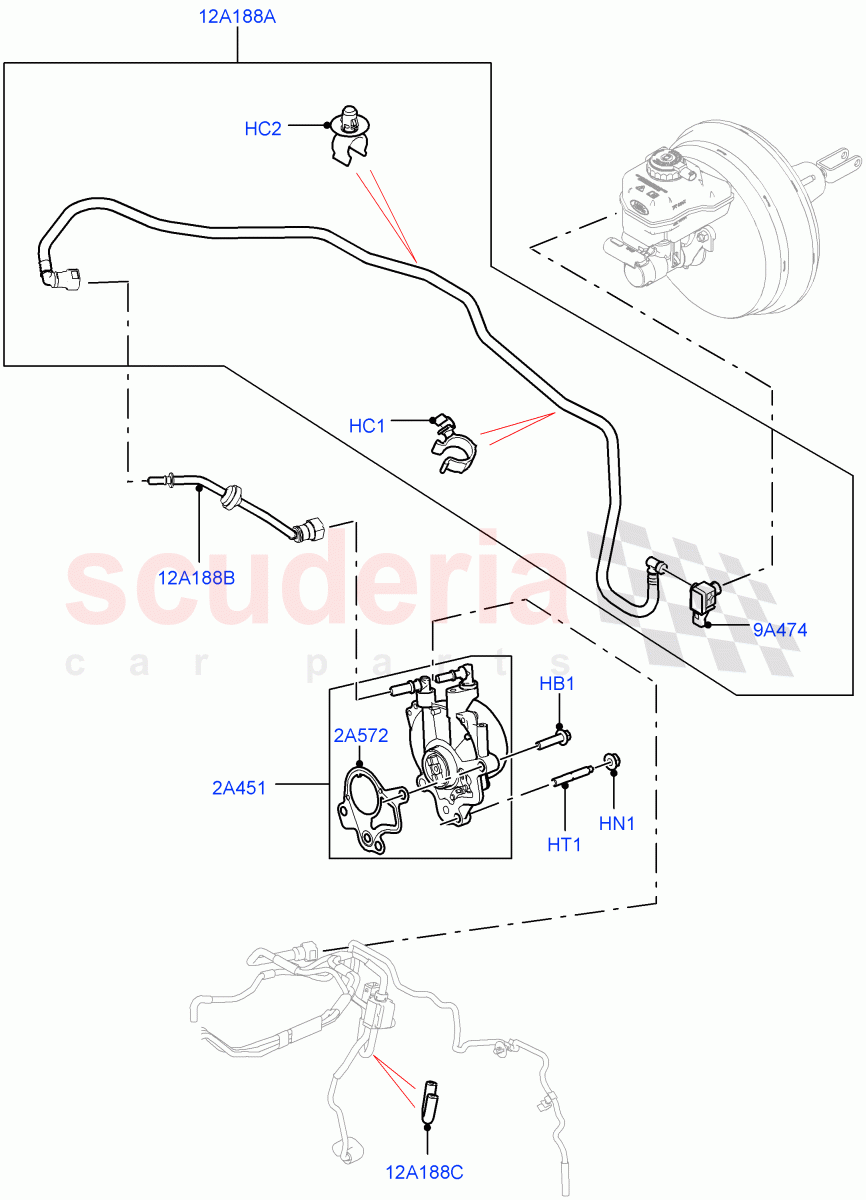

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR082782	BOLT - HEX.HEAD	$1.86	To Order
	LR110748	BOLT - HEX.HEAD	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087667	CLIP - SPECIAL	$7.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108042	NUT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	1331241	STUD	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096061	PUMP - VACUUM	$548.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096060	GASKET - VACUUM PUMP	$13.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR081631	SENSOR - VACUUM	$85.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081608	HOSE - VACUUM	$126.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048196	HOSE - VACUUM	$66.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075844	HOSE - VACUUM	$25.95	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR082782	BOLT - HEX.HEAD	LR082782 BOLT - HEX.HEAD M8 x 37MM / From: HA000001 / To: JA380537	$1.86	2
HB1	LR110748	BOLT - HEX.HEAD	LR110748 BOLT - HEX.HEAD M8 x 37MM / From: JA380538	$3.23	2
HC1	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double, To Vacuum Hose / From: HA000001	$2.27	1
HC2	LR087667	CLIP - SPECIAL	LR087667 CLIP - SPECIAL To Vacuum Hose / From: HA000001	$7.77	1
HN1	FN108042	NUT	FN108042 NUT M8 / From: HA000001	$1.34	1
HT1	1331241	STUD	1331241 STUD M8 X 15 + M8 X 35 / From: HA000001	$1.05	1
2A451	LR096061	PUMP - VACUUM	LR096061 PUMP - VACUUM From: HA000001	$548.64	1
2A572	LR096060	GASKET - VACUUM PUMP IN STOCK	LR096060 GASKET - VACUUM PUMP From: HA000001 IN STOCK	$13.99	1
9A474	LR081631	SENSOR - VACUUM	LR081631 SENSOR - VACUUM From: HA000001	$85.39	1
12A188A	LR081608	HOSE - VACUUM	LR081608 HOSE - VACUUM To Brake Booster / From: HA000001	$126.19	1
12A188B	LR048196	HOSE - VACUUM	LR048196 HOSE - VACUUM To Vacuum Pump / From: HA000001	$66.93	1
12A188C	LR075844	HOSE - VACUUM	LR075844 HOSE - VACUUM U-Type / From: HA000001	$25.95	1
