Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) Fromfa000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1225745 BOLT AND WASHER - HEX.HEAD $2.90 IN STOCK
Photo Part No Description Price (each) Stock
LR012201 BOLT $1.11 To Order
Photo Part No Description Price (each) Stock
LR009529 BOLT $3.85 IN STOCK
Photo Part No Description Price (each) Stock
1316028 BOLT $1.24 To Order
Photo Part No Description Price (each) Stock
4648959 SCREW $4.08 To Order
LR105436 BOLT - HEX.HEAD $0.86 To Order
Photo Part No Description Price (each) Stock
BYP500170 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR063123 SCREW $1.66 To Order
Photo Part No Description Price (each) Stock
LR063120 SCREW $2.27 To Order
Photo Part No Description Price (each) Stock
LR005786 SCREW $1.12 To Order
LR005786 SCREW $1.12 To Order
Photo Part No Description Price (each) Stock
LR078958 GASKET $17.79 To Order
Photo Part No Description Price (each) Stock
LR087708 CLAMP - EXHAUST $26.53 To Order
Photo Part No Description Price (each) Stock
LR087709 SENSOR - DIFFERENTIAL PRESSURE $214.73 To Order
Photo Part No Description Price (each) Stock
LR078917 TUBE - EGR VALVE TO EXHAUST MANIFLD $110.88 To Order
Photo Part No Description Price (each) Stock
LR136862 FILTER - EGR COOLER $61.85 To Order
Photo Part No Description Price (each) Stock
LR069681 EGR UNIT $995.22 To Order
Photo Part No Description Price (each) Stock
LR063058 TUBE - EXHAUST GAS RECIRCULATION $93.21 To Order
Photo Part No Description Price (each) Stock
LR063121 CLAMP - TUBE $17.46 To Order
Photo Part No Description Price (each) Stock
LR087707 SENSOR - EXHAUST GAS - TEMPERATURE $143.01 To Order
Photo Part No Description Price (each) Stock
LR063122 EGR UNIT $681.32 To Order
Photo Part No Description Price (each) Stock
LR078916 GASKET - EGR INLET $5.17 To Order
Photo Part No Description Price (each) Stock
LR078915 GASKET - EGR OUTLET $5.98 To Order
Photo Part No Description Price (each) Stock
LR075627 GASKET - EXHAUST MANIFOLD $20.19 To Order
View All

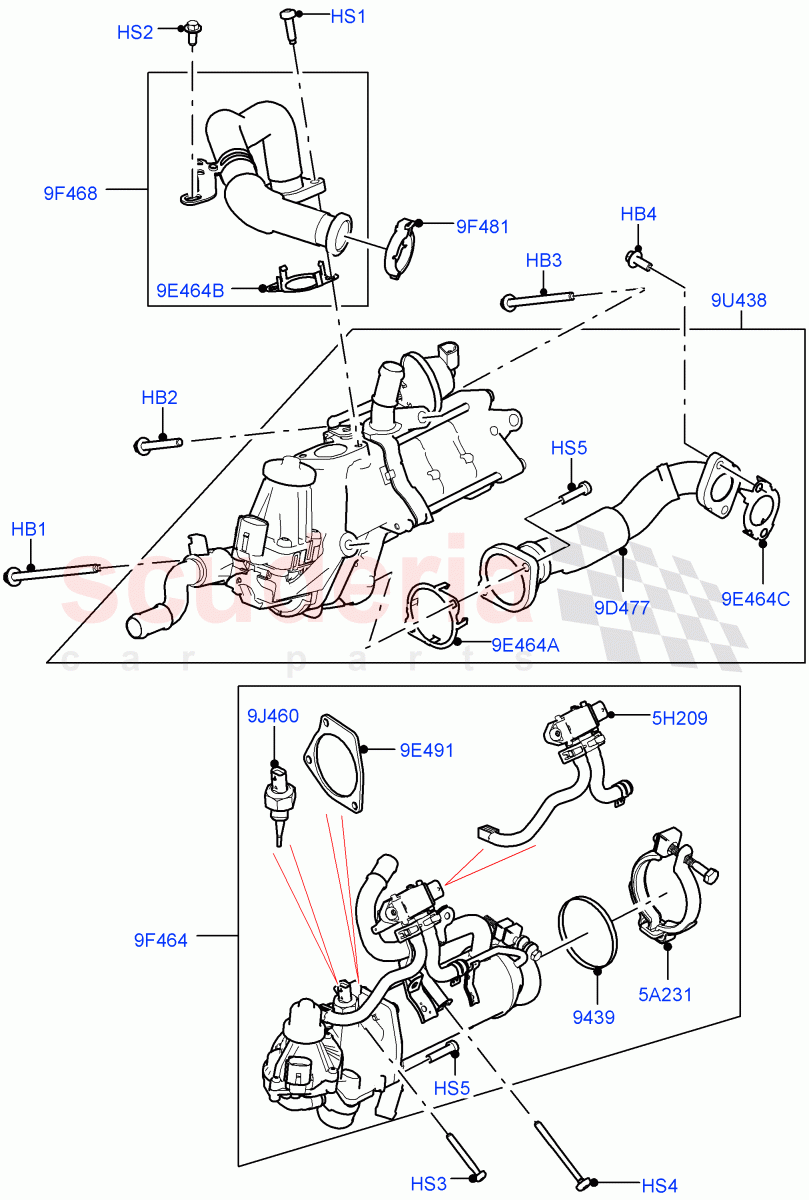

Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1225745
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 105MM / From: FA000001
IN STOCK 		$2.90 1
HB2 LR012201
BOLT
Hexagonal Head, M6 x 45MM / From: FA000001 		$1.11 1
HB3 LR009529
BOLT
M6 x 80MM / From: FA000001
IN STOCK 		$3.85 1
HB4 1316028
BOLT
Exhaust Manifold, M6 X 16MM / From: FA000001 		$1.24 2
HS1 4648959
SCREW
EGR Valve, M6 X 20MM, Torx / From: FA000001 / To: HA344508 		$4.08 2
HS1 LR105436
BOLT - HEX.HEAD
EGR Valve, M6 X 20MM, Torx / From: HA344509 		$0.86 2
HS2 BYP500170
SCREW
Hexagonal Head, M6 x 14MM / From: FA000001
IN STOCK 		$1.19 1
HS3 LR063123
SCREW
M6 x 50MM / From: FA000001 		$1.66 1
HS4 LR063120
SCREW
M6 x 70MM / From: FA000001 		$2.27 1
HS5 LR005786
SCREW
RH, EGR Unit, M6 x 25MM / From: FA000001 		$1.12 2
HS5 LR005786
SCREW
LH, EGR Cooler, M6 x 25MM / From: FA000001 		$1.12 4
5A231 LR087708
CLAMP - EXHAUST
EGR Inlet / From: FA000001 		$26.53 1
5H209 LR087709
SENSOR - DIFFERENTIAL PRESSURE
Exhaust Gas Pressure / From: FA000001 		$214.73 1
9D477 LR078917
TUBE - EGR VALVE TO EXHAUST MANIFLD
RH / From: FA000001 		$110.88 1
9E464A LR078916
GASKET - EGR INLET
RH, EGR Inlet, Located Between The EGR Valve And The EGR Tube / From: FA000001 		$5.17 1
9E464B LR078915
GASKET - EGR OUTLET
EGR Outlet / From: FA000001 		$5.98 1
9E464C LR075627
GASKET - EXHAUST MANIFOLD
RH, EGR Tube / From: FA000001 		$20.19 1
9E491 LR136862
FILTER - EGR COOLER
From: FA000001 		$61.85 1
9F464 LR069681
EGR UNIT
LH / From: FA000001 		$995.22 1
9F468 LR063058
TUBE - EXHAUST GAS RECIRCULATION
EGR Valve To Inlet Manifold / From: FA000001 		$93.21 1
9F481 LR063121
CLAMP - TUBE
EGR Tube / From: FA000001 		$17.46 1
9J460 LR087707
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature Sensor / From: FA000001 		$143.01 1
9U438 LR063122
EGR UNIT
RH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold / From: FA000001 		$681.32 1
9439 LR078958
GASKET
LH, EGR Inlet / From: FA000001 		$17.79 1
