Name: Exhaust Fluid Injection System (Injector and Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank) ((V) FROMGA000001)
Rating: 4.0 (1 reviews)

Exhaust Fluid Injection System (Injector and Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank) ((V) FROMGA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Fluid Injection System (Injector and Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid...

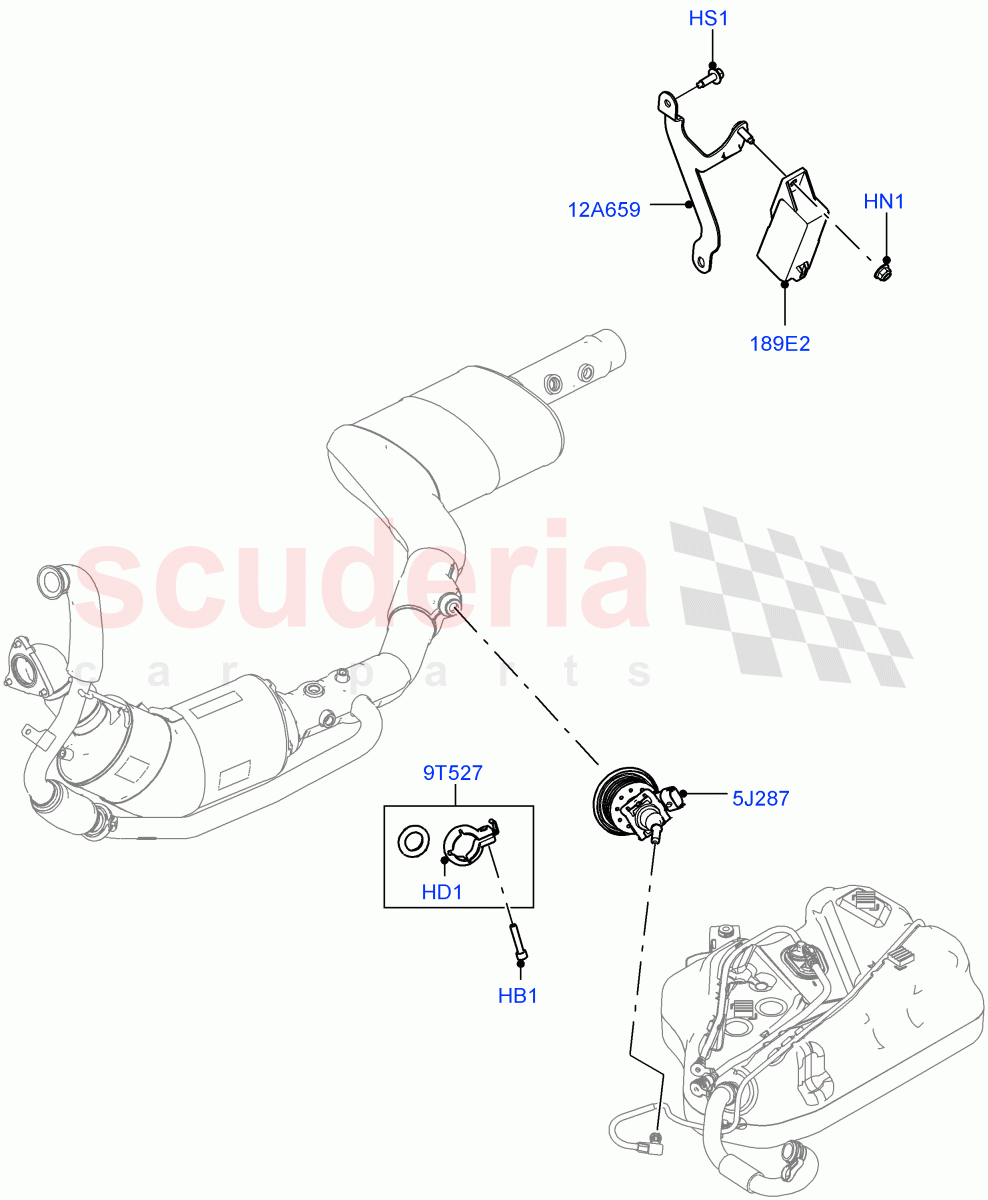

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR067041	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067042	CLAMP - TUBE	$3.54	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071241	CONTROL UNIT - AUXILIARY HEATER	$133.87	To Order
	LR117592	CONTROL UNIT - AUXILIARY HEATER	$145.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062819	INJECTOR - DIESEL EXHAUST FLUID	$220.88	To Order
	LR134710	INJECTOR - DIESEL EXHAUST FLUID	$257.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138592	kIT - INJECTOR REFIT	$22.34	IN STOCK
	LR138592	kIT - INJECTOR REFIT	$22.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062818	BRACKET - MODULE	$10.13	To Order
	LR125947	BRACKET - MODULE	$9.98	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR067041	SCREW	LR067041 SCREW Clamp, M5 x 25	$1.19	1
HD1	LR067042	CLAMP - TUBE	LR067042 CLAMP - TUBE	$3.54	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Control Module, Hexagonal Head, M6 IN STOCK	$0.61	1
HS1	RYG500190	SCREW IN STOCK	RYG500190 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$0.70	2
5J287	LR062819	INJECTOR - DIESEL EXHAUST FLUID	LR062819 INJECTOR - DIESEL EXHAUST FLUID To: LA580531	$220.88	1
5J287	LR134710	INJECTOR - DIESEL EXHAUST FLUID	LR134710 INJECTOR - DIESEL EXHAUST FLUID From: LA580532	$257.24	1
9T527	LR138592	kIT - INJECTOR REFIT IN STOCK	LR138592 kIT - INJECTOR REFIT Diesel Exhaust Fluid / To: LA580624 IN STOCK	$22.34	1
9T527	LR138592	kIT - INJECTOR REFIT IN STOCK	LR138592 kIT - INJECTOR REFIT Diesel Exhaust Fluid / From: LA580625 IN STOCK	$22.34	1
12A659	LR062818	BRACKET - MODULE	LR062818 BRACKET - MODULE To: JA999999	$10.13	1
12A659	LR125947	BRACKET - MODULE	LR125947 BRACKET - MODULE From: KA000001	$9.98	1
189E2	LR071241	CONTROL UNIT - AUXILIARY HEATER	LR071241 CONTROL UNIT - AUXILIARY HEATER Diesel Exhaust Fluid / To: JA504446	$133.87	1
189E2	LR117592	CONTROL UNIT - AUXILIARY HEATER	LR117592 CONTROL UNIT - AUXILIARY HEATER Diesel Exhaust Fluid / From: JA504447	$145.82	1
