Name: Emission Control - Crankcase (Solihull Plant Build, Engine Ventilation) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

Emission Control - Crankcase (Solihull Plant Build, Engine Ventilation) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Emission Control - Crankcase (Solihull Plant Build, Engine Ventilation) (3.0 V6 D Low MT ROW, 3.0...

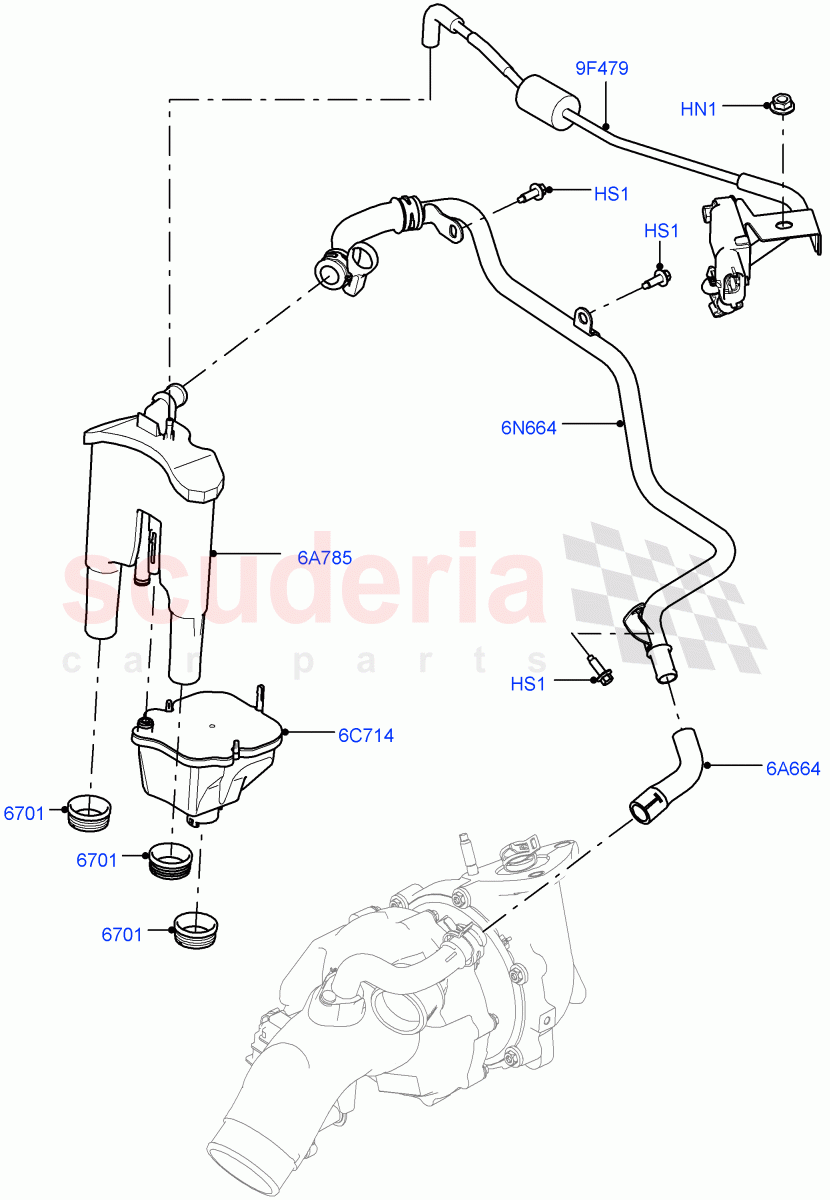

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR063049	NUT - HEX. - FLANGED	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	1337060	SEAL - OIL SEPARATOR	$6.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061987	HOSE - CRANKCASE VENTILATION	$86.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054999	SEPARATOR - OIL	$83.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013532	RESERVOIR - OIL SEPARATOR	$37.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062010	TUBE - CRANKCASE VENTILATION	$130.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063054	SENSOR - OIL	$117.06	To Order
	LR071232	SENSOR - OIL	$75.75	To Order
	LR082494	SENSOR - OIL	$134.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR063049	NUT - HEX. - FLANGED	LR063049 NUT - HEX. - FLANGED Crankcase Pressure Sensor / From: FA000001	$2.59	1
HS1	4364422	SCREW	4364422 SCREW M6 X 16MM / From: FA000001	$1.30	3
6A664	LR061987	HOSE - CRANKCASE VENTILATION	LR061987 HOSE - CRANKCASE VENTILATION Crankcase Ventilation, Lower / From: FA000001	$86.27	1
6A785	LR054999	SEPARATOR - OIL	LR054999 SEPARATOR - OIL From: FA000001	$83.38	1
6C714	LR013532	RESERVOIR - OIL SEPARATOR	LR013532 RESERVOIR - OIL SEPARATOR To Oil Separator / From: FA000001	$37.78	1
6N664	LR062010	TUBE - CRANKCASE VENTILATION	LR062010 TUBE - CRANKCASE VENTILATION Upper / From: FA000001	$130.54	1
9F479	LR063054	SENSOR - OIL	LR063054 SENSOR - OIL Crankcase Pressure Sensor / From: FA000001 / To: FA999999	$117.06	1
9F479	LR071232	SENSOR - OIL	LR071232 SENSOR - OIL Crankcase Pressure Sensor / From: GA000001 / To: GA999999	$75.75	1
9F479	LR082494	SENSOR - OIL	LR082494 SENSOR - OIL Crankcase Pressure Sensor / From: HA000001	$134.97	1
6701	1337060	SEAL - OIL SEPARATOR IN STOCK	1337060 SEAL - OIL SEPARATOR To Oil Separator / From: FA000001 IN STOCK	$6.39	3
