Name: Emission Control - Crankcase (Engine Ventilation) (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow)
Rating: 5.0 (1 reviews)

Emission Control - Crankcase (Engine Ventilation) (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Emission Control - Crankcase (Engine Ventilation) (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel...

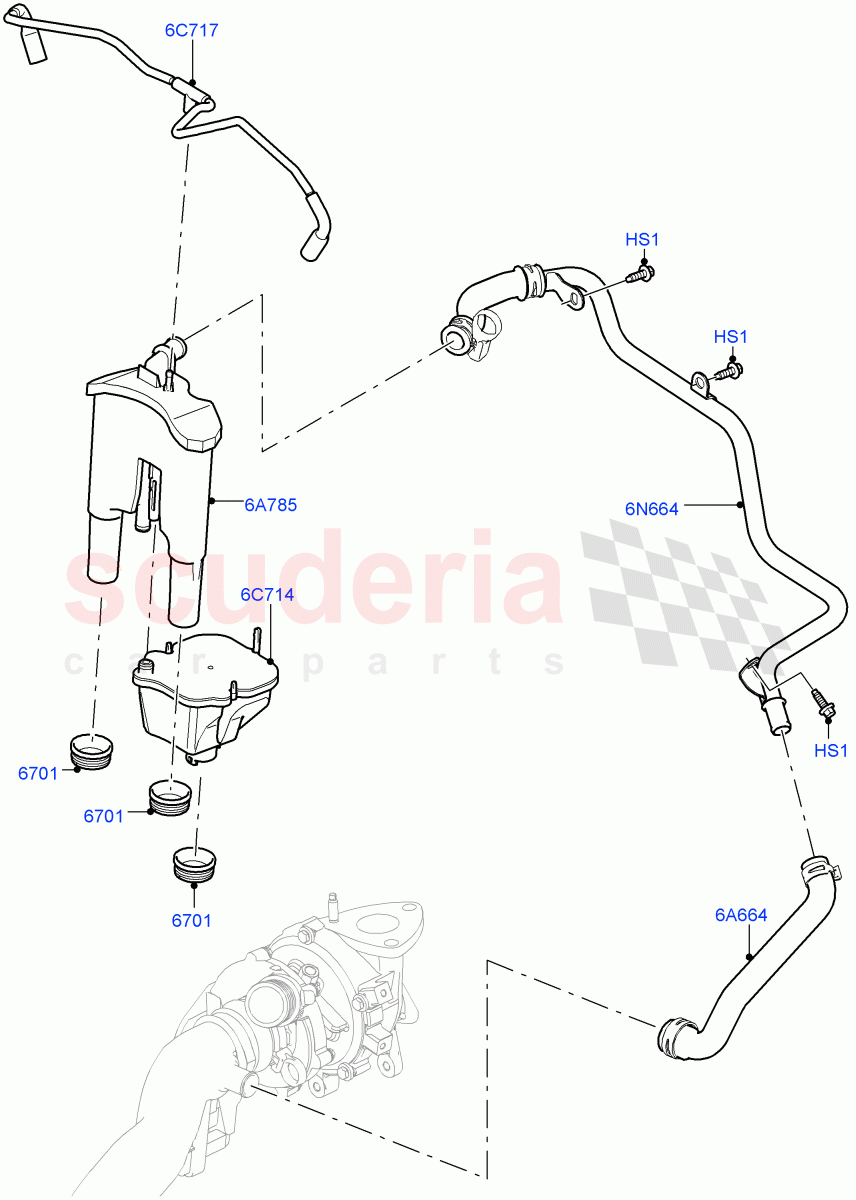

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	1337060	SEAL - OIL SEPARATOR	$6.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038611	HOSE - CRANKCASE VENTILATION	$25.14	To Order
	LR041906	HOSE - CRANKCASE VENTILATION	$56.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013287	SEPARATOR - OIL	$71.29	To Order
	LR054999	SEPARATOR - OIL	$83.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013532	RESERVOIR - OIL SEPARATOR	$37.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013531	PIPE - OIL SEPARATOR	$52.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050975	Tube - Crankcase Ventilation	Enquire	To Order
	LR051407	TUBE - CRANKCASE VENTILATION	$168.39	To Order
	LR057203	TUBE - CRANKCASE VENTILATION	$138.21	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	4364422	SCREW	4364422 SCREW M6 X 16MM	$1.30	3
6A664	LR038611	HOSE - CRANKCASE VENTILATION	LR038611 HOSE - CRANKCASE VENTILATION Engine Vent Hose / Crankcase Ventilation, Lower	$25.14	1
6A664	LR041906	HOSE - CRANKCASE VENTILATION	LR041906 HOSE - CRANKCASE VENTILATION Engine Vent Hose - Insulated Extrem / Crankcase Ventilation, Lower	$56.24	1
6A785	LR013287	SEPARATOR - OIL	LR013287 SEPARATOR - OIL To: EA143193	$71.29	1
6A785	LR054999	SEPARATOR - OIL	LR054999 SEPARATOR - OIL From: EA143194	$83.38	1
6C714	LR013532	RESERVOIR - OIL SEPARATOR	LR013532 RESERVOIR - OIL SEPARATOR To Oil Separator	$37.78	1
6C717	LR013531	PIPE - OIL SEPARATOR	LR013531 PIPE - OIL SEPARATOR 3.0L 24V DOHC V6 TC Diesel / To Oil Separator, Top	$52.64	1
6N664	LR050975	Tube - Crankcase Ventilation	LR050975 Tube - Crankcase Ventilation Upper / To: EA333332	-	1	Enquire
6N664	LR051407	TUBE - CRANKCASE VENTILATION	LR051407 TUBE - CRANKCASE VENTILATION Upper / From: EA333333 / To: EA999999	$168.39	1
6N664	LR057203	TUBE - CRANKCASE VENTILATION	LR057203 TUBE - CRANKCASE VENTILATION Upper / From: FA000001	$138.21	1
6701	1337060	SEAL - OIL SEPARATOR IN STOCK	1337060 SEAL - OIL SEPARATOR To Oil Separator IN STOCK	$6.39	3
