Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006708 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR049404 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR027995 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR011889 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4648959 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1331241 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR013619 GASKET - VACUUM PUMP Enquire To Order
LR077841 GASKET - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR031127 TUBE - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
LR048852 TUBE - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
LR044962 PUMP - VACUUM Enquire To Order
LR077839 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR048845 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR048850 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR048851 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM Enquire To Order
View All

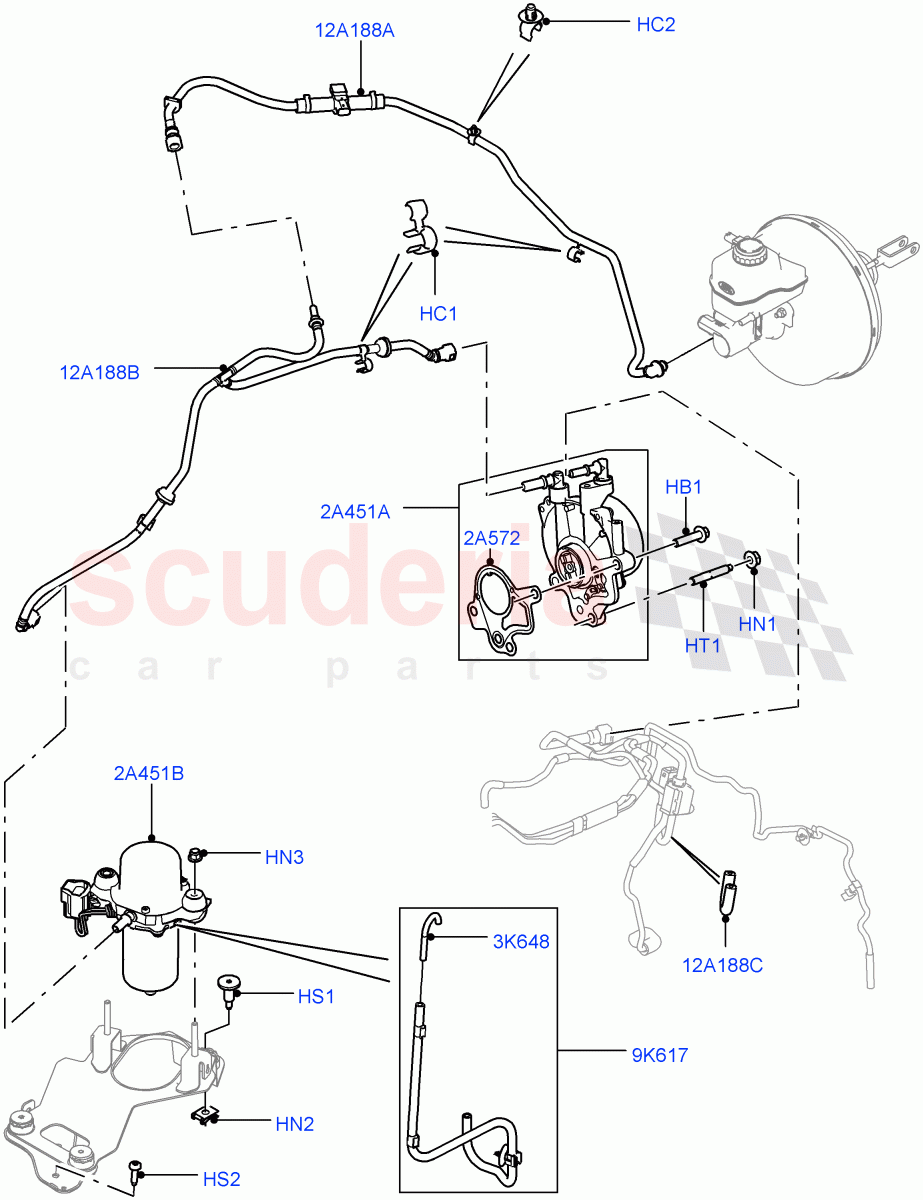

Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, LHD, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMFA000001, (V) TOGA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006708
BOLT
M8 x 55MM, Pump - Vacuum / From: EA000001 		- 2 Enquire
HC1 LR049401
CLIP - DOUBLE
Double, To Vacuum Hose / From: EA000001 		- 3 Enquire
HC2 LR049404
CLIP - SPECIAL
Single, To Vacuum Hose / From: EA000001 		- 1 Enquire
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: EA000001 		- 1 Enquire
HN2 LR027995
NUT
M6 X 0.7 - 4, Nut "U" Spring / From: EA000001 		- 3 Enquire
HN3 FY106046
NUT - HEX.
Auxiliary, Hexagonal Head, M6, Pump - Vacuum / From: EA000001 		- 2 Enquire
HS1 LR011889
SCREW
Bracket, M6 x 29MM, Torx / From: EA000001 		- 3 Enquire
HS2 4648959
SCREW
Bracket, M6 X 20MM, Torx / From: EA000001 		- 2 Enquire
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: EA000001 		- 1 Enquire
2A451A LR044962
PUMP - VACUUM
Main / From: EA000001 / To: GA243971 		- 1 Enquire
2A451A LR077839
PUMP - VACUUM
Main / From: GA243972 		- 1 Enquire
2A451B LR048845
PUMP - VACUUM
Auxiliary / From: EA000001 		- 1 Enquire
2A572 LR013619
GASKET - VACUUM PUMP
From: EA000001 / To: FA999999 		- 1 Enquire
2A572 LR077841
GASKET - VACUUM PUMP
From: GA000001 		- 1 Enquire
3K648 LR031127
TUBE - BREATHER
Top / From: EA000001 		- 1 Enquire
9K617 LR048852
TUBE - BREATHER
Complete / From: EA000001 		- 1 Enquire
12A188A LR048850
HOSE - VACUUM
Includes Vacuum Sensor, To Brake Booster / From: EA000001 		- 1 Enquire
12A188B LR048851
HOSE - VACUUM
To Vacuum Pump / From: EA000001 		- 1 Enquire
12A188C LR075844
HOSE - VACUUM
U-Type 		- 1 Enquire
